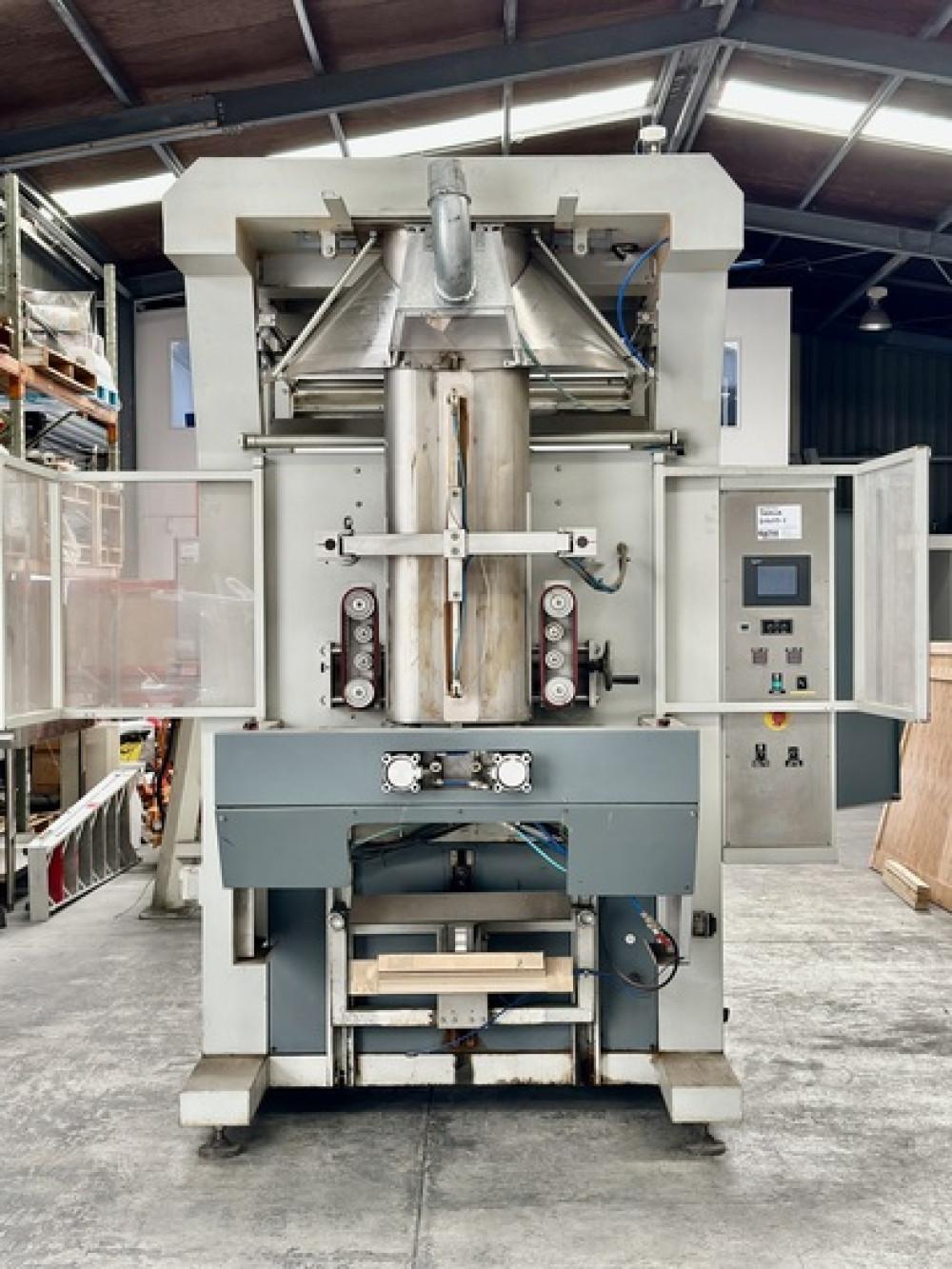

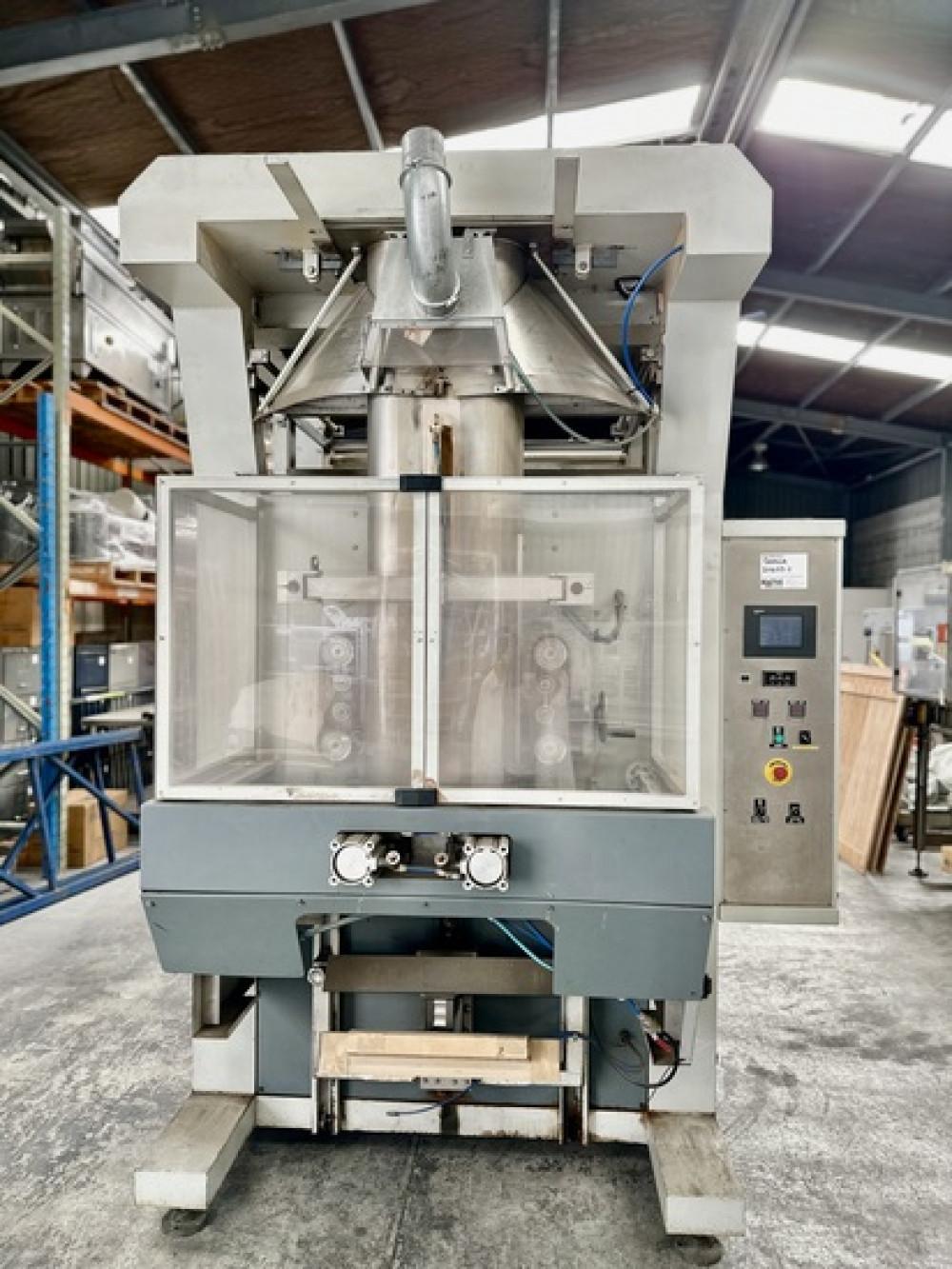

Vertical Form Fill & Seal Bagging Machine for 20-50kg Bags

A vertical form fill sealing machine is a type of automated assembly-line product packaging system, commonly used in the packaging industry for food and a wide variety of other products.

• Total weight: KG 2.500
• Max length: mm. 2990
• Max width: mm. 1950
• Max height (with weigher): mm. 4150
• Inlet tension: V 410
• Frequency: Hz 50
• Absorbed power: Kw 15
• Length of Vertical Seal: mm. 1000
• Length of Horizontal Seal: mm. 580
• Pneumatic Circuit Pressure: bar 8
• Air Consumption: NI/min. 600
• Noise level: dB 70
• 3 ph, 25amp
• pneumatic (requires compressed air connection), for making large 20-50 kg bags
• No filler included
• Forming tube widths (3 tubes available) – 200mm, 350mm and 420mm
• Horizontal seal bar 575mm. Vertical seal bar 780mm
• O’all dims 2300 mm x 2200 mm x 2850 mm H
