High Pressure Processing (HPP) System – 6,000 Bar

195054 - 1

Request a Quote

Specifications

Description

Key Features

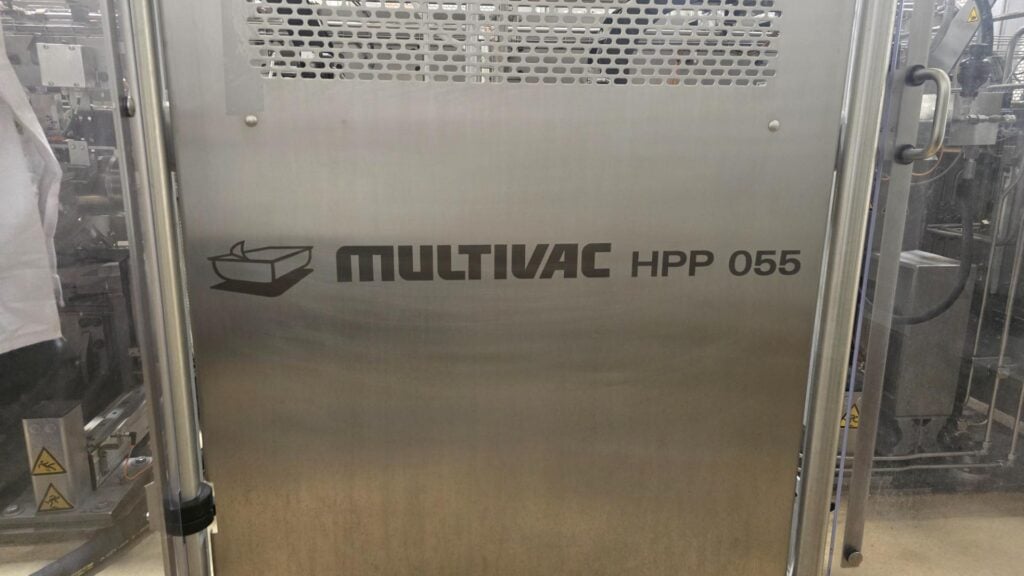

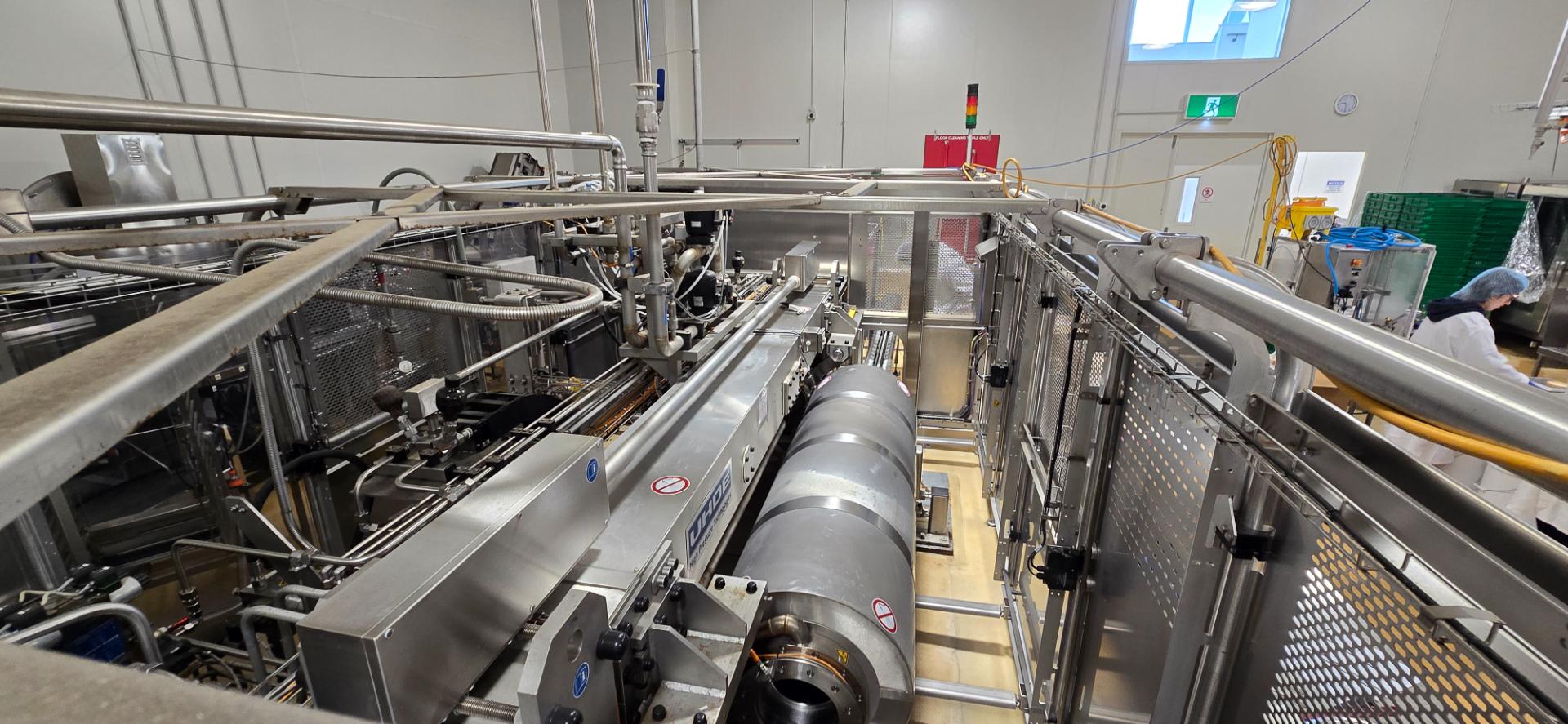

  • MULTIVAC HPP 055 industrial HPP system
  • Manufactured 2011
  • Approx. 55 L processing chamber class
  • Up to 6,000 bar processing pressure

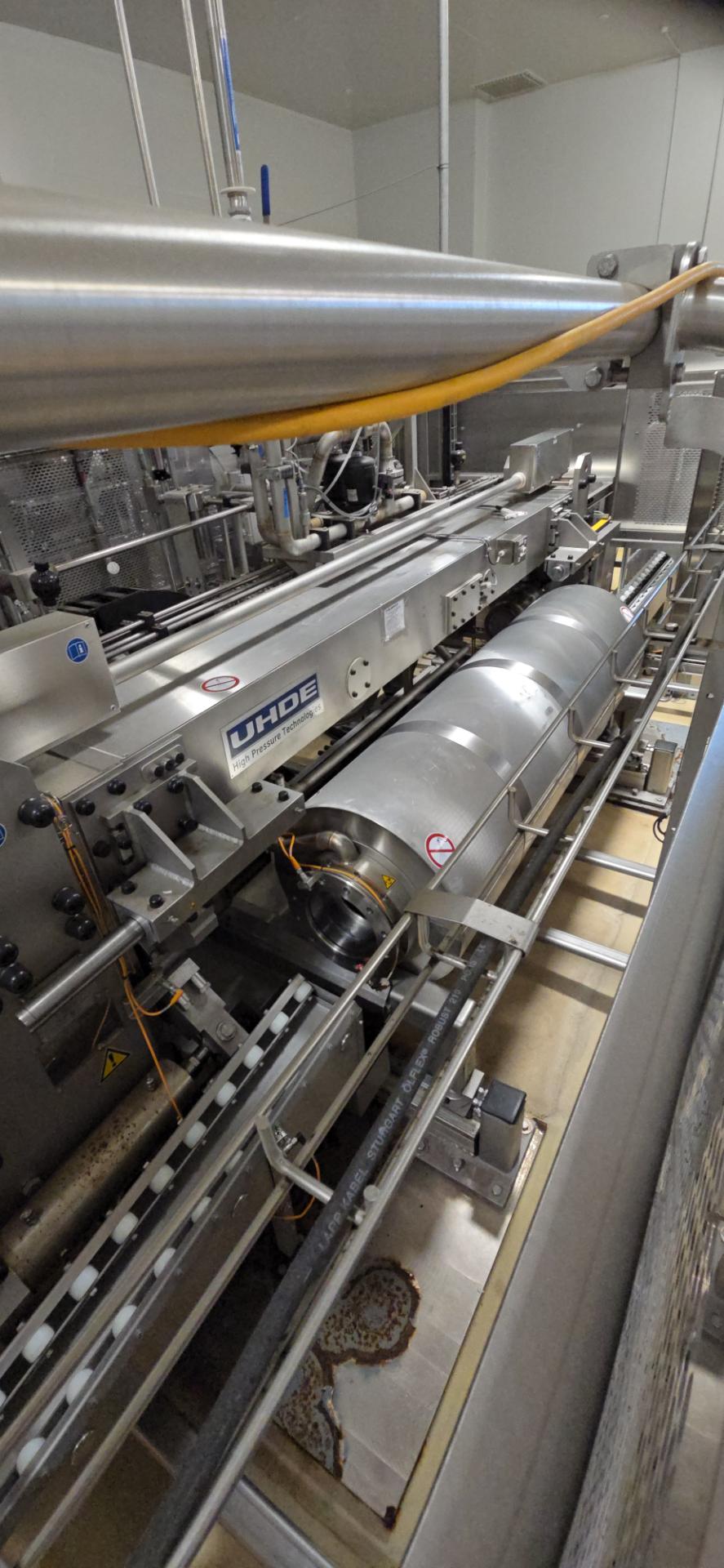

  • UHDE high-pressure technology

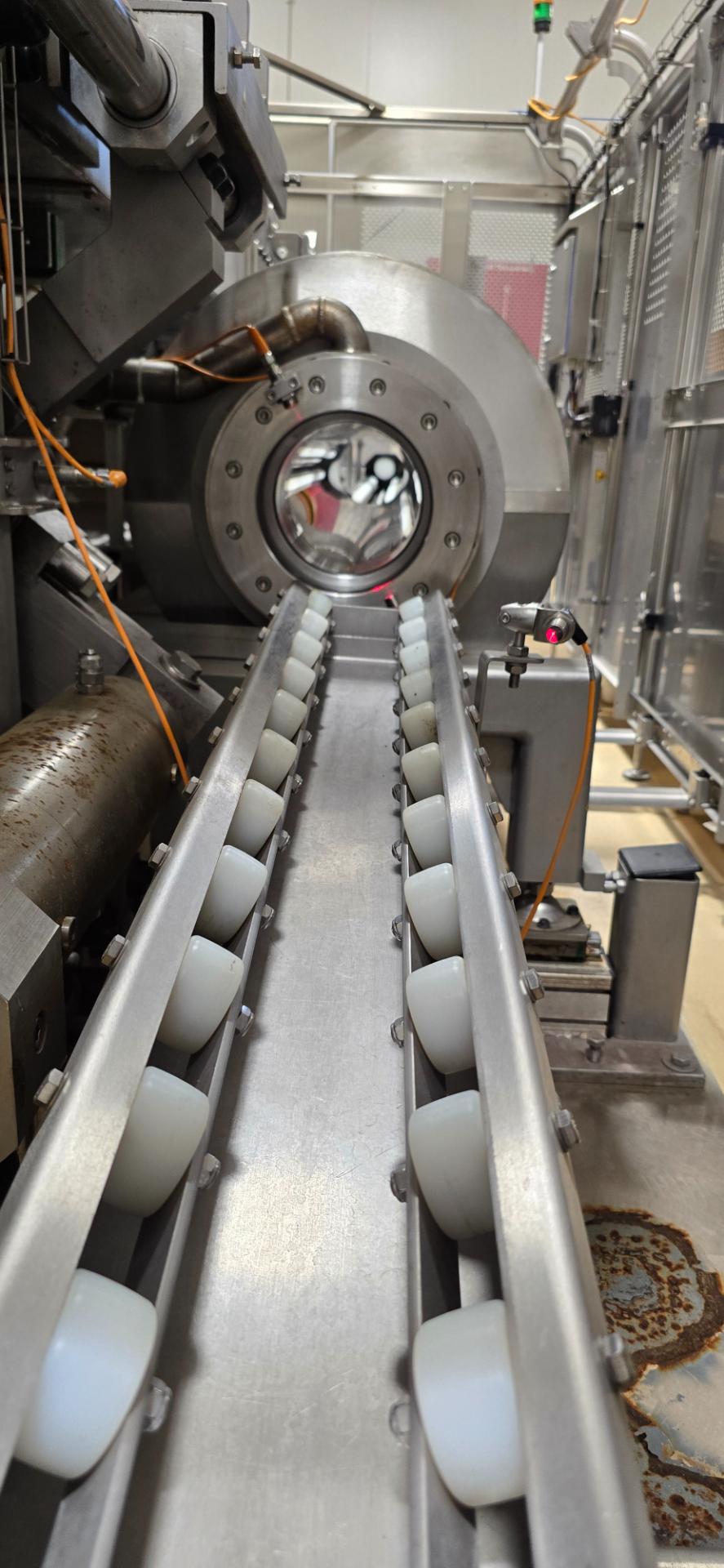

  • Automated loading and unloading arrangement

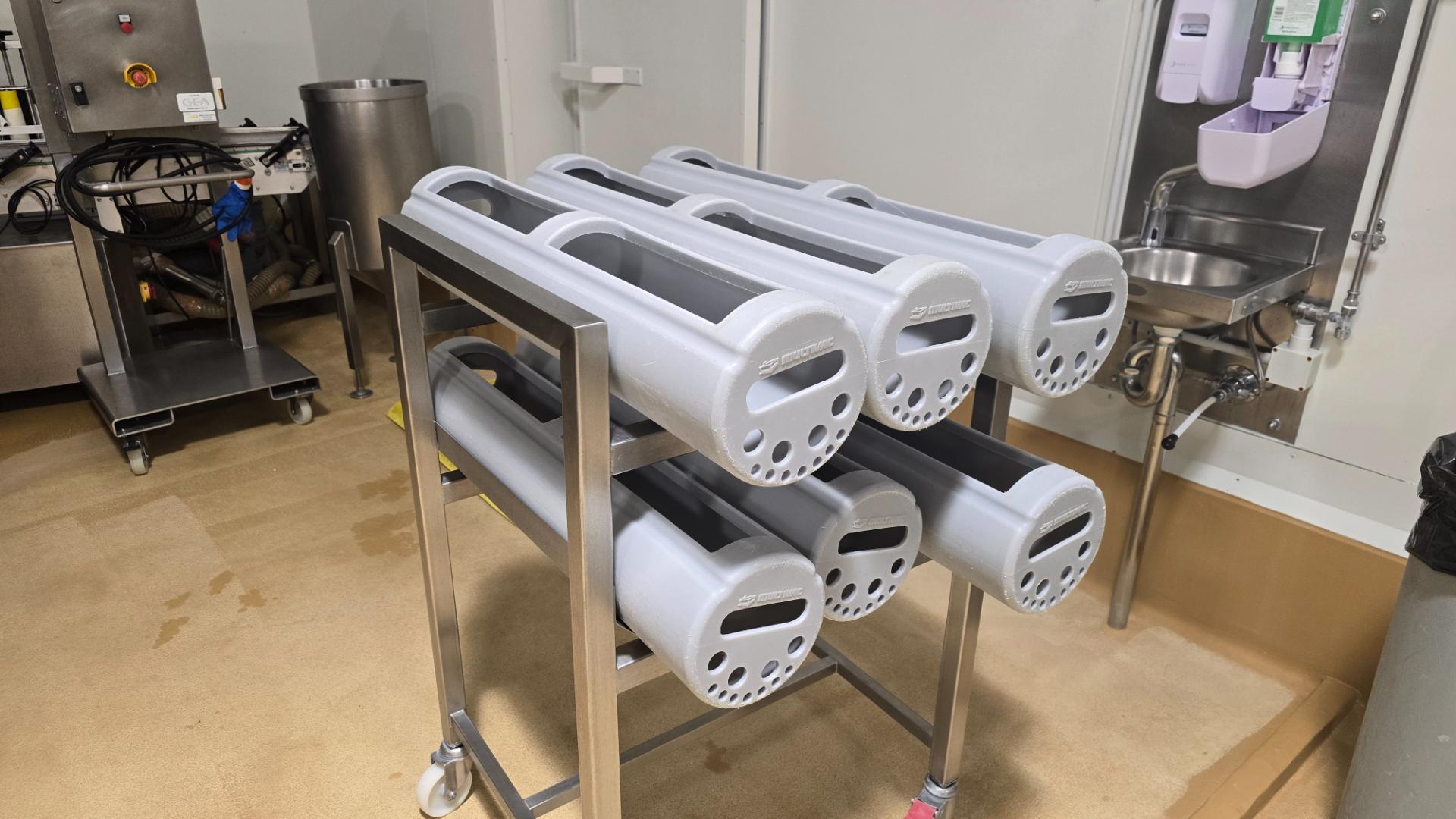

  • Multiple MULTIVAC product carriers
  • Stainless steel conveyor and machine construction
  • Siemens SIMATIC operator interface
  • Hydraulic power equipment
  • Fully guarded processing area
  • Suitable for commercial food and beverage applications

Technical Specifications

  • Manufacturer: MULTIVAC
  • Model: HPP 055
  • Year: 2011
  • Equipment Type: High Pressure Processing System
  • Nominal Processing Pressure: Up to 6,000 bar

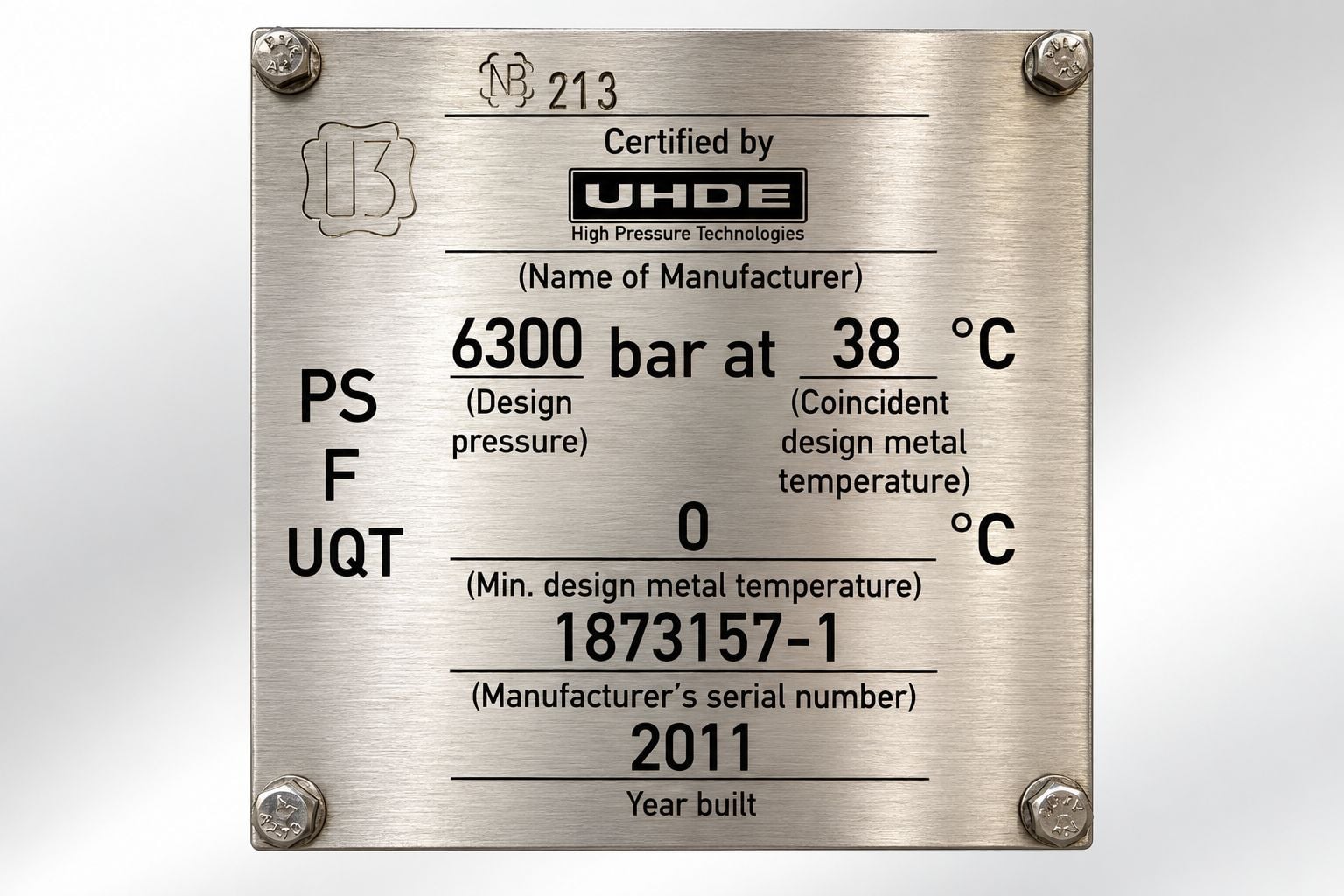

  • Pressure Vessel Manufacturer: UHDE High Pressure Technologies
  • Pressure Vessel Serial: 1873157-1
  • Pressure Vessel Design Pressure: 6,300 bar
  • Vessel Design Temperature: 38°C

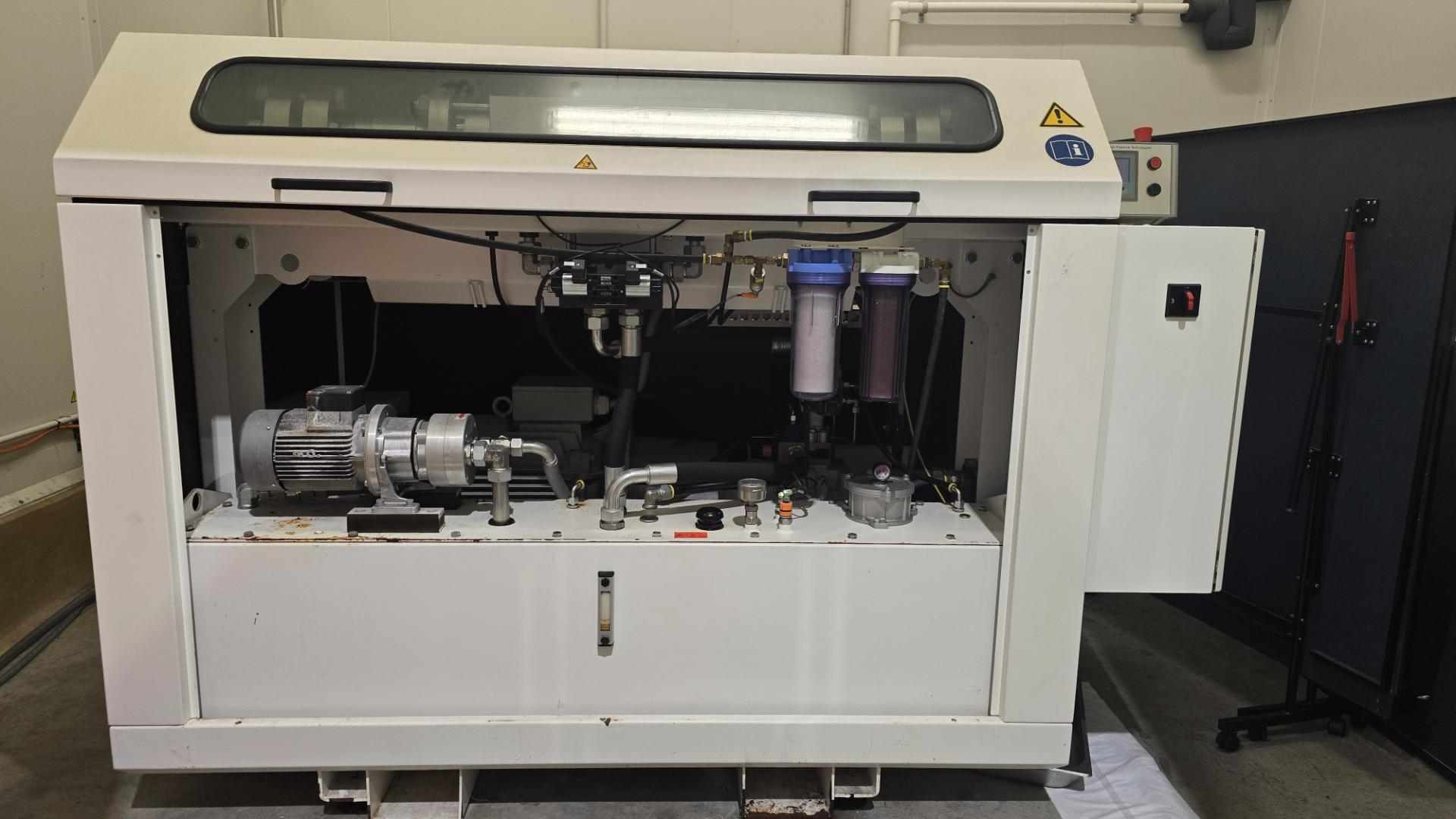

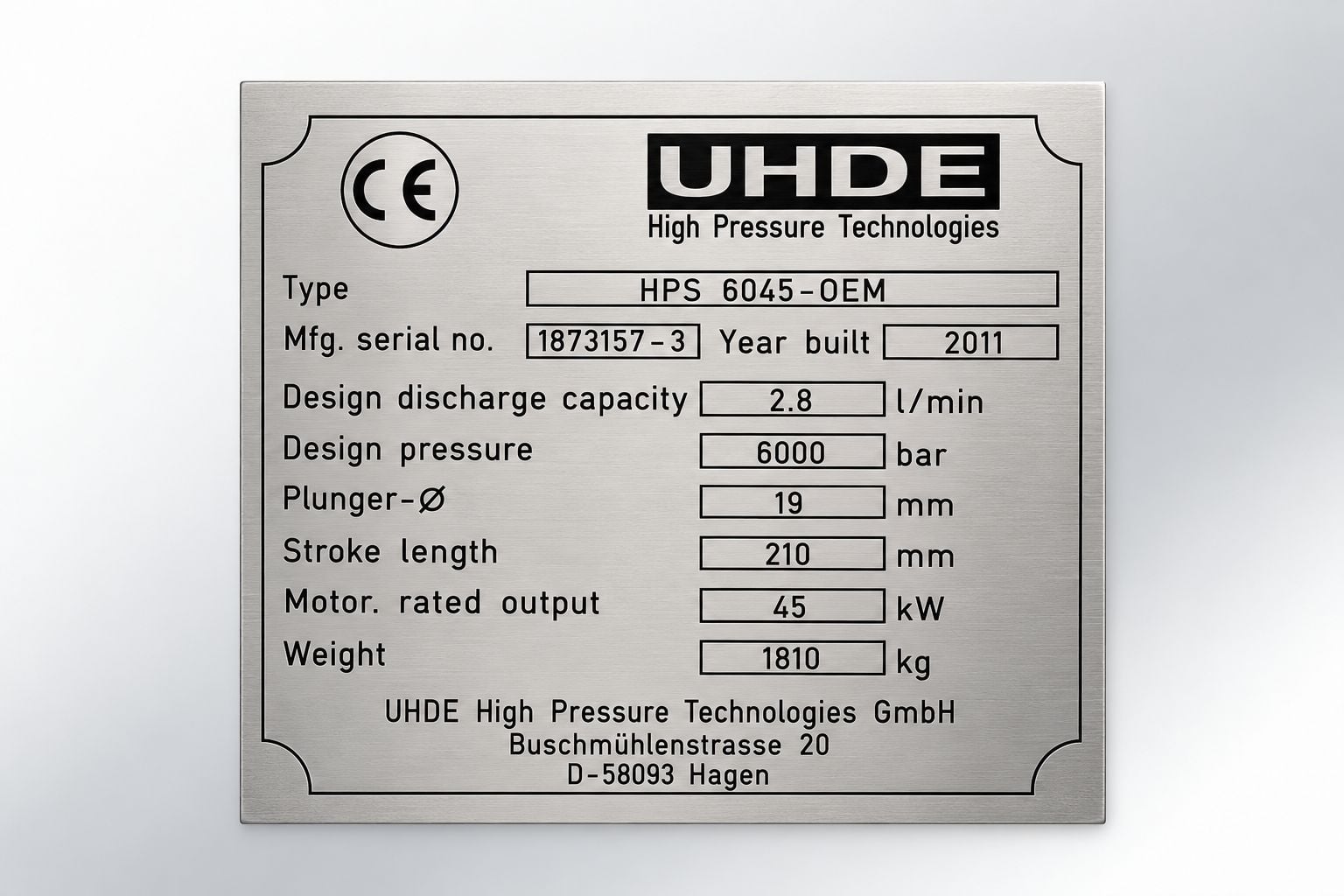

  • High Pressure Intensifier: UHDE HPS 6045-OEM
  • Intensifier Serial: 1873157-3
  • Intensifier Design Pressure: 6,000 bar
  • Discharge Capacity: 2.8 L/min
  • Motor Rating: 45 kW
  • Intensifier Weight: 1,810 kg

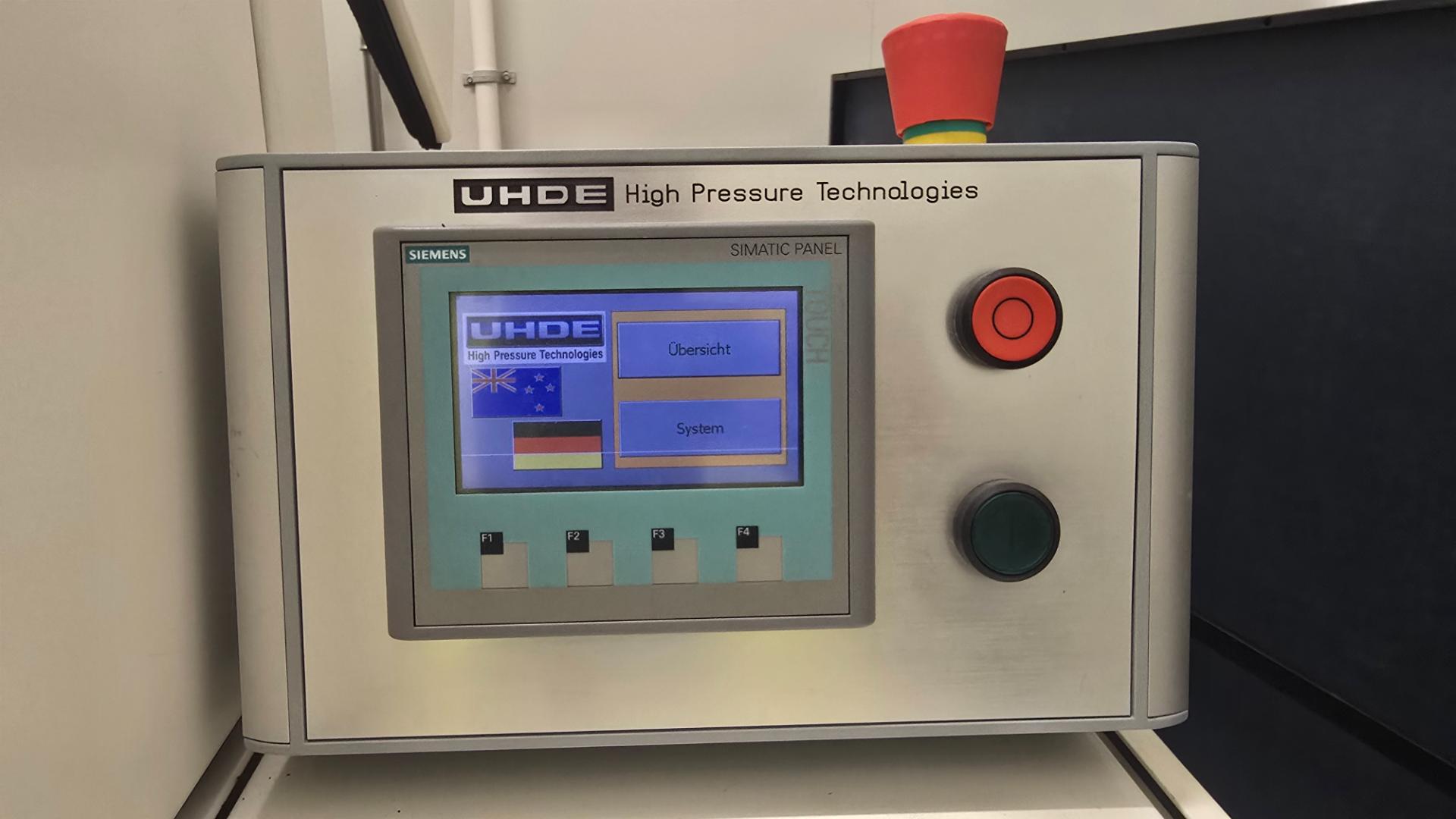

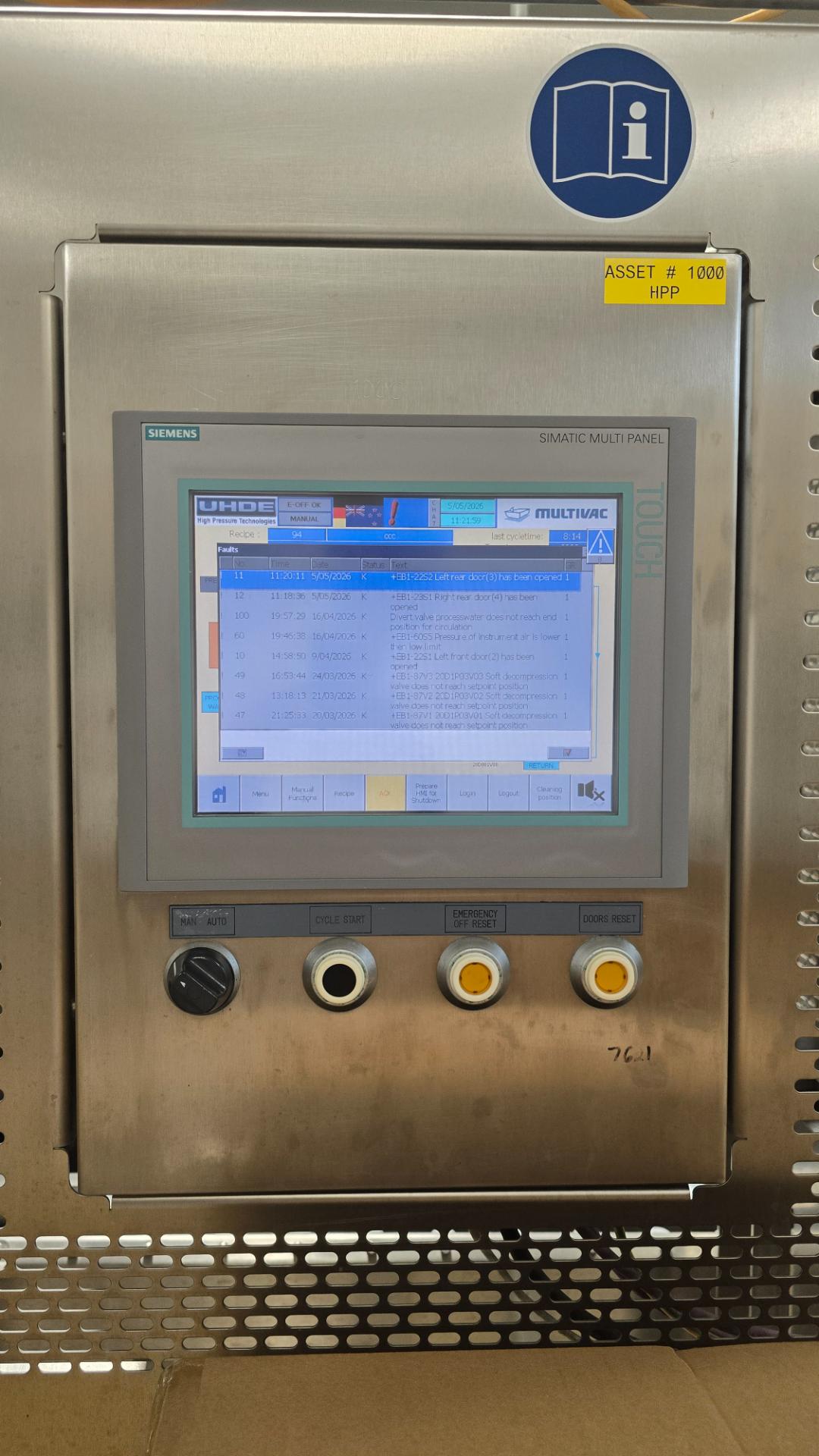

  • Controls: Siemens SIMATIC Multi Panel
  • Sale Basis: As-is, where-is
  • Inspection: Available by arrangement
