Line

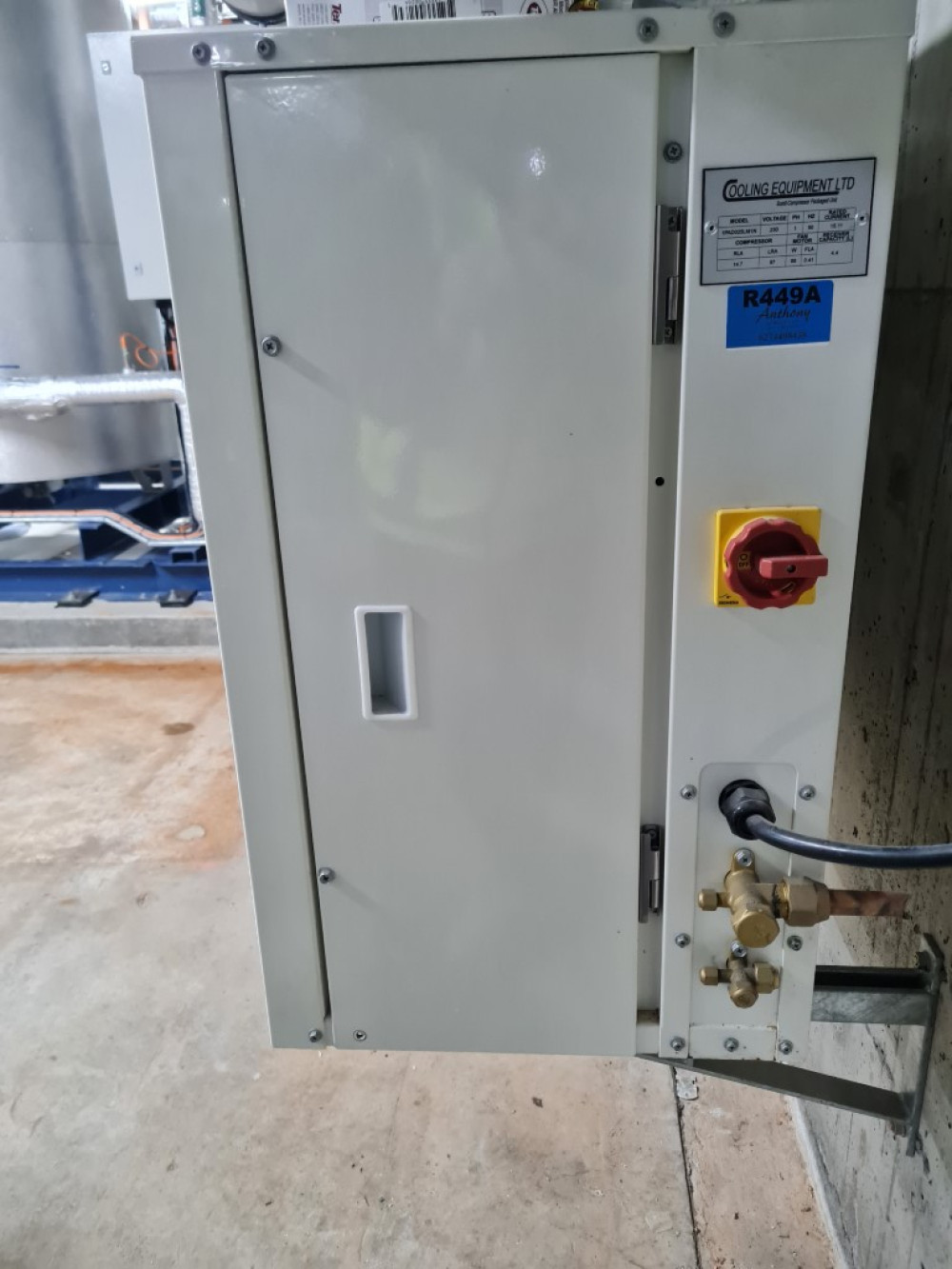

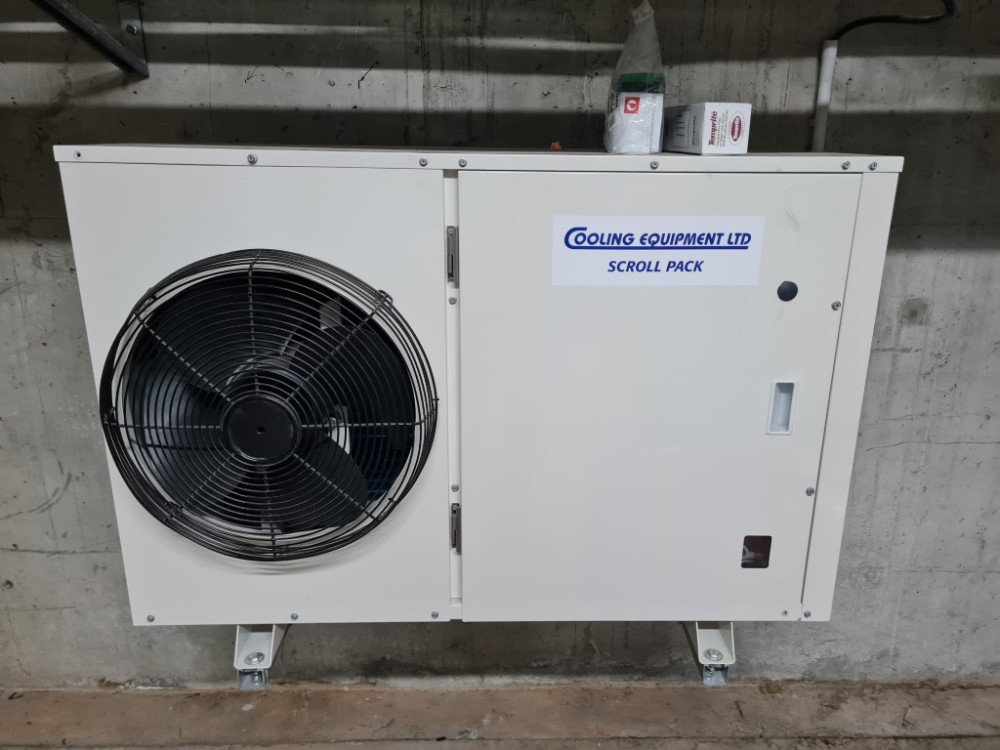

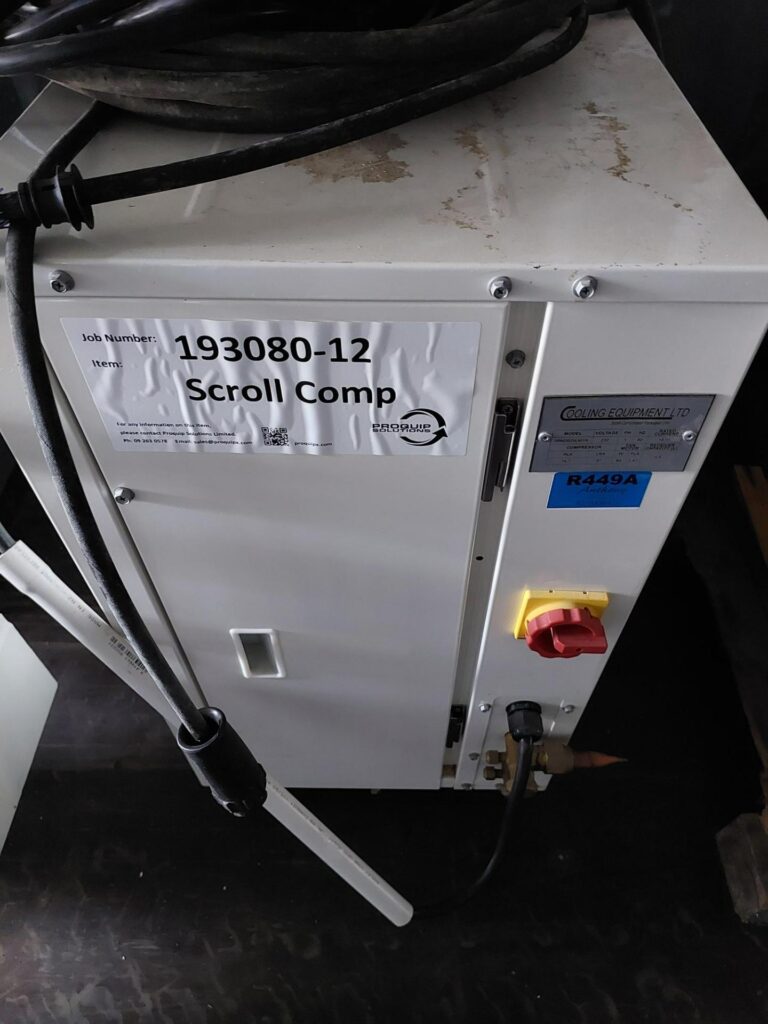

Scroll Compressor

193080 - 4

Request a Quote

Specifications

Description

Key Features

  • Danfoss Performer high efficiency scroll compressor
  • Compressor sump heater and isolation valves
  • Condenser fan speed controller
  • Heldon suction accumulator
  • Heldon oil separator with oil outlet isolation valve
  • Heldon liquid receiver with inlet/outlet isolation valves
  • Suction check valve
  • External mains isolating switch
  • External liquid and suction isolation valves
  • Dual pressure switch & Low noise condenser fan motors

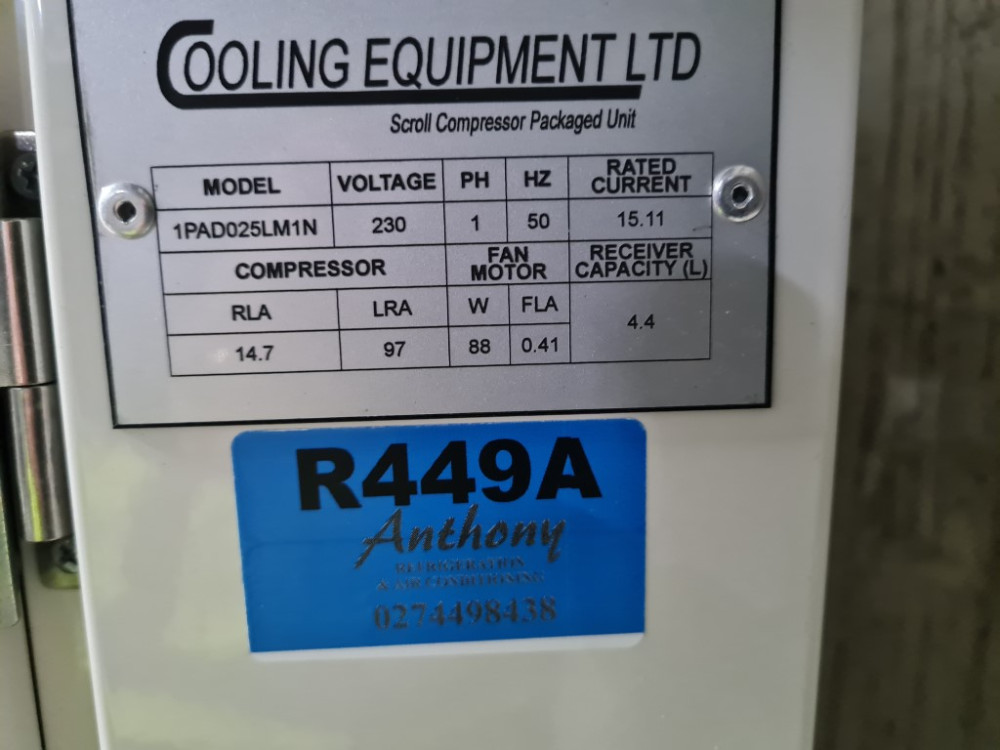

Technical Specifications

  • Compressor - MLZ19T5
  • Capacity R449a -25 SST, 2.3 Kw
  • Capacity R449a -5SST, 5.2 Kw
  • Capacity R134a -5 SST, 3.5 Kw
  • Nominal horse power - 2.5 Hp
  • Phase - 1
  • Voltage - 230 Vac
  • Rated current - 15.15 Amp
  • Connections Suction/Liquid - 3/4" / 3/8"
  • Dimensions - 1148mm L x 450mm W x 809mm H
  • Weight - 105 Kg
  • Receiver size - 4.4 Litre
