Mettler Xray

193744 - 2

Request a Quote

Contact Us

or Call +64 (0) 9 263 0578

Specifications

  • Manufacturer: Mettler Toledo
  • Model: X36
  • Condition: Good
  • Year: 2015
1 / 10

Description

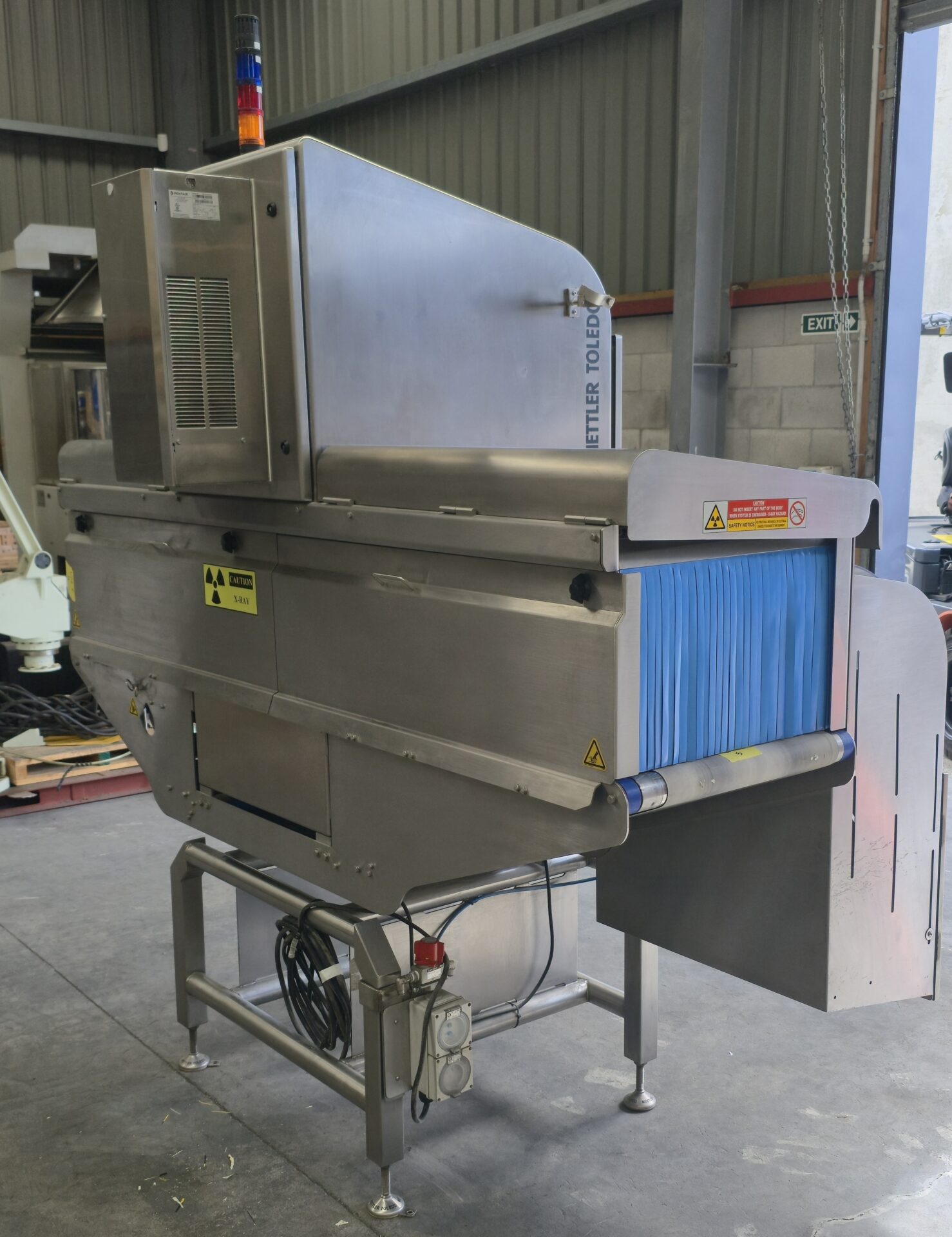

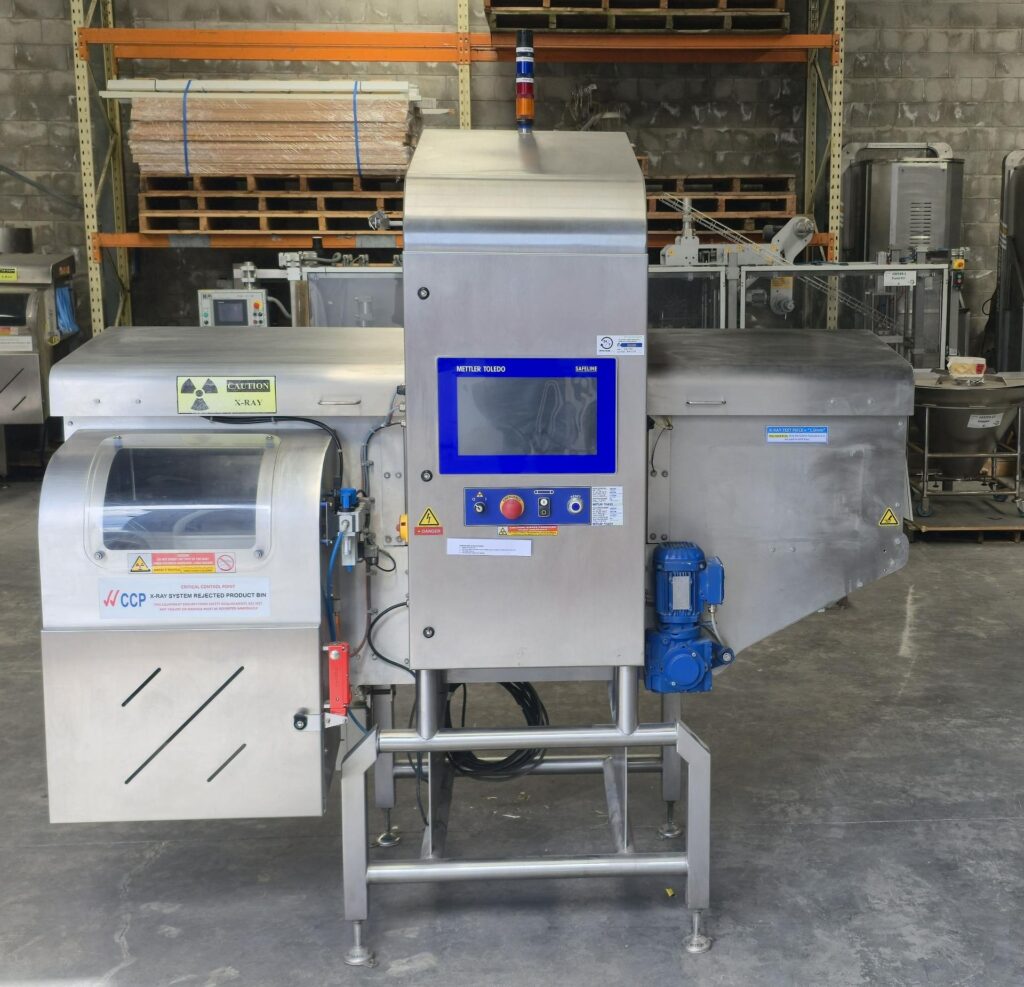

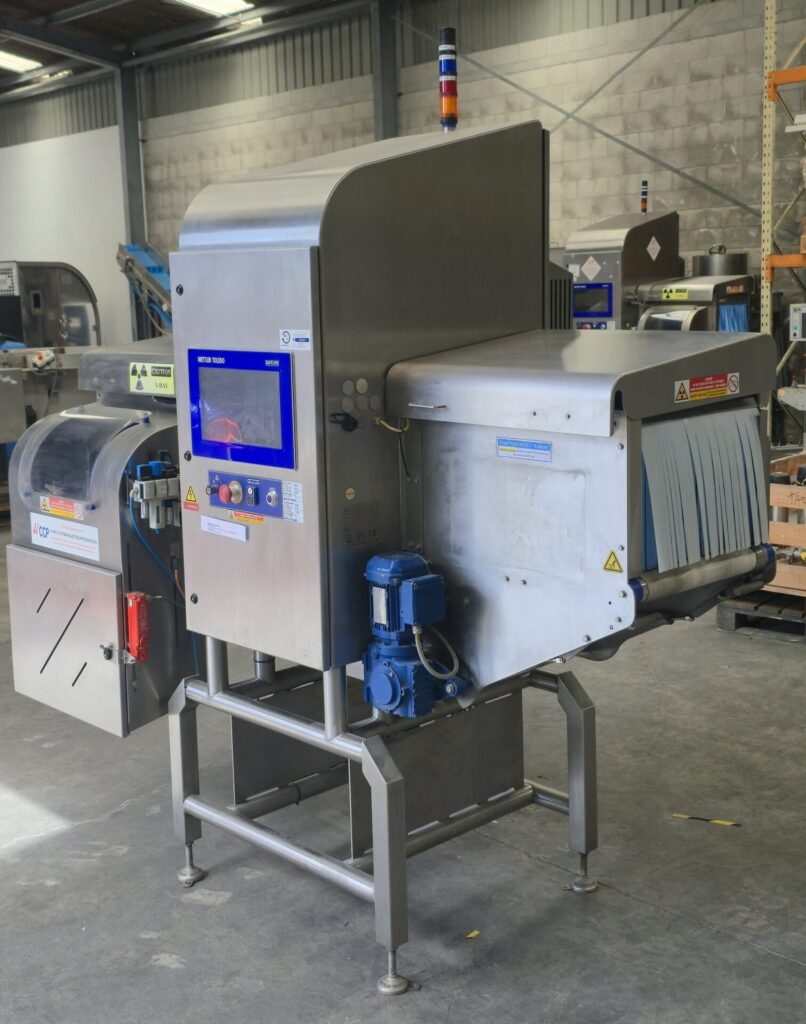

Mettler Toledo X36 X-Ray Inspection System

The Mettler Toledo X36 X-ray inspection system is a high-performance solution for product safety, quality control, and brand protection across modern production lines. Designed to handle small to large packaged products, it delivers accurate detection, high throughput, and reliable compliance in demanding environments.

With advanced inspection capabilities, the X36 ensures your products meet strict quality standards by detecting contaminants, product defects, and inconsistencies before they reach the market.

System Configuration

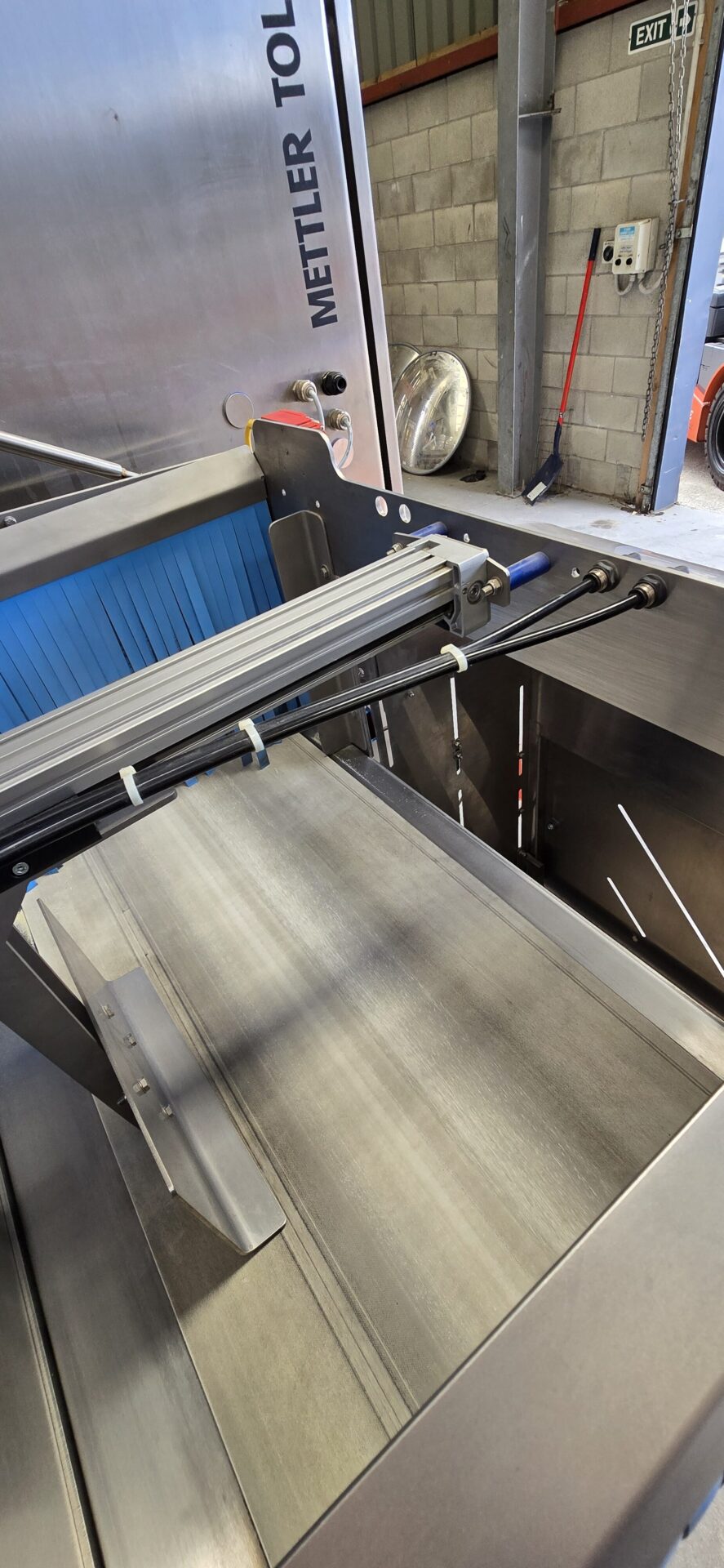

  • Pneumatic rejection arm into a lockable reject box
  • Fully enclosed with all safety shields in place
  • Adjustable feet with compact footprint
  • Dimensions: 1400mm (W) × 2200mm (L) × 2700mm (H)
  • Belt Width: 430 mm
  • height to top of infeed belt, currently set at 1100mm, adjustable feet has around 120mm as it sits.
  • The unit is currently set up to detect 1mm, dia 316 SS

View More Details

Key Features

  • Advanced X-ray inspection for contamination and integrity checks
  • Supports high-speed production lines with up to 1000 ppm throughput
  • Handles multiple product types and packaging formats
  • Ensures compliance, safety, and brand protection
  • Integrated rejection system with lockable bin for secure removal
  • Built for continuous, reliable operation in industrial environments
  • Dimensions: 1400mm (W) × 2200mm (L) × 2700mm (H)

Technical Specifications

  • Model: X36
  • Inspection Type: X-ray (single vertical beam)
  • Max Line Speed: 100 m/min
  • Max Throughput: Up to 1000 products per minute
  • Max Product Size: Width: 580 mm (belt width 430 mm) Height: 300 mm Weight: 25 kg
  • HMI: 15.6" touchscreen interface
