Line

Forberg Blender Mixer

192431 - 03

Request a Quote

Specifications

Description

Key Features

  • Capacity & Performance Nominal Batch Volume: 60 Liters Effective Working Range: 24L (Min) to 84L (Max) (40%–140% of nominal)
  • Typical Mixing Time: 30 – 60 Seconds (achieving CV < 5%) Mixing Principle: Fluidized Zone Mixing.

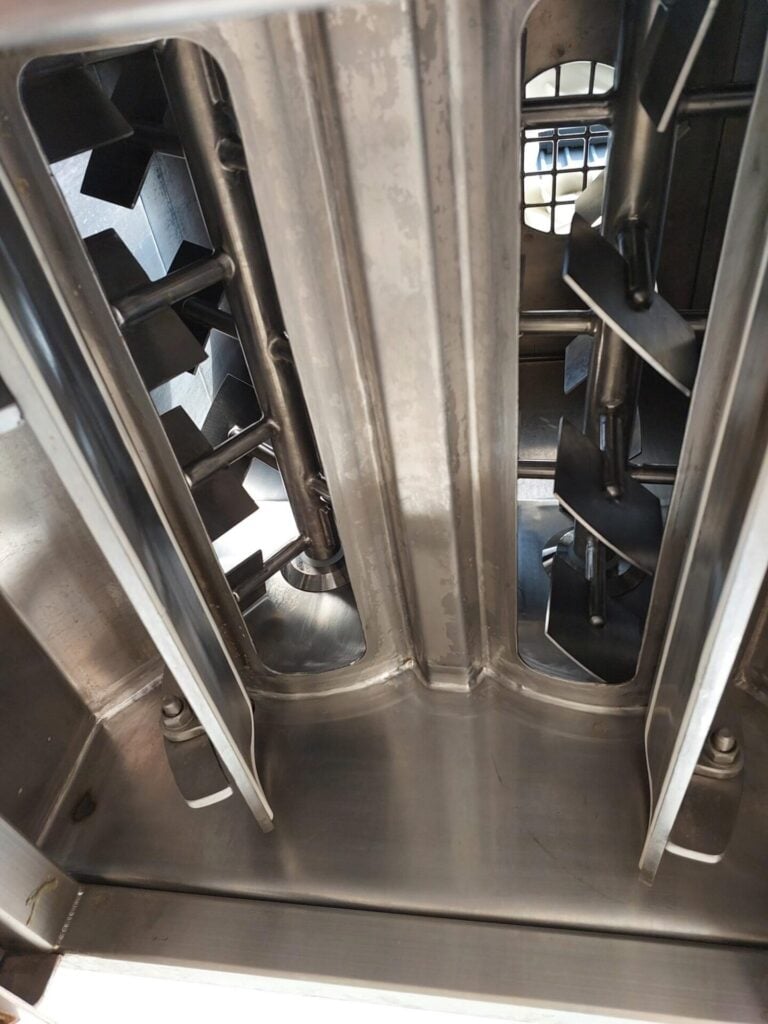

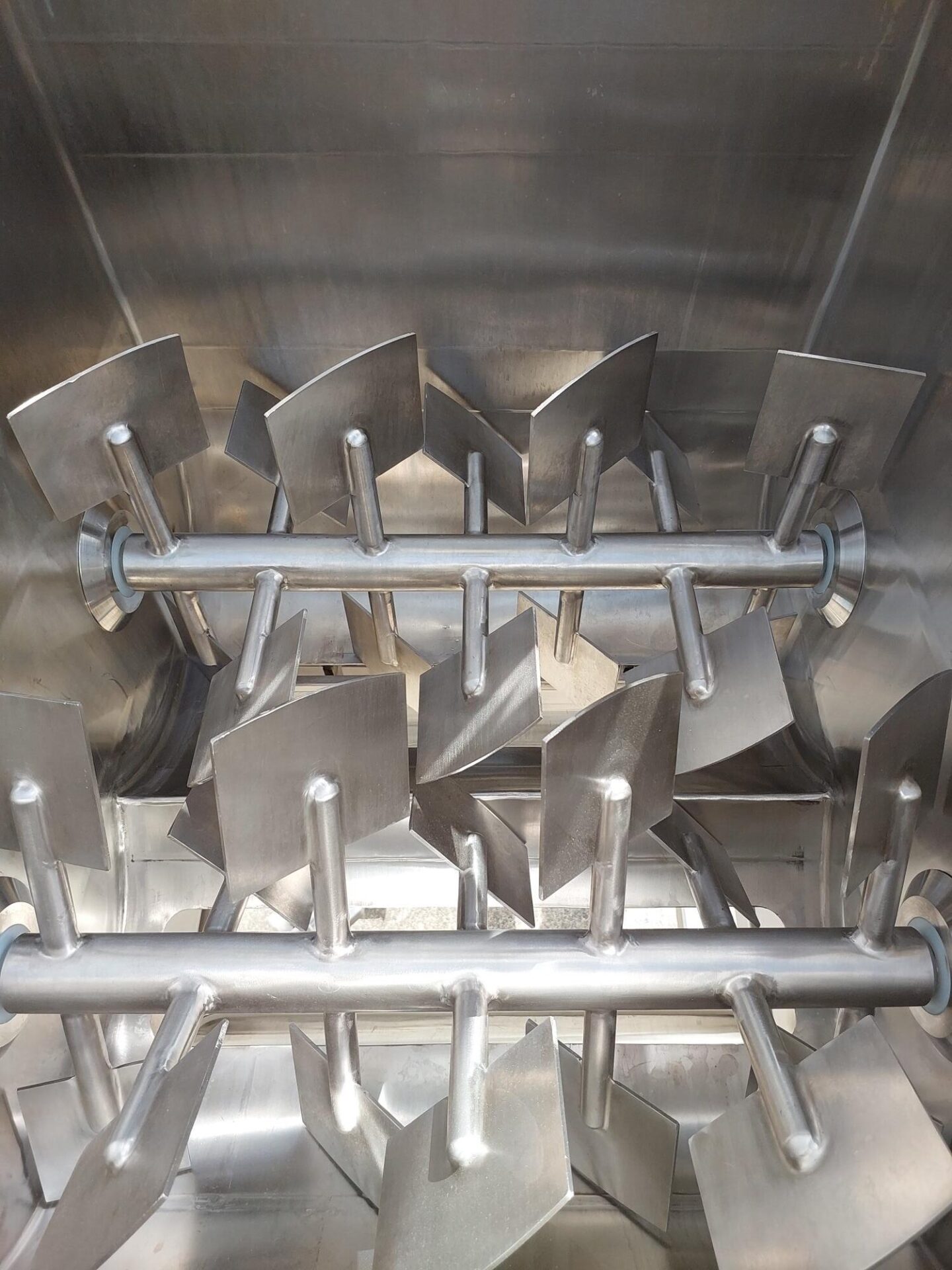

  • Counter-rotating paddles lift material into a weightless state, allowing particles of varying densities and sizes to blend without friction-induced heat or mechanical shear.

Technical Specifications

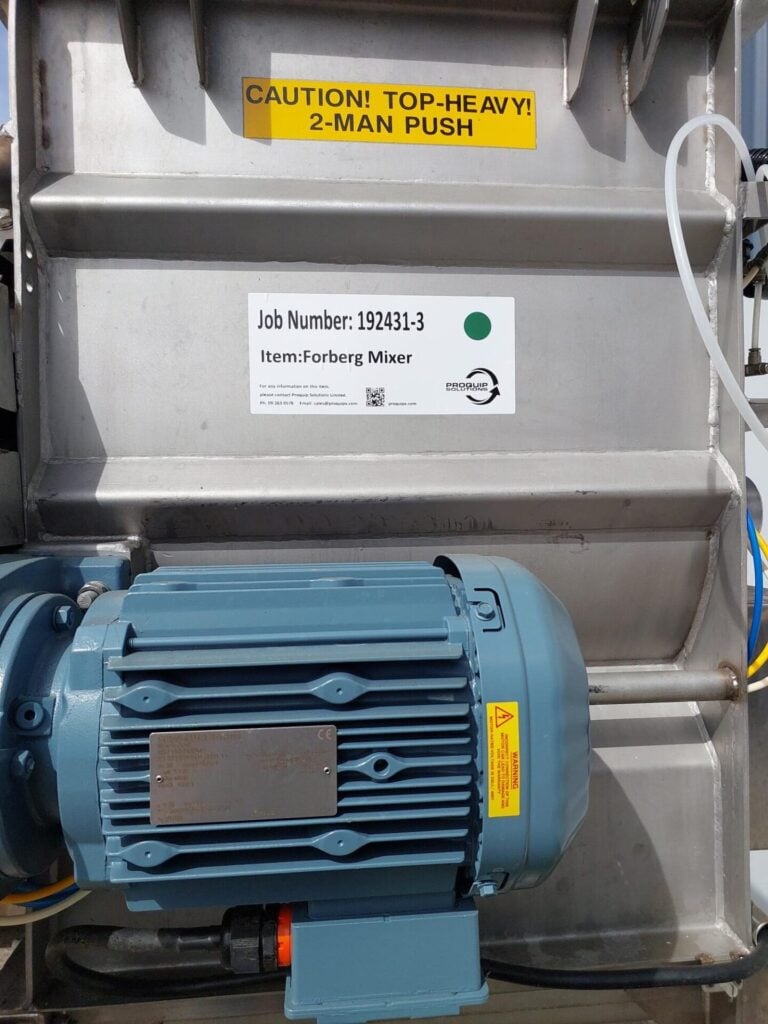

  • Technical Data & Drive System Motor Power: 3.0 kW (4 HP) standard (High-torque configuration) Electrical: 400V / 3-Phase / 50Hz Drive Train: Synchronized twin-shaft gearbox ensuring precise paddle timing. Discharge: Twin "Bombay Door" mechanism for rapid, full-bottom discharge and minimal residue.
  • Physical Dimensions (Approx. Standard) Machine Length: ~960 mm Machine Width: ~1050 mm Machine Height: ~810 mm (Base unit only) Estimated Weight: 280 kg
