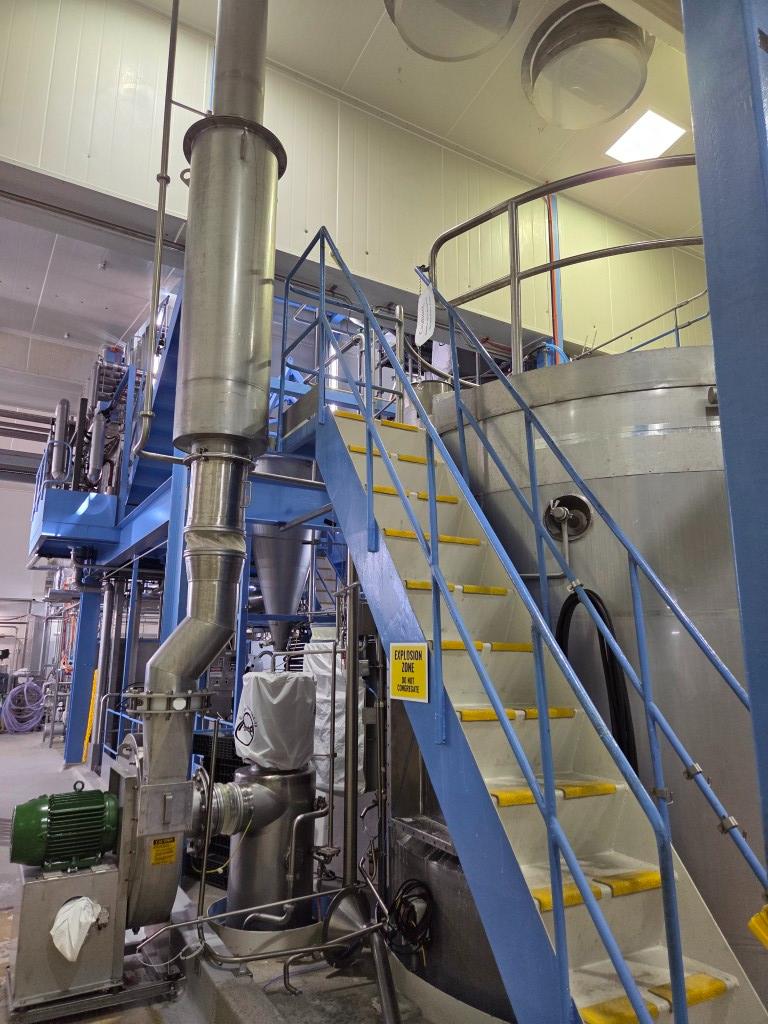

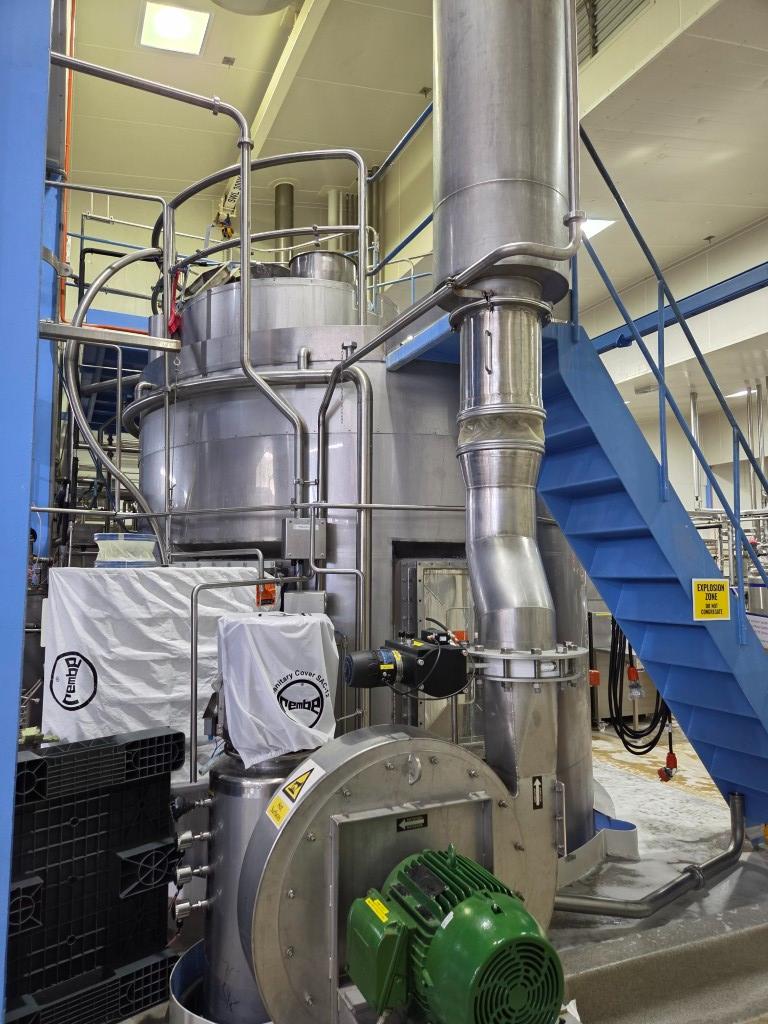

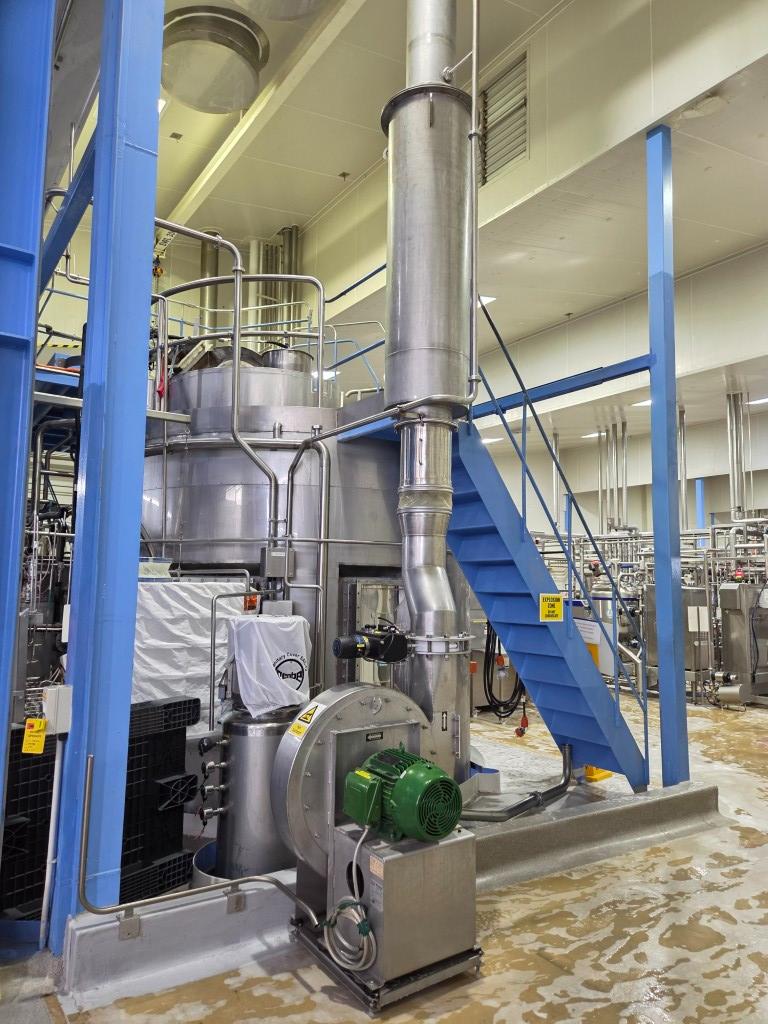

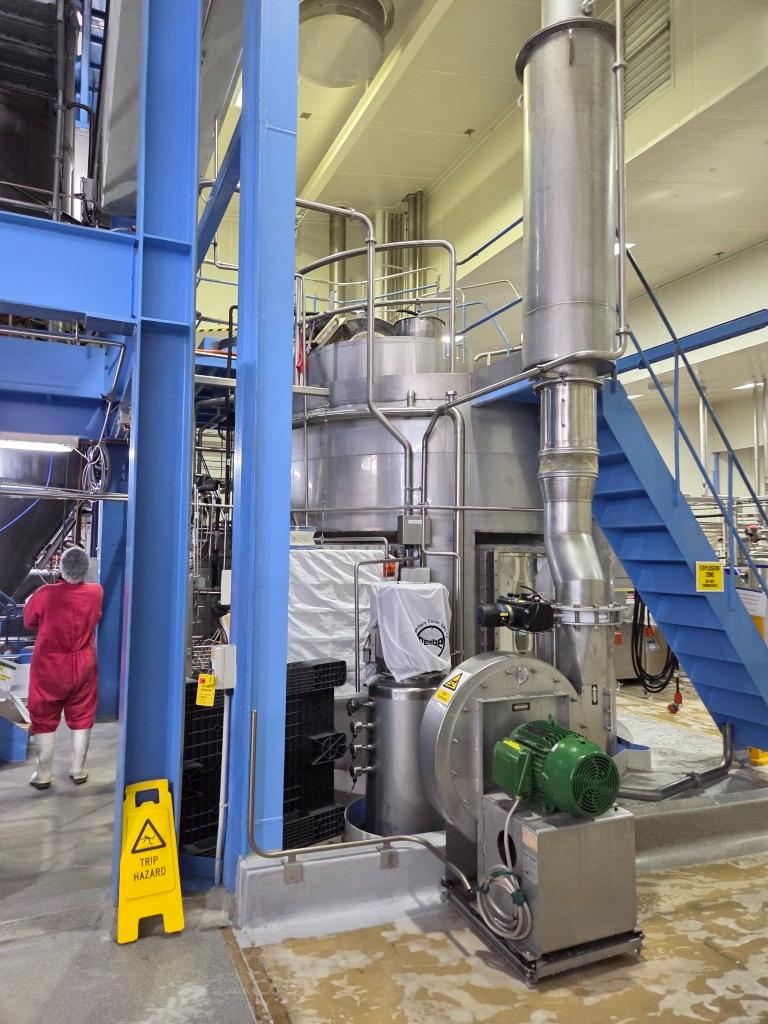

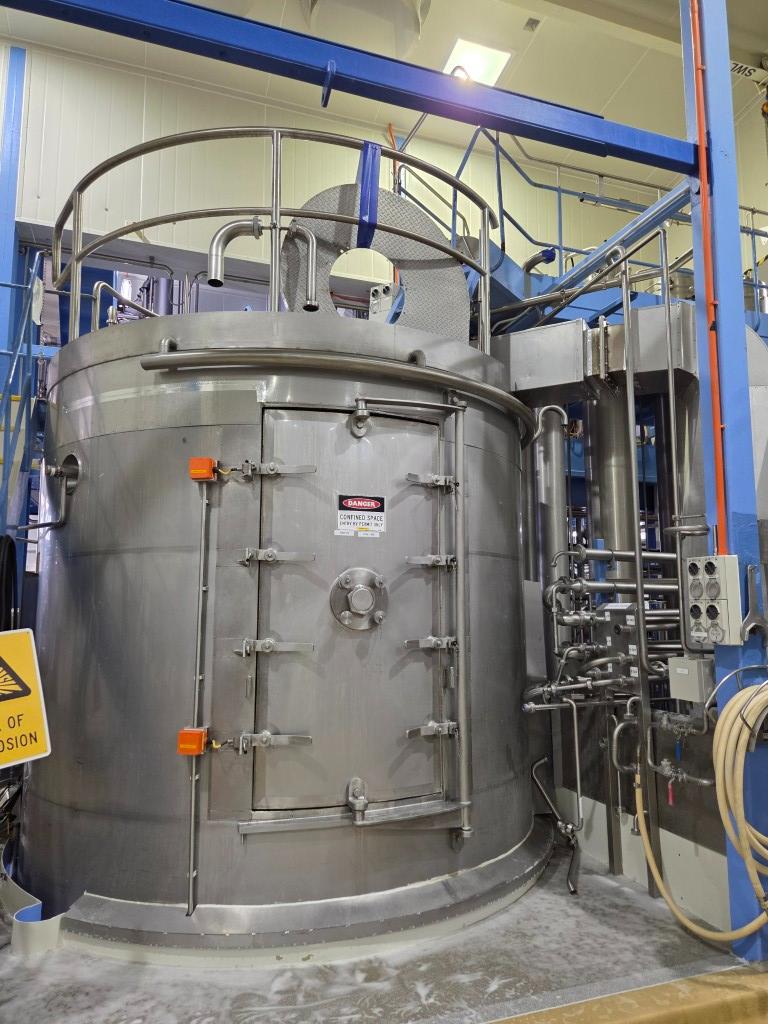

Integrated Fluid Bed Drier

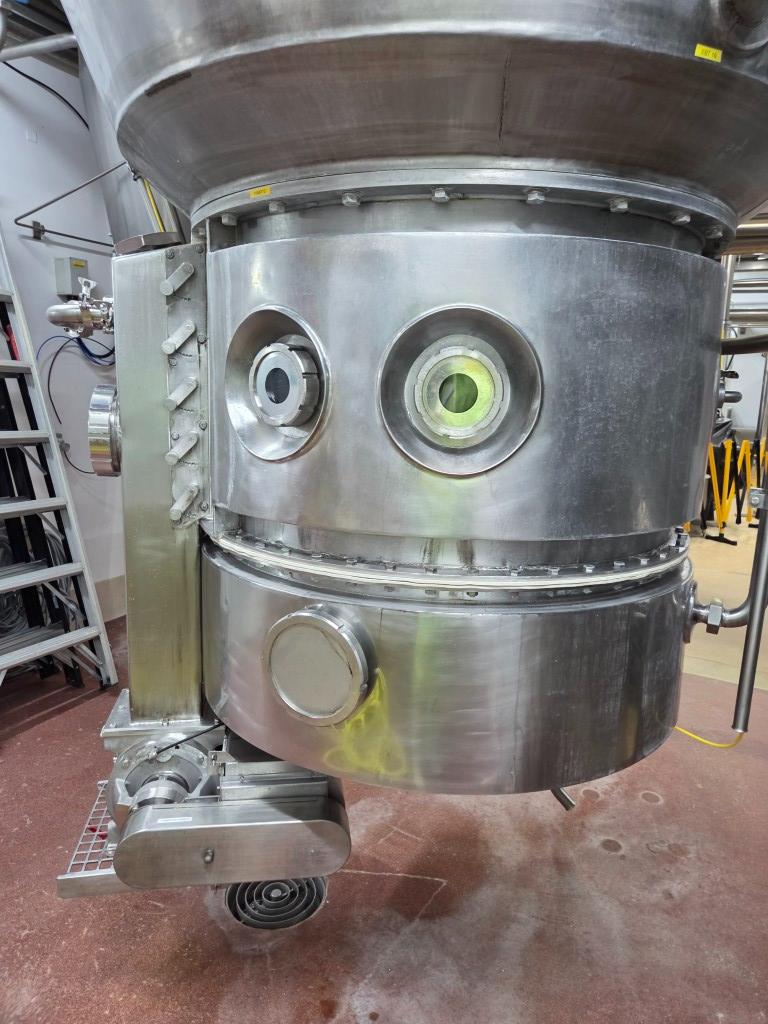

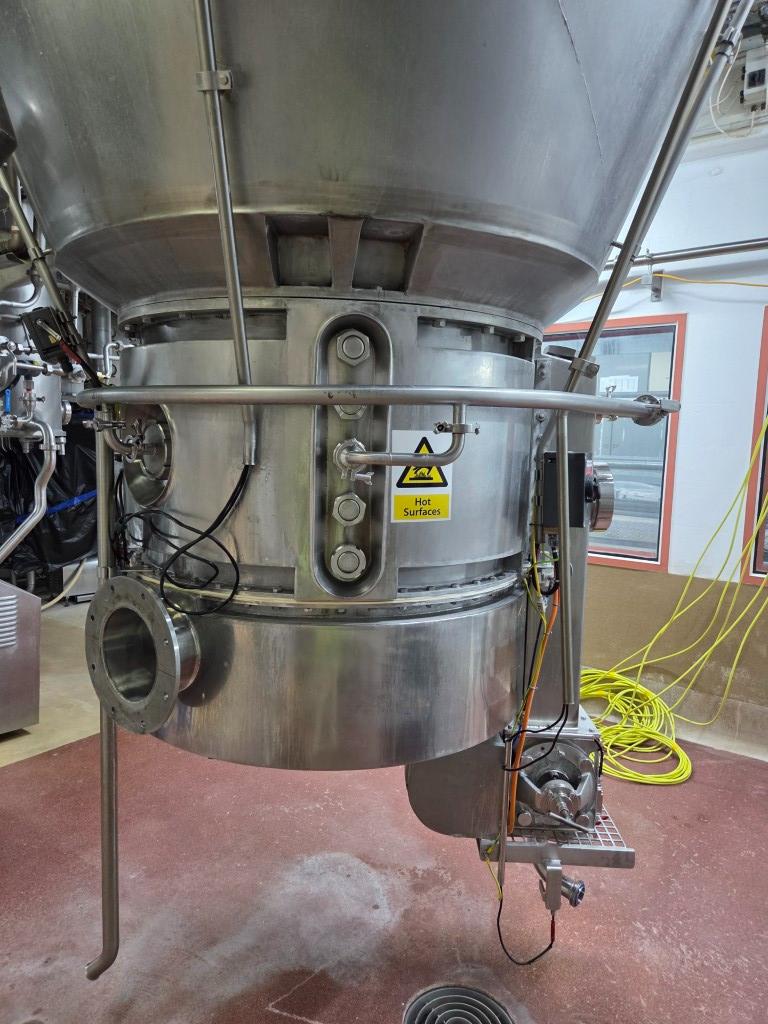

Drier comes with Static Internal Fluid Bed section

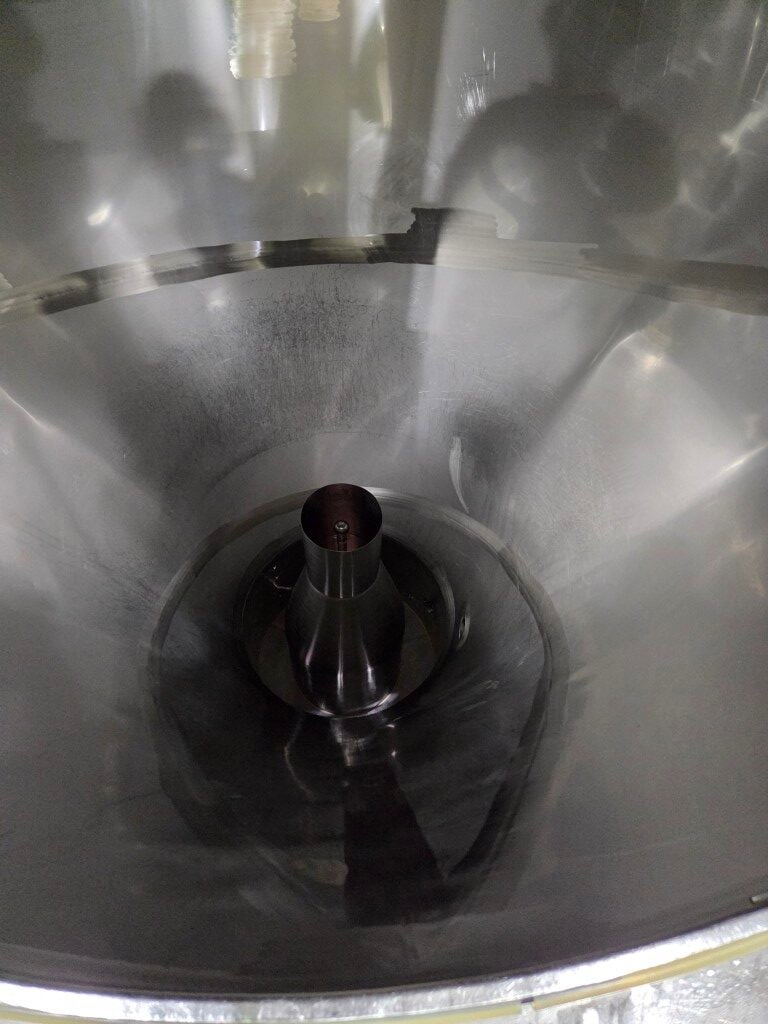

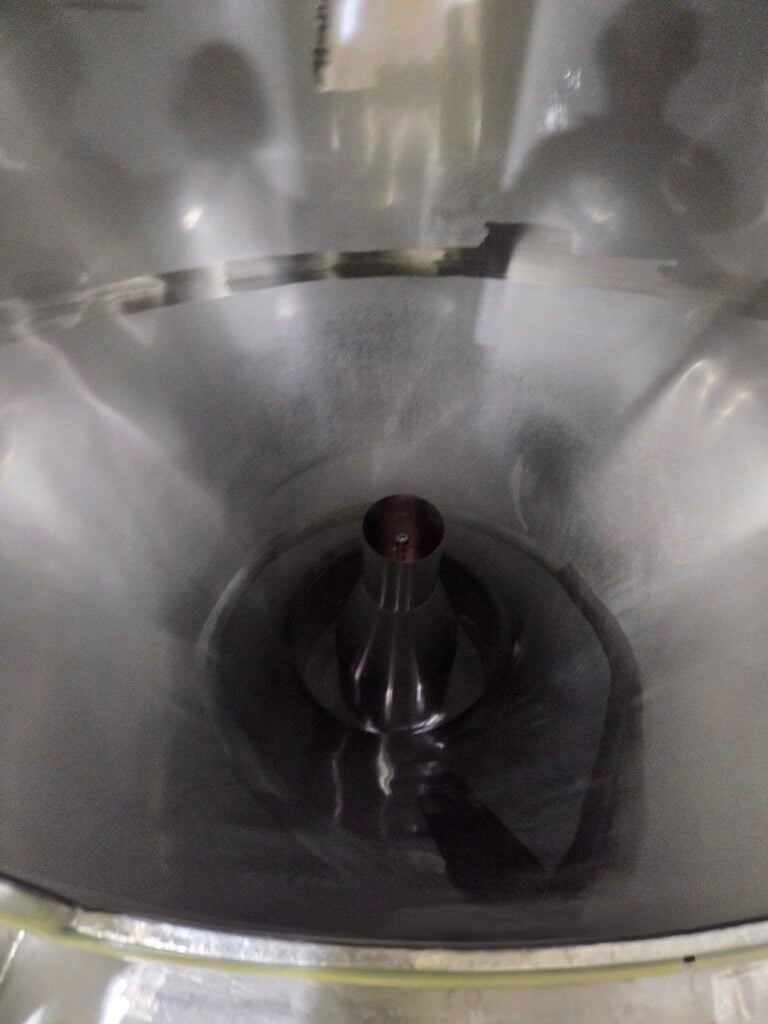

Build bed in the bottom, level manually controlled oin system, with fines being recovered in the middle.

Exhaust nair out through the centre with fines return through a side port.

Size

• 2.9 m diameter

• 5.6 m height

• ~19 m³ chamber

Throughput 45 – 130 kg/hr (at 5 – 65% TS)

120 kg/ hr evaporator capacity

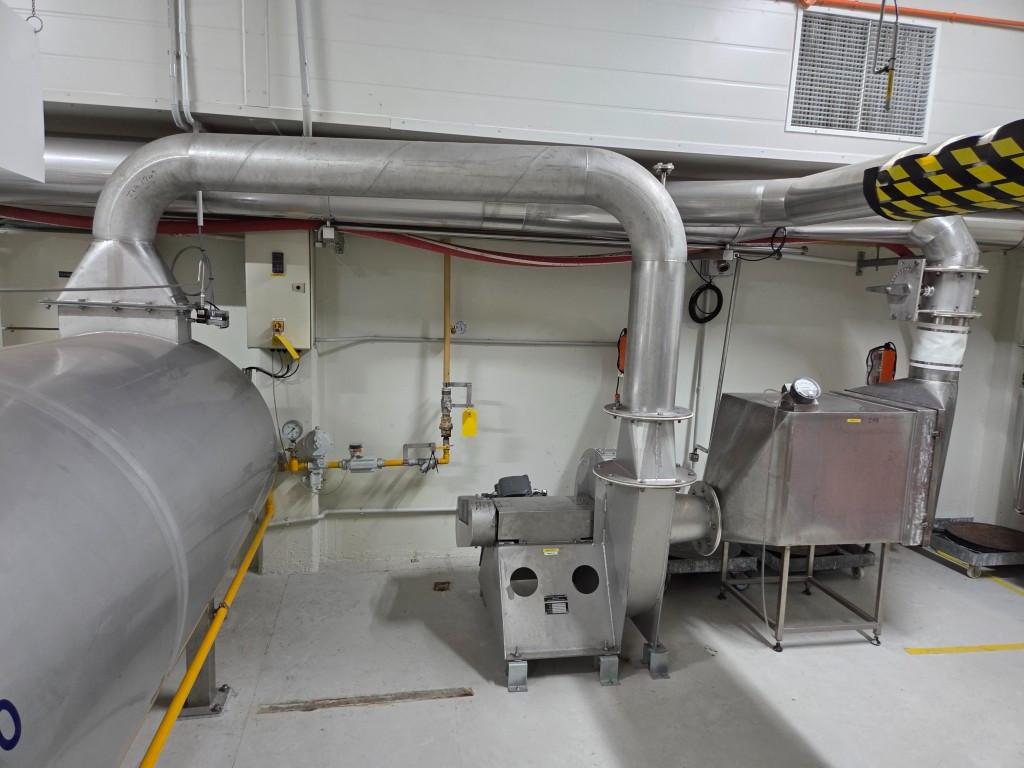

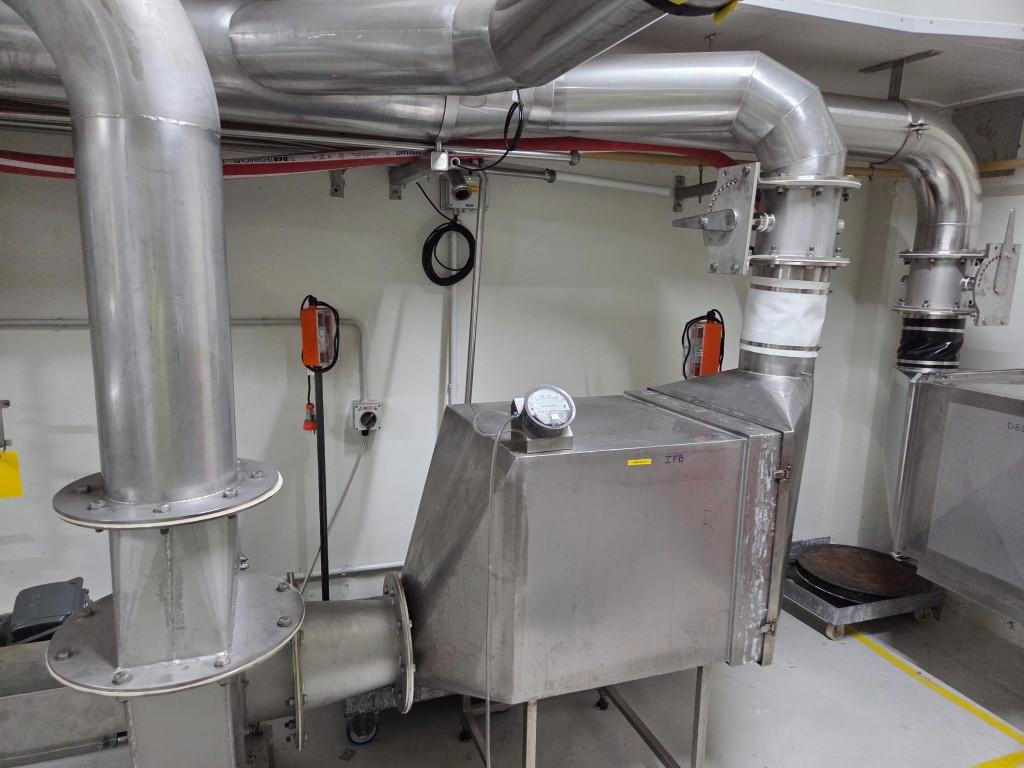

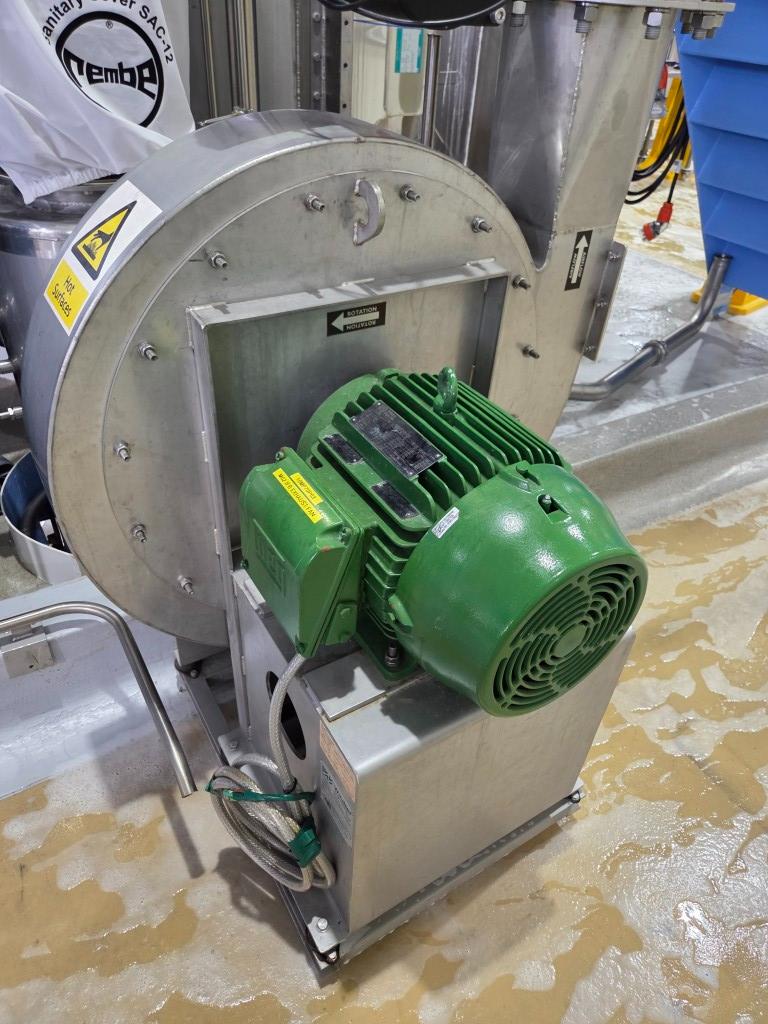

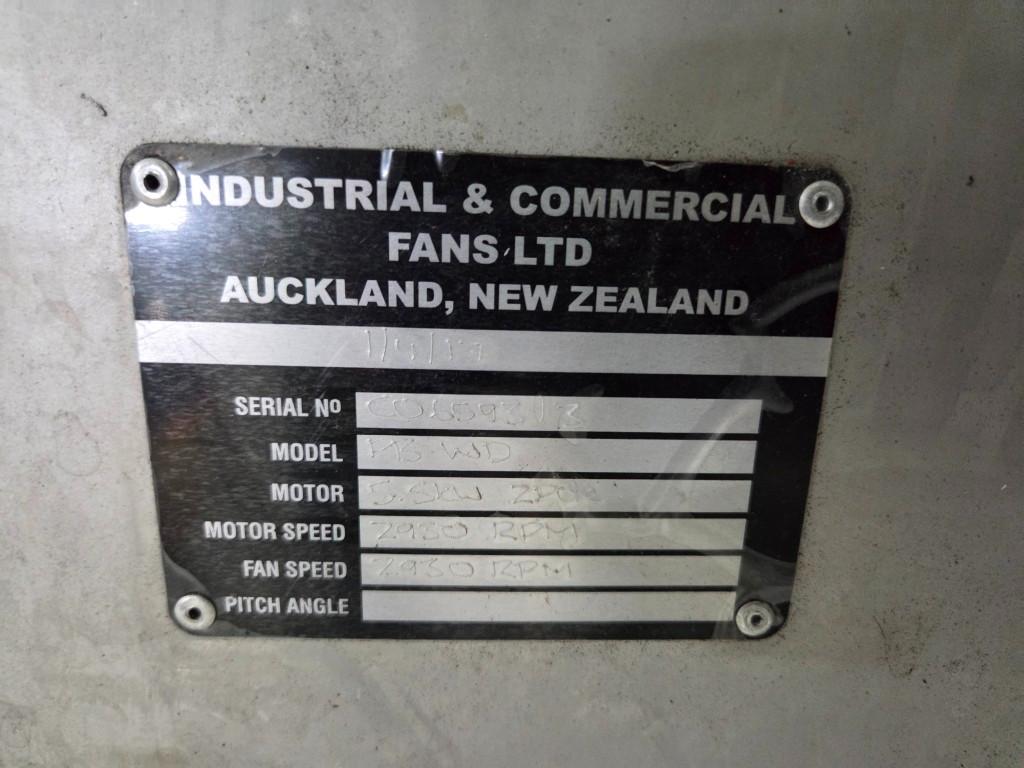

Air System

• primary air 2500-2800 kg/hr
• inlet temperature 100 – 250 deg C

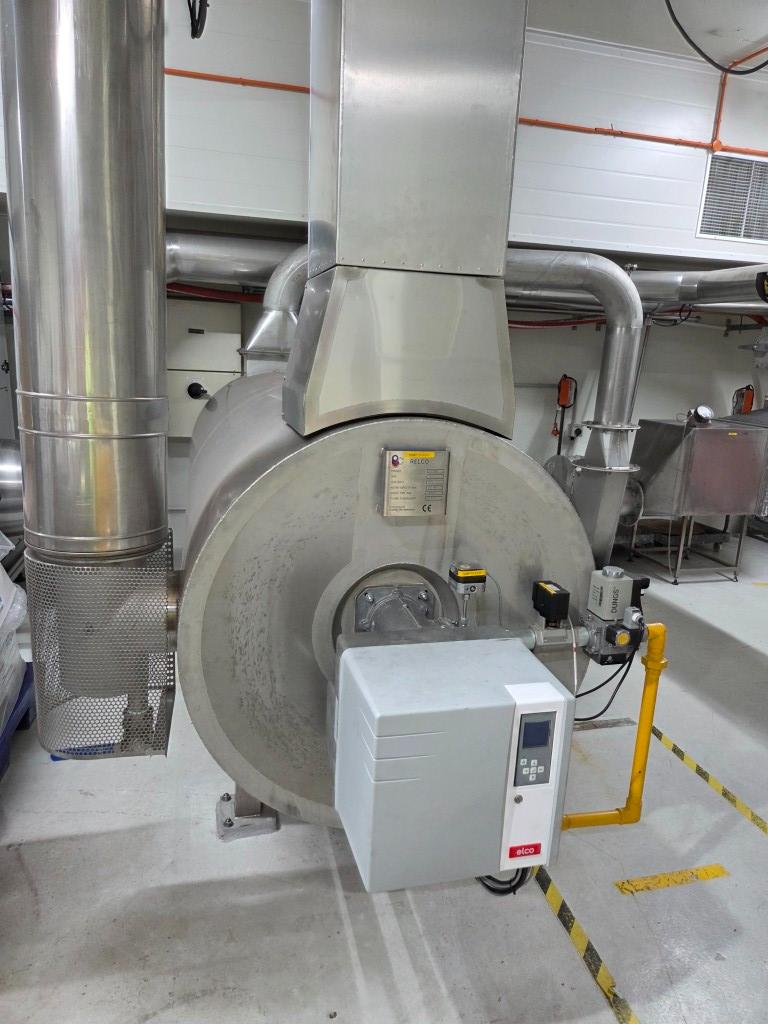

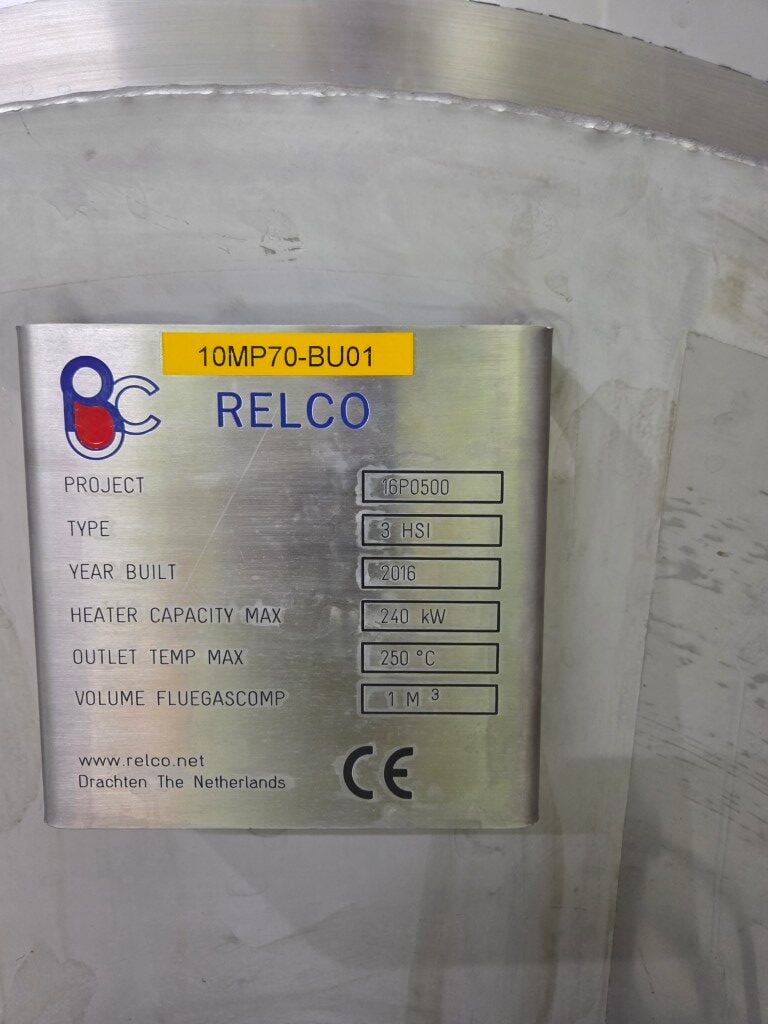

• separate gas heater (Relco)

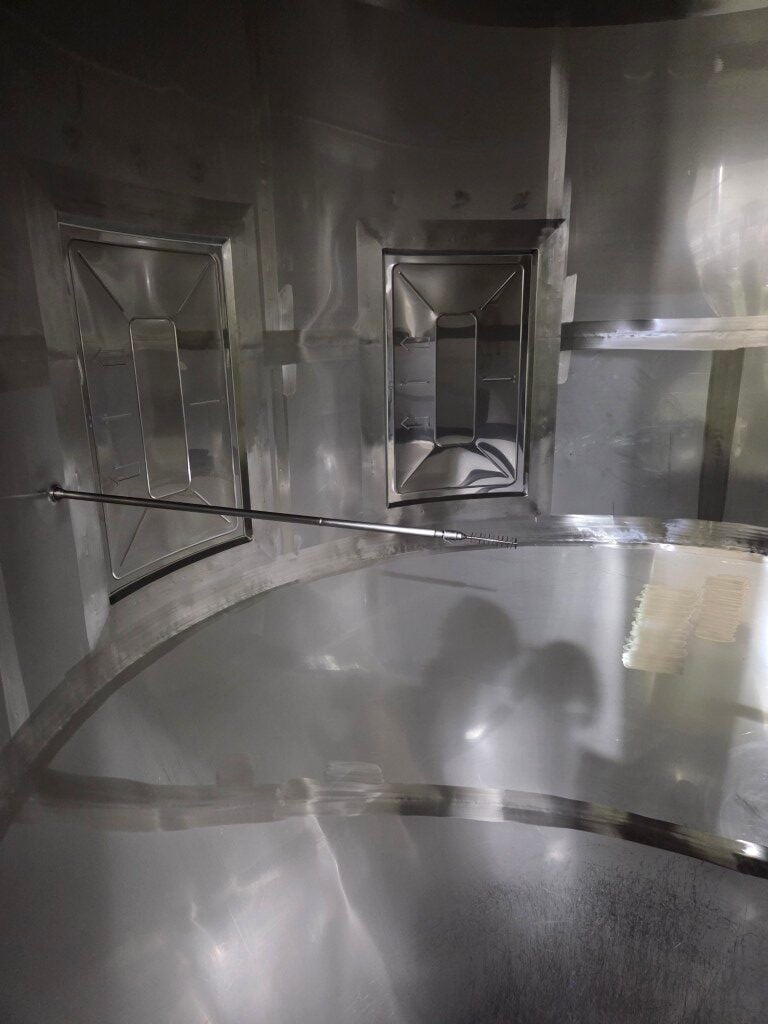

Has certified explosive venting (REMBE Q vents)
