Decanter

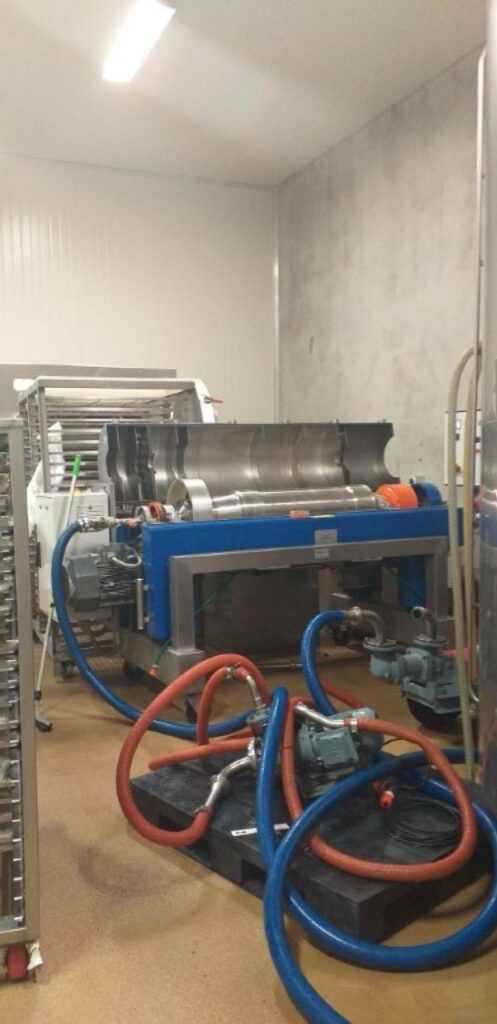

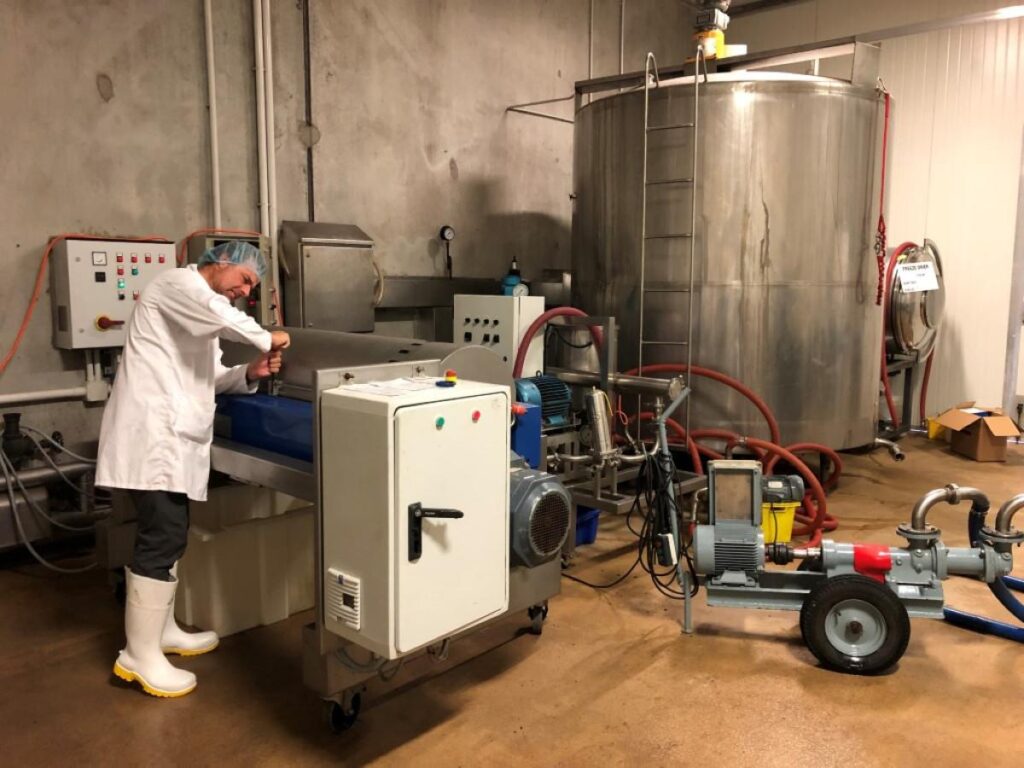

This used/secondhand decanter comes complete with a control panel and is mounted on wheels.

The seller has outlined: Recently received a full major service and is appropriately packed down and palletised for shipping ex Auckland.

It was described by the servicing engineer as being in outstanding condition. It comes with a variety of dams.

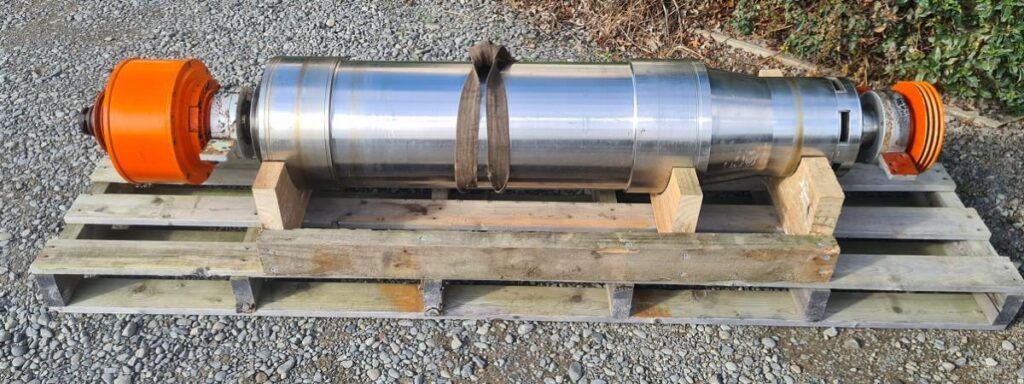

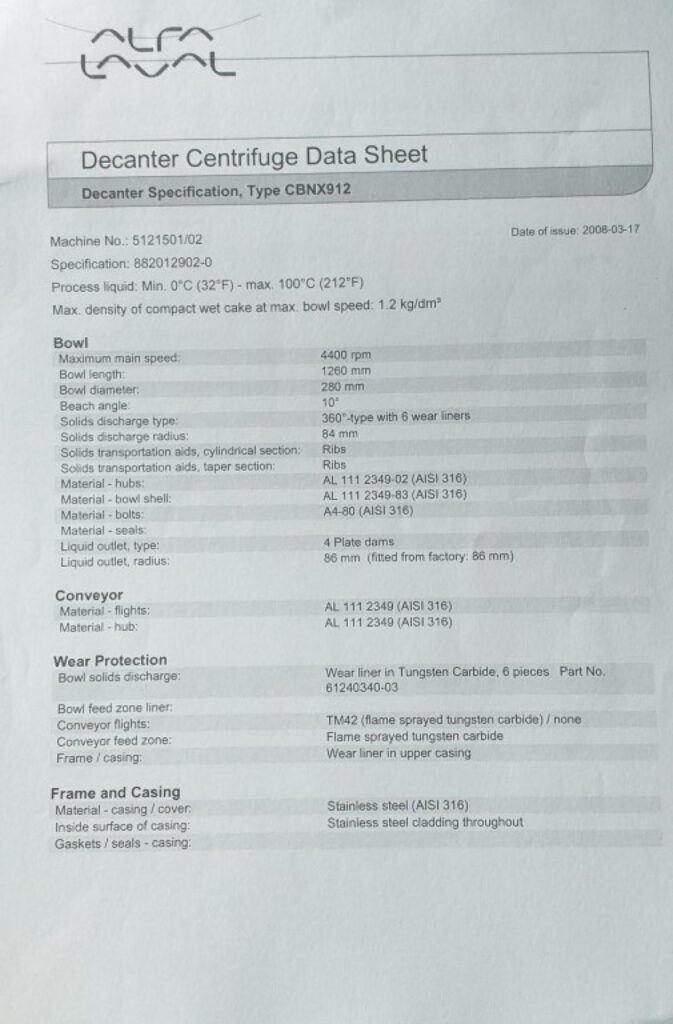

Bowl

• Maximum main speed: 4400 rpm
• Bowl length: 1260 mm
• Bowl diameter: 280 mm
• Beach angle: 10°
• Solids discharge type: 360°-type with 6 wear liners
• Solids discharge radius: 84 mm
• Solids transportation aids, cylindrical section: Ribs
• Solids transportation aids, taper section: Ribs
• Material – hubs: AL 111 2349-02 (AISI 316)
• Material – bowl shell: AL 111 2349-83 (AISI 316)
• Material – bolts: A4-80 (AISI 316)
• Material – seals:
• Liquid outlet, type: 4 Plate dams
• Liquid outlet, radius: 86 mm (fitted from factory: 86 mm)

Conveyor

• Material – flights: AL 111 2349 (AISI 316)
• Material – hub: AL 111 2349 (AISI 316)

Wear Protection

• Bowl solids discharge: Wear liner in Tungsten Carbide,
• 6 pieces Part No.61240340-03

Bowl feed Zone Liner:

• Conveyor flights: TM42 (flame-sprayed tungsten carbide) / none
• Conveyor feed zone: Flame-sprayed tungsten carbide
• Frame/casing: Wear liner in upper casing
• Material – flights: AL 111 2349 (AISI 316)
• Material – hub: AL 111 2349 (AISI 316)

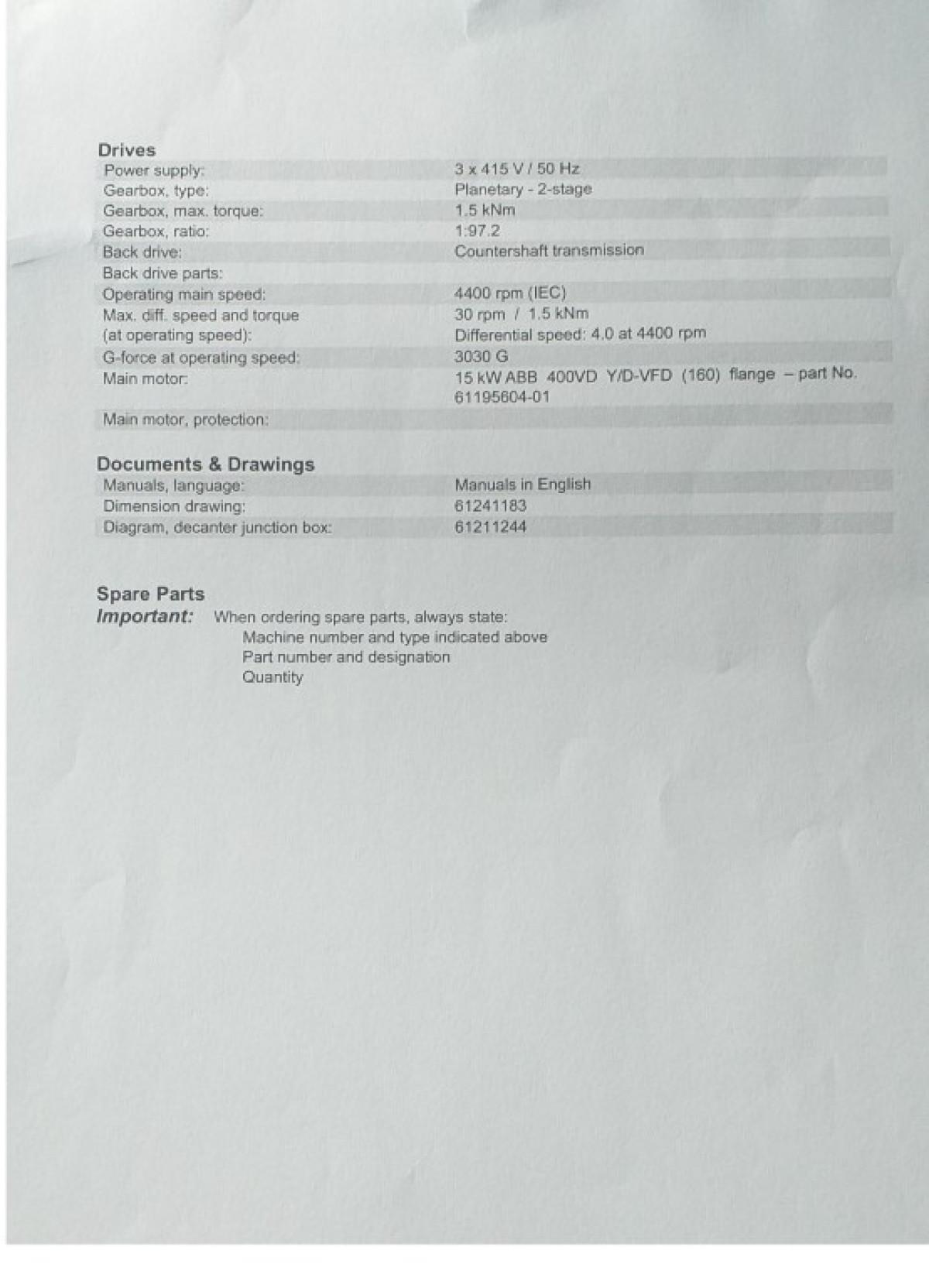

Drives

• Power supply: 3 x 415 V / 50 Hz
• Gearbox, type: Planetary – 2-stage
• Gearbox, max. torque: 1.5 kNm
• Gearbox, ratio: 1:97.2
• Back drive: Countershaft transmission
• Back drive parts:
• Operating main speed: 4400 rpm (IEC)
• Max. diff. speed and torque (at operating speed): 30 rpm / 1.5 kNm
• Differential speed: 4.0 at 4400 rpm
• G-force at operating speed: 3030 G
• Main motor: 15 kW ABB 400VD Y/D-VFD (160) flange – part No. 61195604-01

Manual Available on request
