Specifications

  • Manufacturer: Hongwuhuan
  • Model: LG15BZ
  • Condition: Good
  • Year: 2016
1 / 5

Description

Industrial-grade rotary screw air compressor complete with integrated refrigerated air dryer, ideal for workshops, manufacturing facilities, CNC machinery, fabrication, and general compressed air applications. This package delivers reliable continuous-duty compressed air with a rated flow of 2.3 m³/min at 0.8 MPa (8 bar), while the refrigerated dryer removes moisture to improve air quality and protect downstream equipment.

Manufactured in 2016, the unit includes electronic controls, safety shut-off, air/oil separation system, and matching refrigerated dryer.

Key Features

  • 15kW rotary screw air compressor
  • Continuous-duty industrial design
  • Refrigerated air dryer included
  • Electronic controller (HHW-5200)
  • Emergency stop button

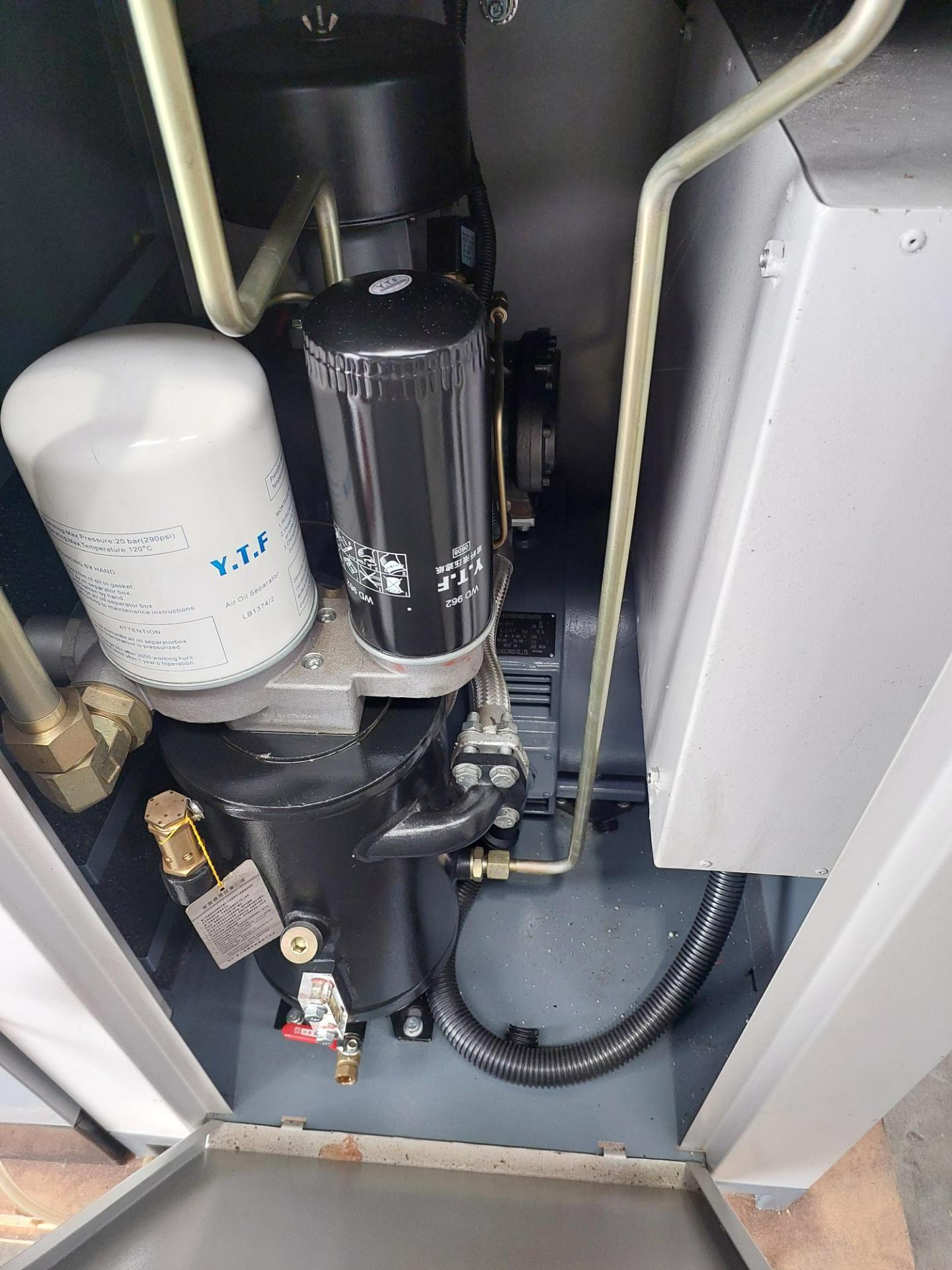

  • Air/oil separator system
  • Compact footprint
  • Low-maintenance screw compressor technology
  • Suitable for workshops, factories, CNC machines, laser cutters, and pneumatic equipment
  • Mounted as a complete compressed air package

Technical Specifications

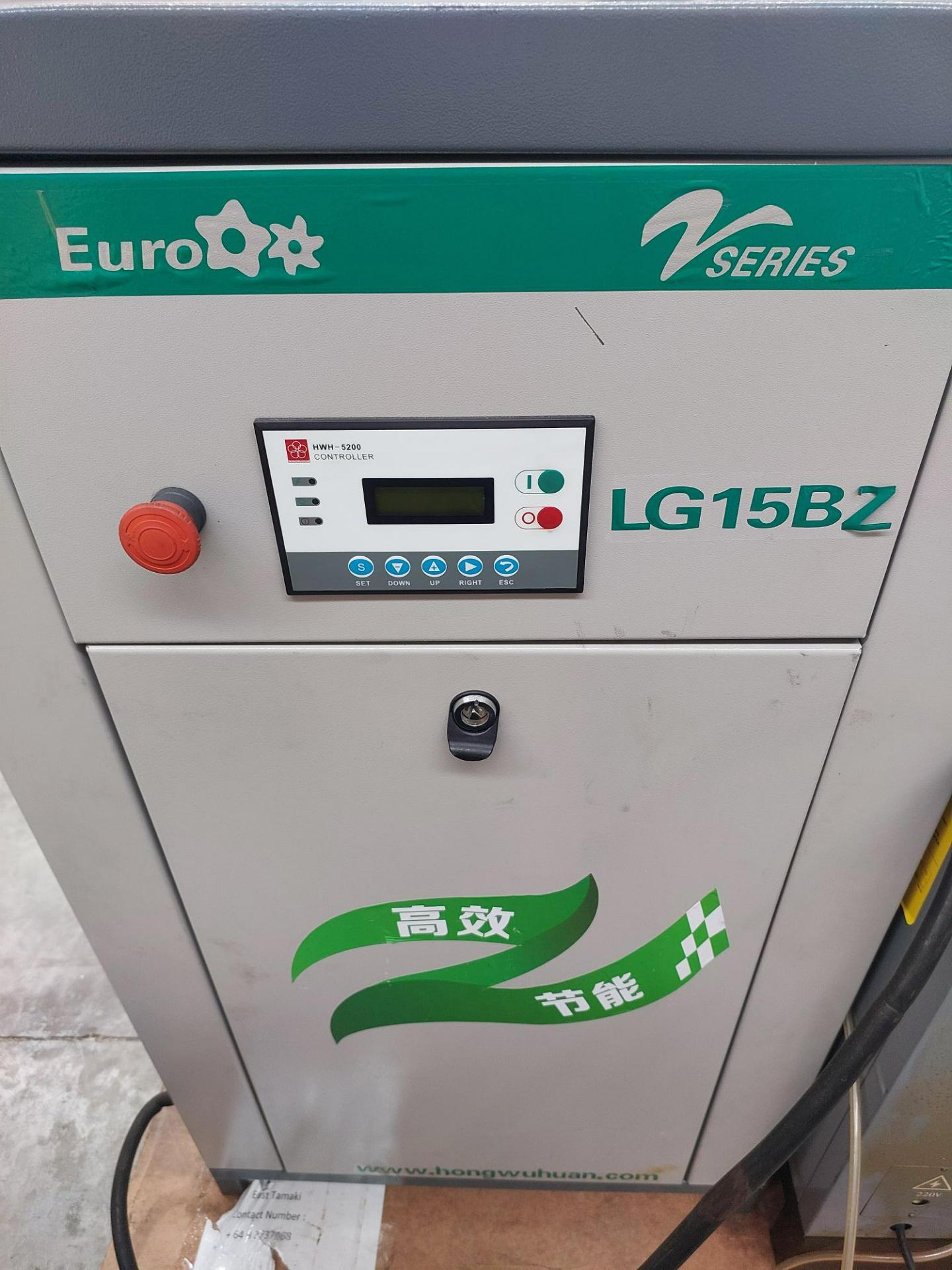

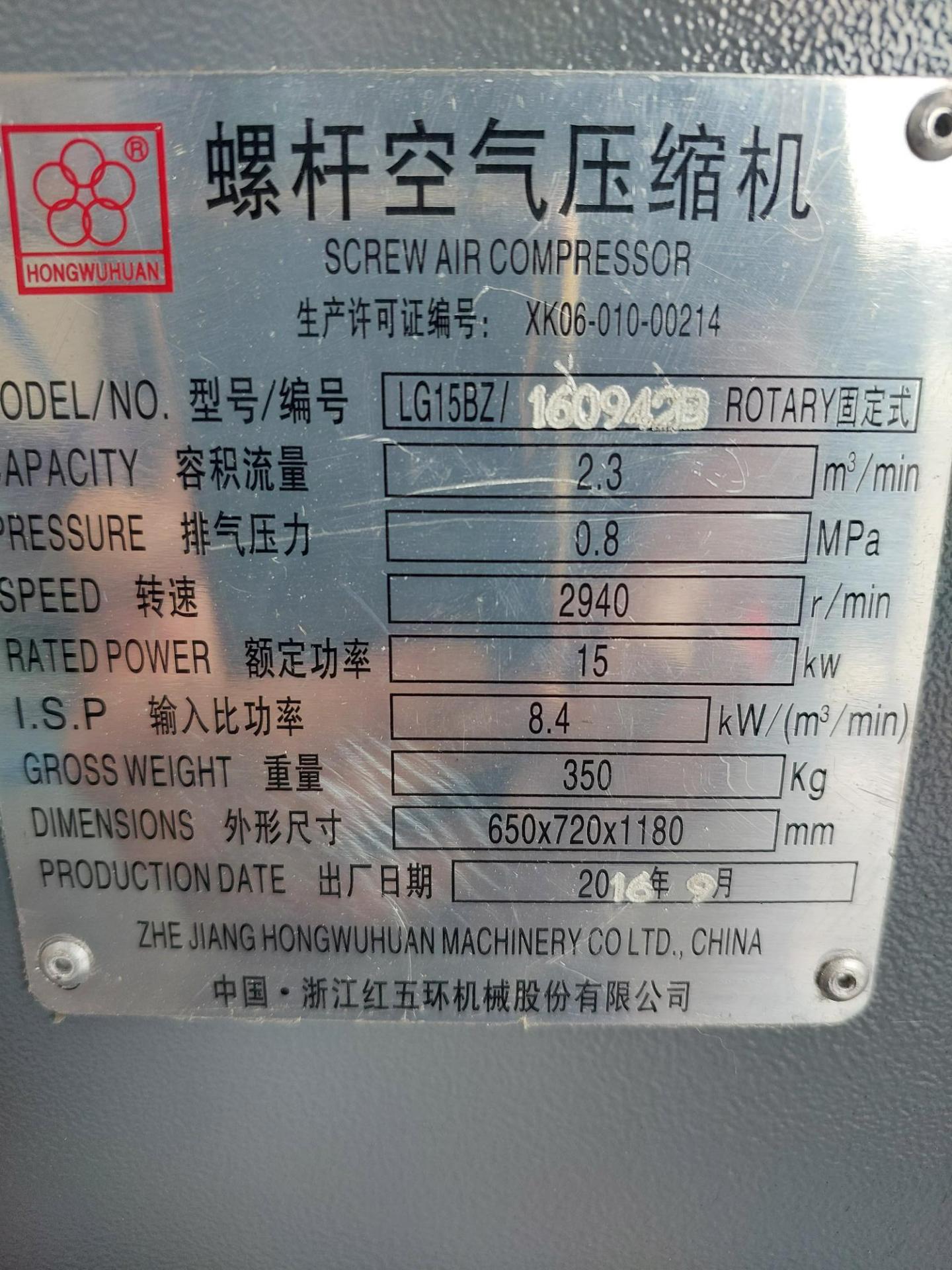

Compressor Technical Specifications

Manufacturer: Hongwuhuan Machinery Co., Ltd.
Model: LG15BZ
Type: Rotary Screw Air Compressor
Production Date: 2016

  • Rated Power: 15 kW
  • Air Delivery (FAD): 2.3 m³/min
  • Working Pressure: 0.8 MPa (8 bar / 116 psi)
  • Motor Speed: 2940 rpm
  • Specific Power: 8.4 kW/(m³/min)
  • Weight: 350 kg
  • Dimensions: 650 × 720 × 1180 mm

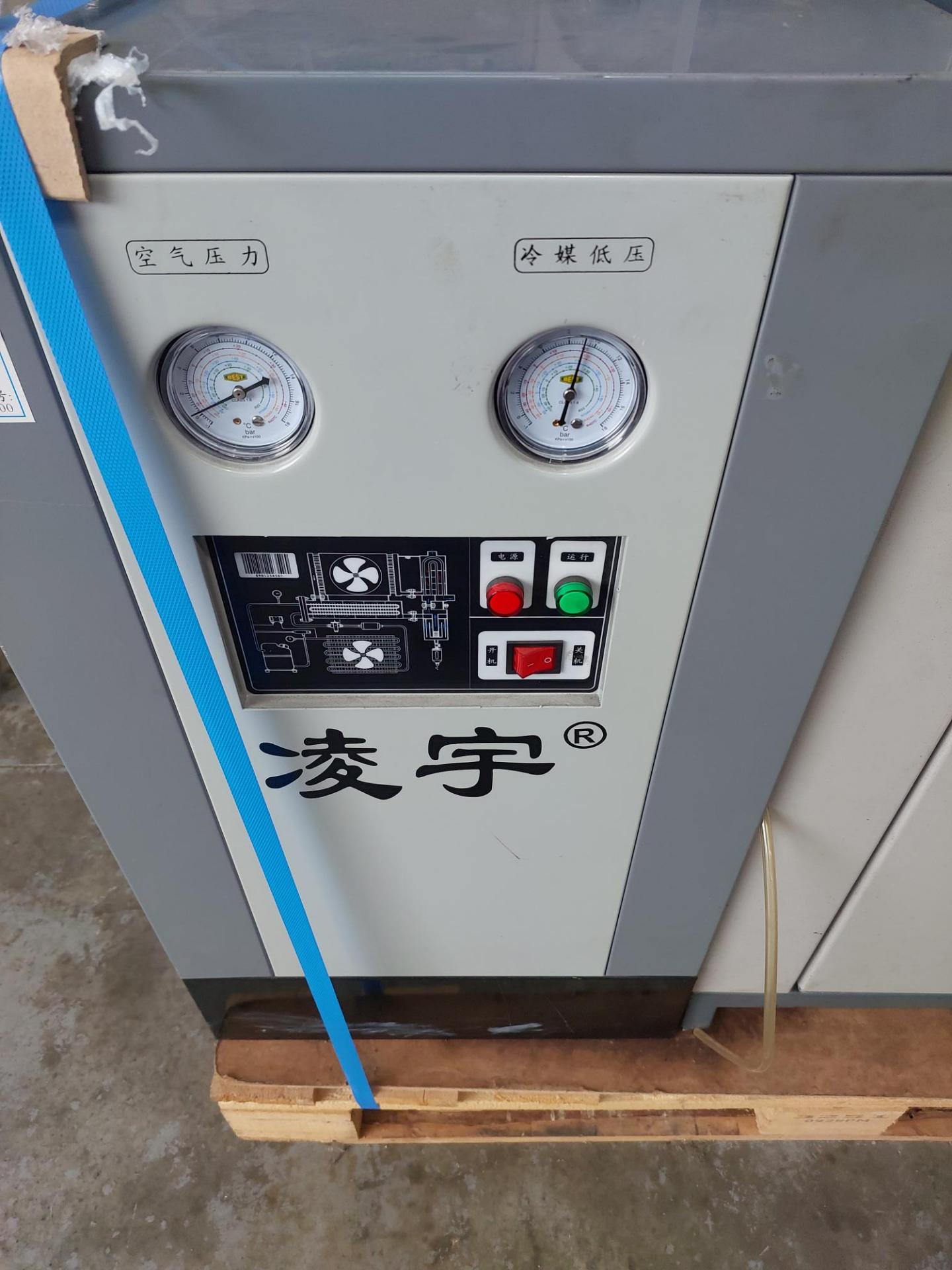

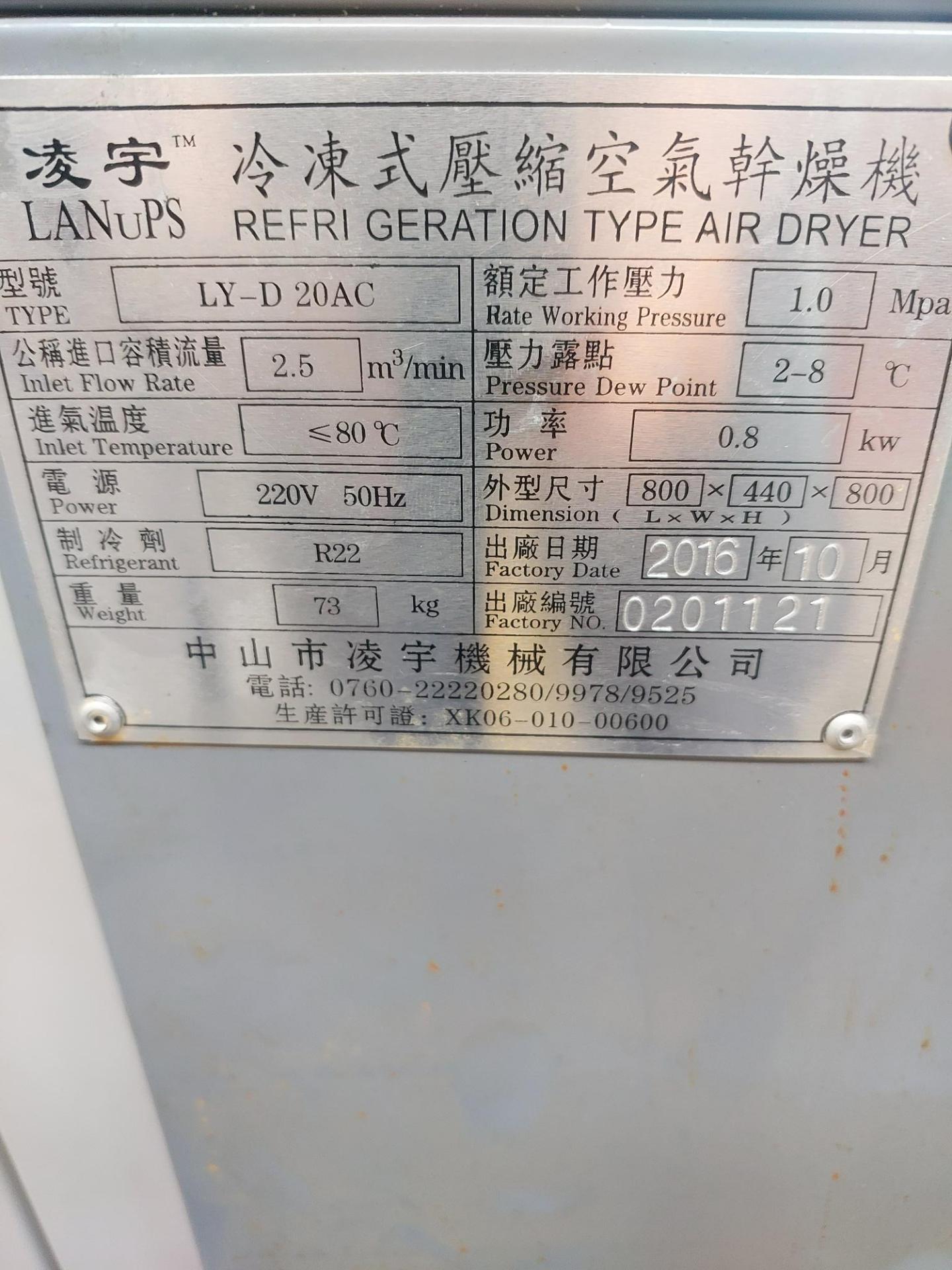

Refrigerated Air Dryer Specifications

Manufacturer: LANUPS
Model: LY-D20AC
Type: Refrigerated Air Dryer
Production Date: October 2016

  • Flow Capacity: 2.5 m³/min
  • Rated Working Pressure: 1.0 MPa
  • Pressure Dew Point: 2–8°C
  • Power Consumption: 0.8 kW
  • Power Supply: 220V, 50Hz
  • Maximum Inlet Temperature: ≤80°C
  • Refrigerant: R22
  • Weight: 73 kg
  • Dimensions: 800 × 440 × 800 mm
