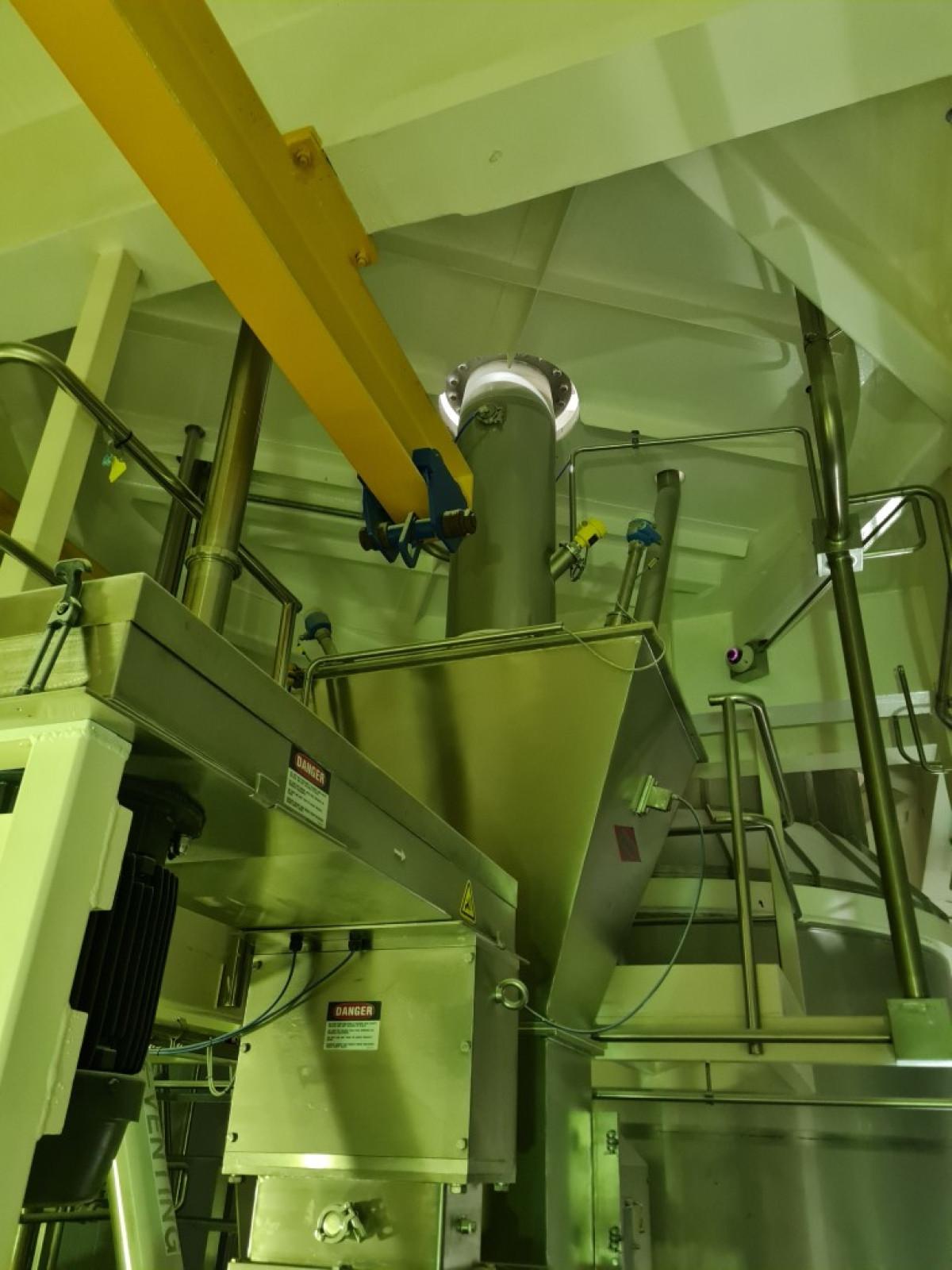

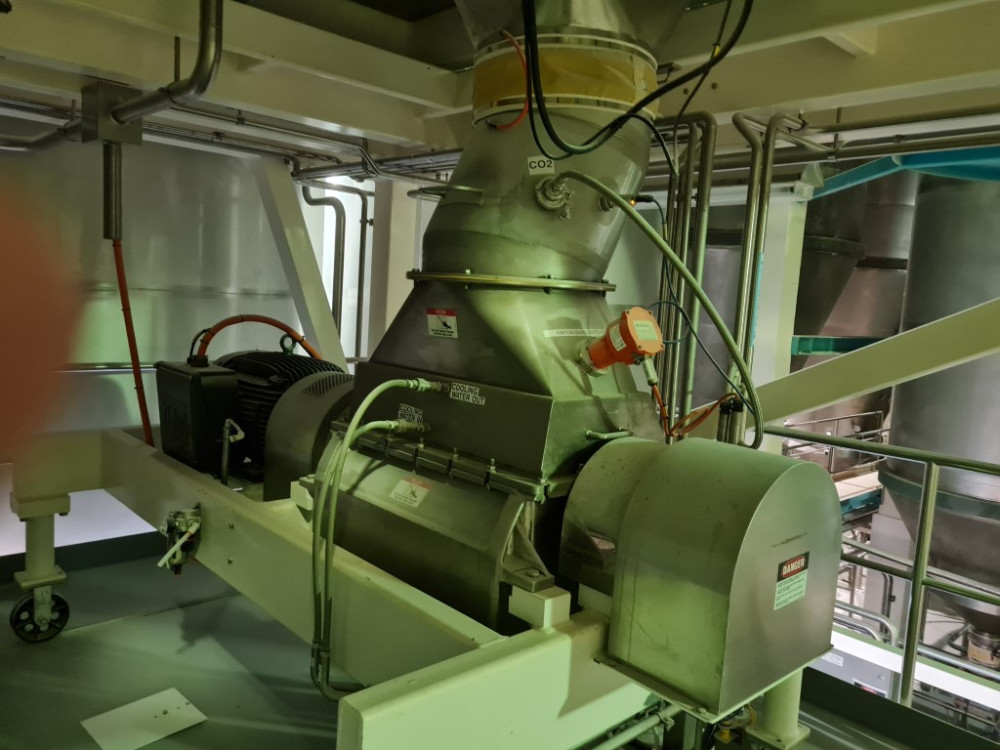

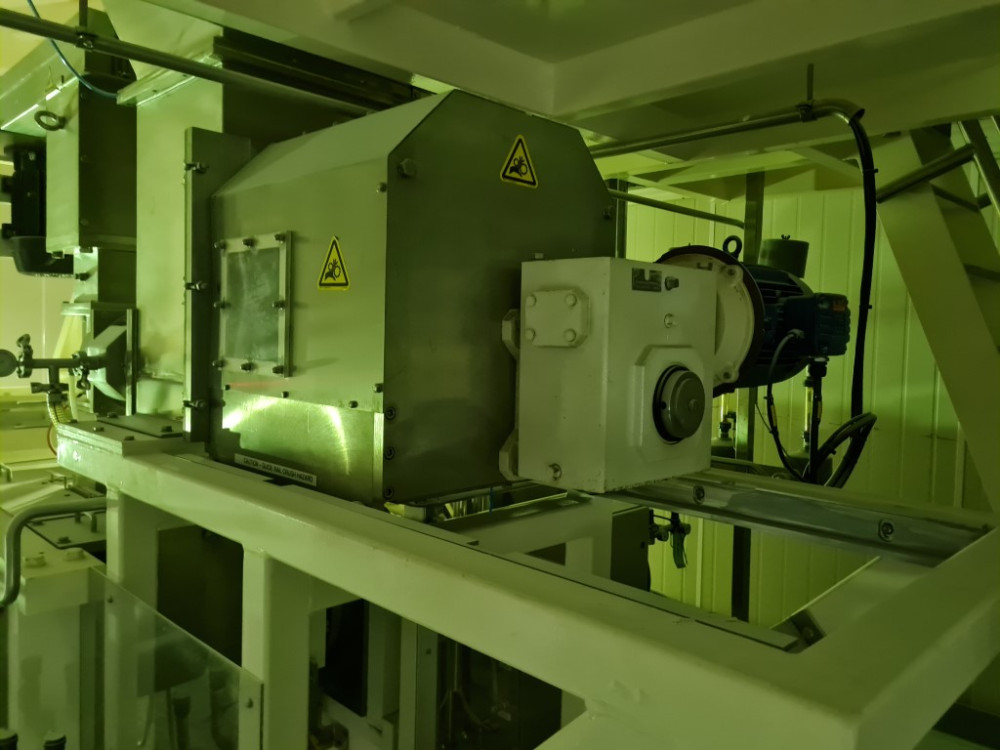

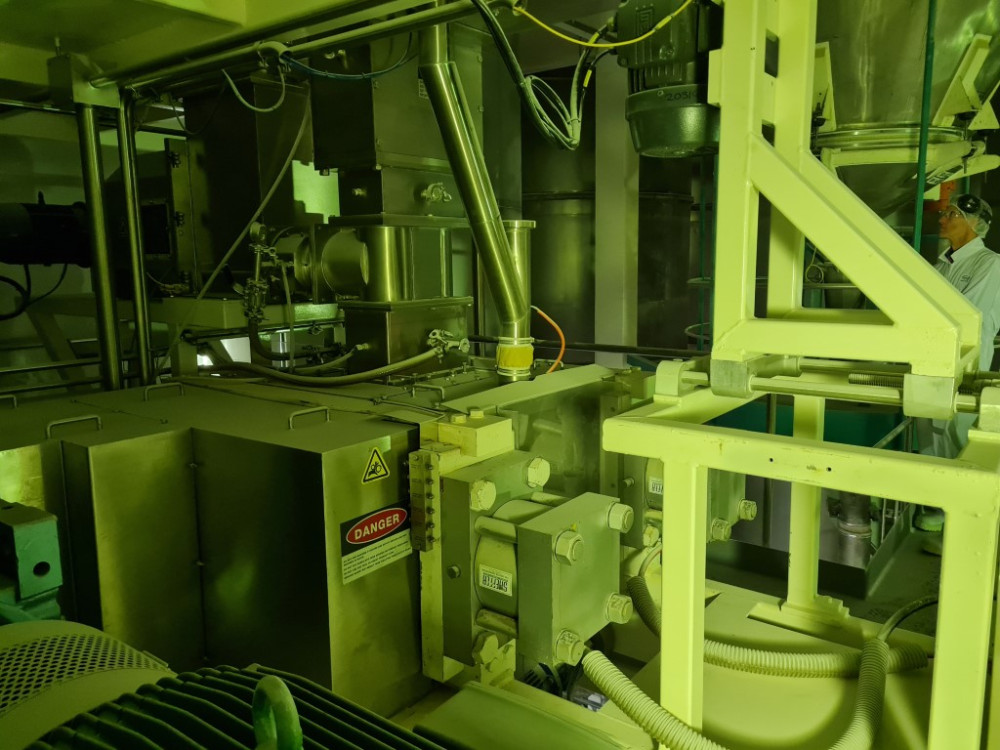

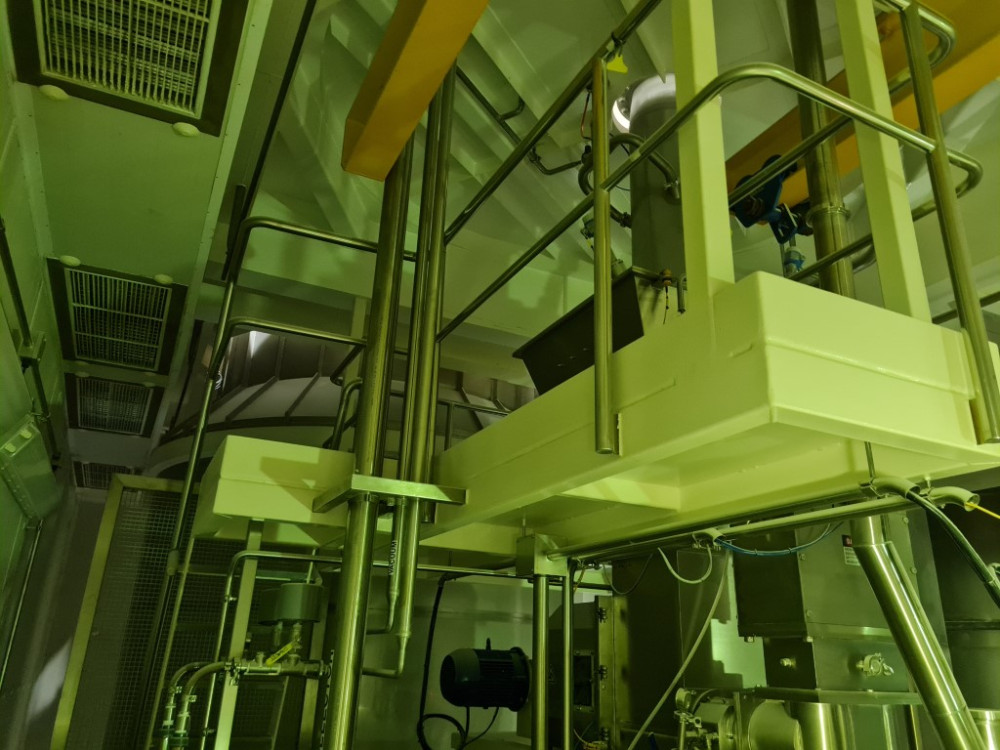

Chilsonator / Fitzpatrick Milling System & GTM Vibratory Screen

192081 - 1

Request a Quote

Specifications

Description

Key Features

  • Improved powder flow
  • Reduced dust during handling
  • Controlled and repeatable particle sizing
  • Compaction prior to downstream processing
  • Screening for more consistent final product output

Technical Specifications

  • Maximum Capacity Throughput - 5,800 kilograms per hour
  • Rolls 16" (406.4mm) Long x 20" (508mm) Diameter Roller Speed between 6 to 24 rpm
  • Chamber Model No: HAS030, Capacity Factor: 9.05
  • Nominal Width 30" (762mm)
  • Screen Area 986 Sq Ins,
  • Rotor Diameter 17.25"
  • No Rotor Blades: 80
  • Maximum Rotor Speed 2,400 rpm
  • Maximum Power 110kW
  • Approximate Dimension 68" (1,727mm) Long x 60" (1,524mm) Wide x 75" (1,905mm) High

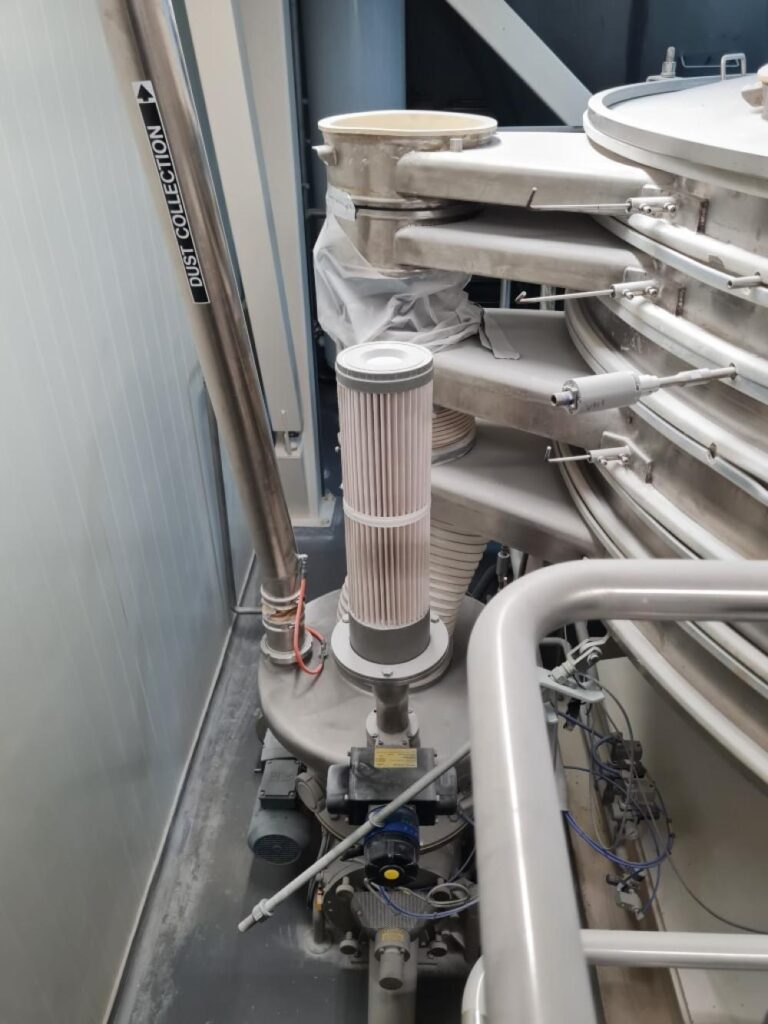

  • GKM Screen Model No: 2400 / 2600
  • Screen Area 5.31m Sq, Diameter 2.65m, Motor Power 7.5kW, Weight 2,700 kg, 5 Screen Decks x 2,046mm High.
