Line

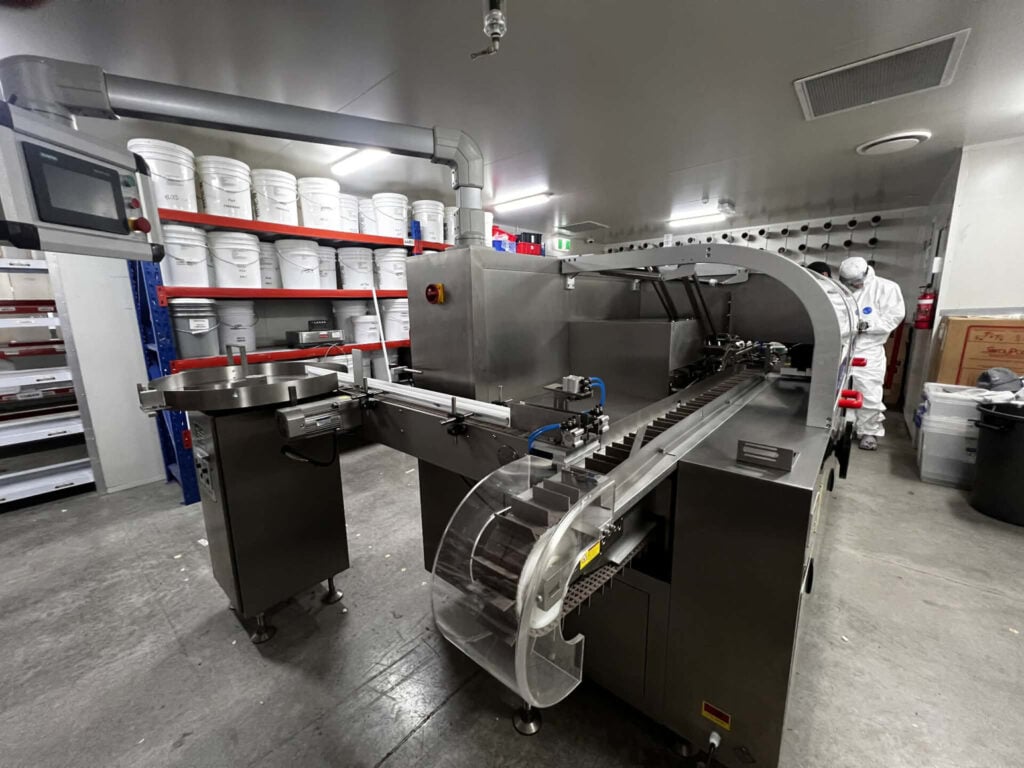

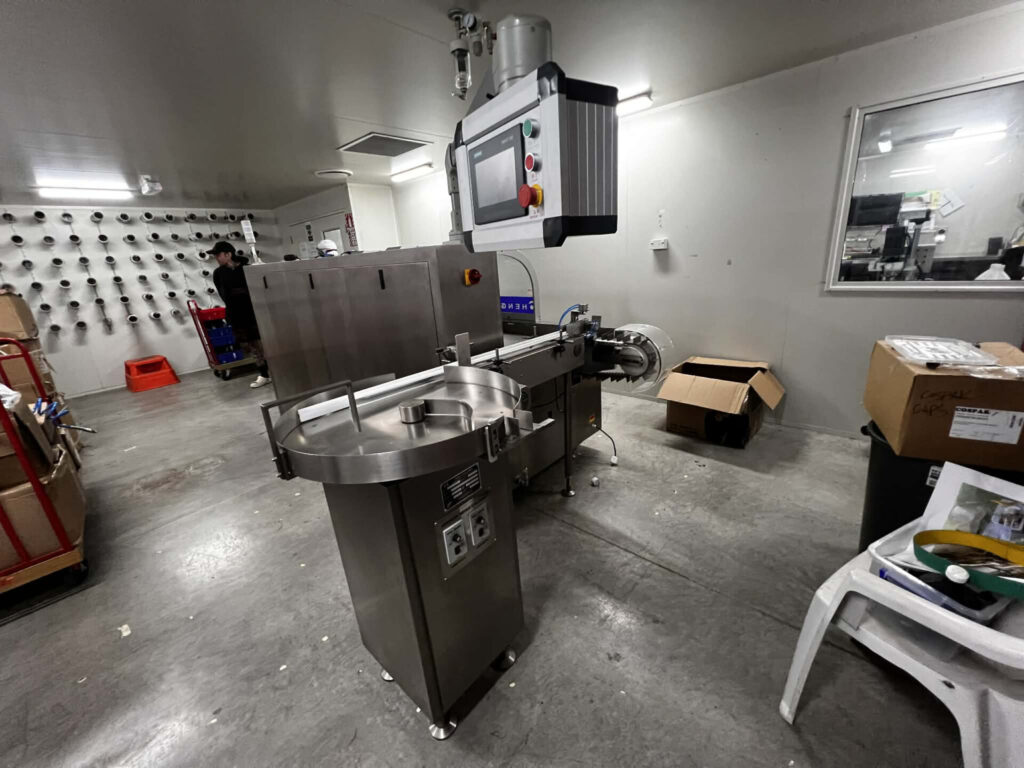

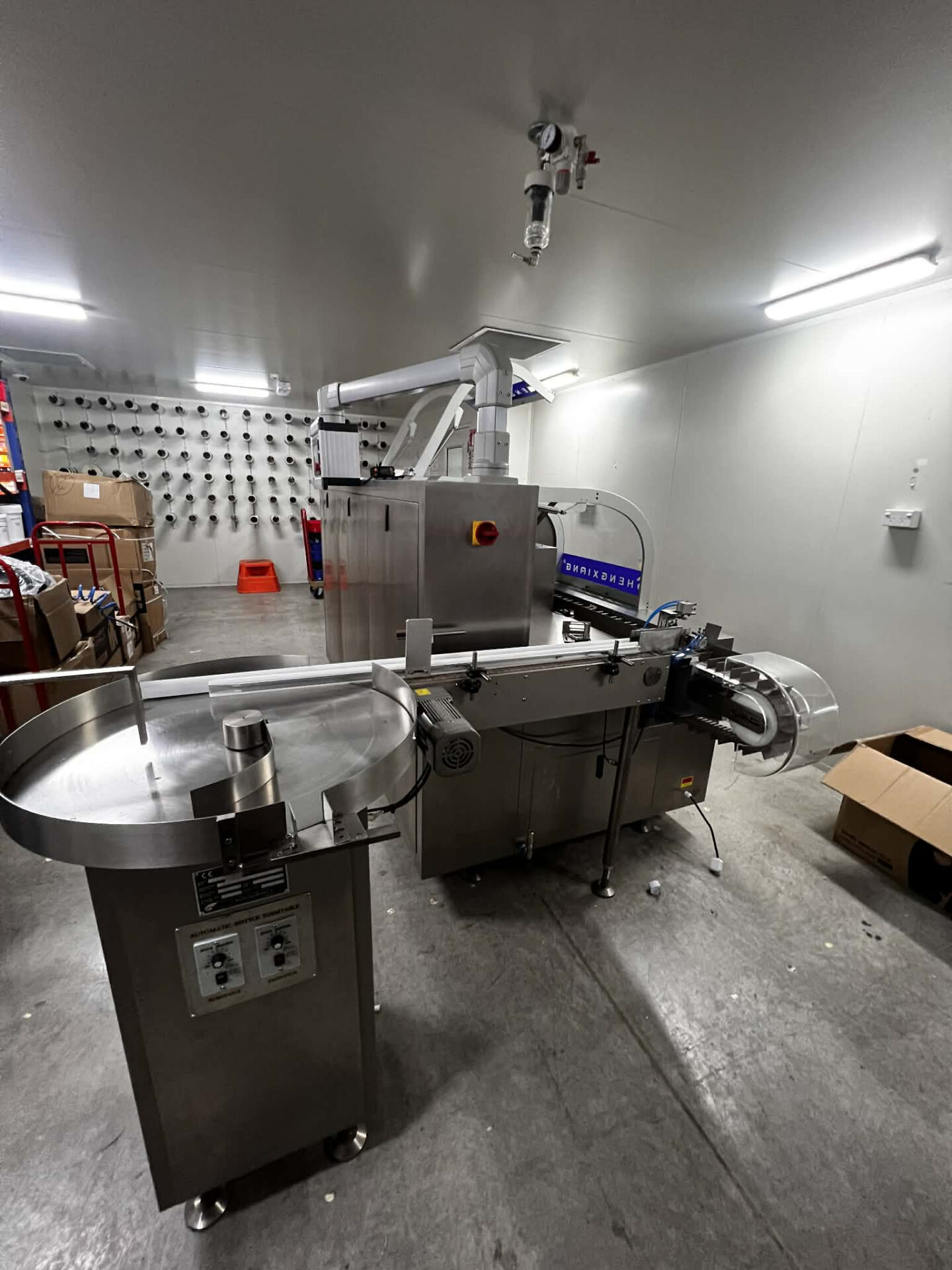

Boxing Machine

195072 - 1

Request a Quote

Specifications

Description

Key Features

  • Continuous motion cartoning system for stable, high-speed operation
  • Integrated product conveying, carton feeding, and packing modules
  • Encoder-controlled system for precise synchronisation and accuracy
  • Flexible feeding system adaptable to different upstream equipment
  • Quick and easy format changeover for varying carton sizes
  • Designed to meet GMP standards for hygienic production environments
  • Compact footprint suitable for existing production layouts
  • Reduces manual handling and improves packaging consistency

Technical Specifications

  • Machine Dimensions: 1300 (L) × 1200 (W) × 1500 (H) mm
  • Carton Size Range:
    • Length: 49–120 mm
    • Width: 25–80 mm
    • Height: 25–55 mm
  • Packaging Speed: 40–100 cartons/min
  • Air Consumption: 5–8 L/min
  • Total Power: 1.5 kW
  • Voltage: 220V / 380V / 50Hz
  • Weight: Approx. 950 kg
