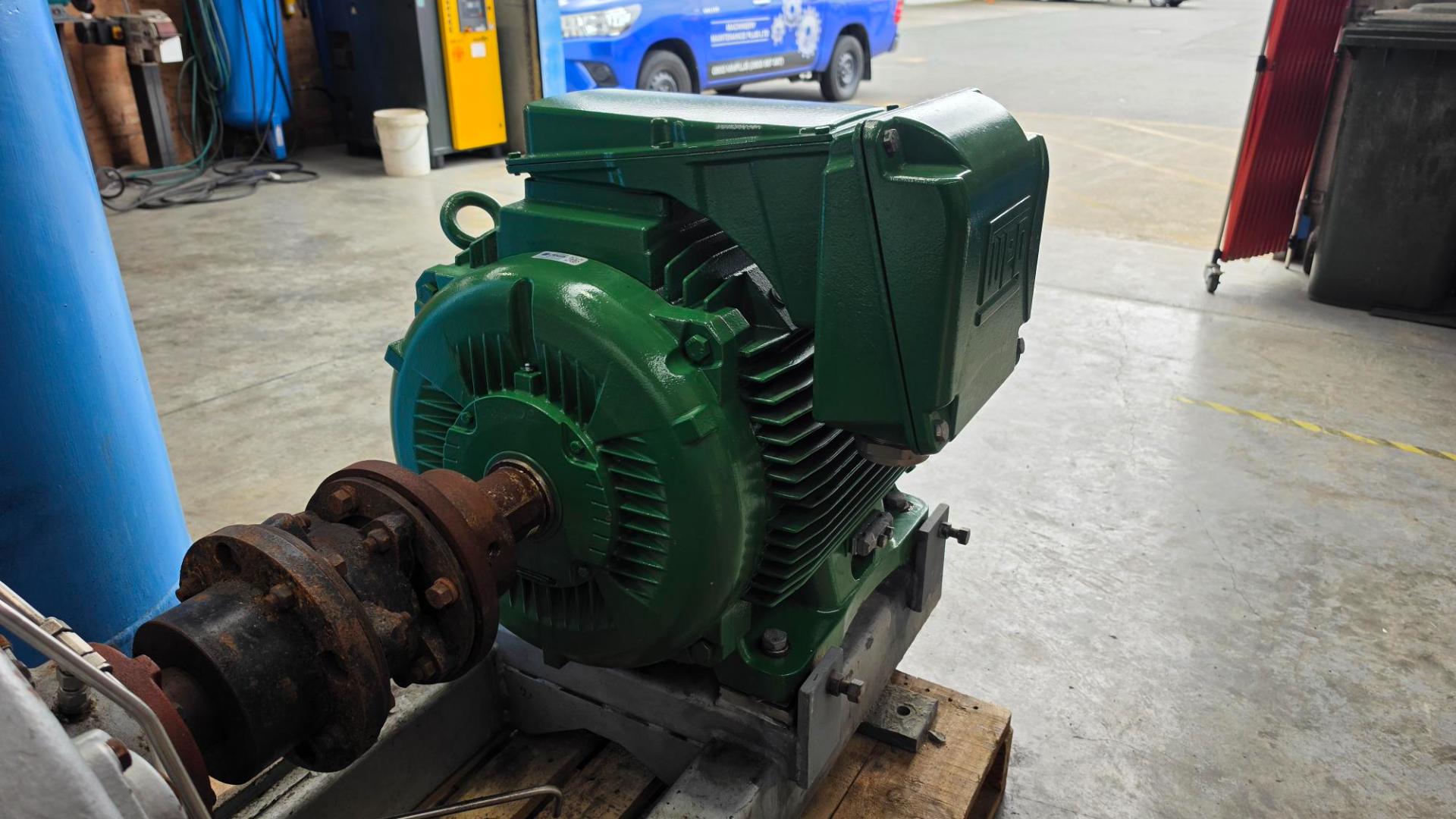

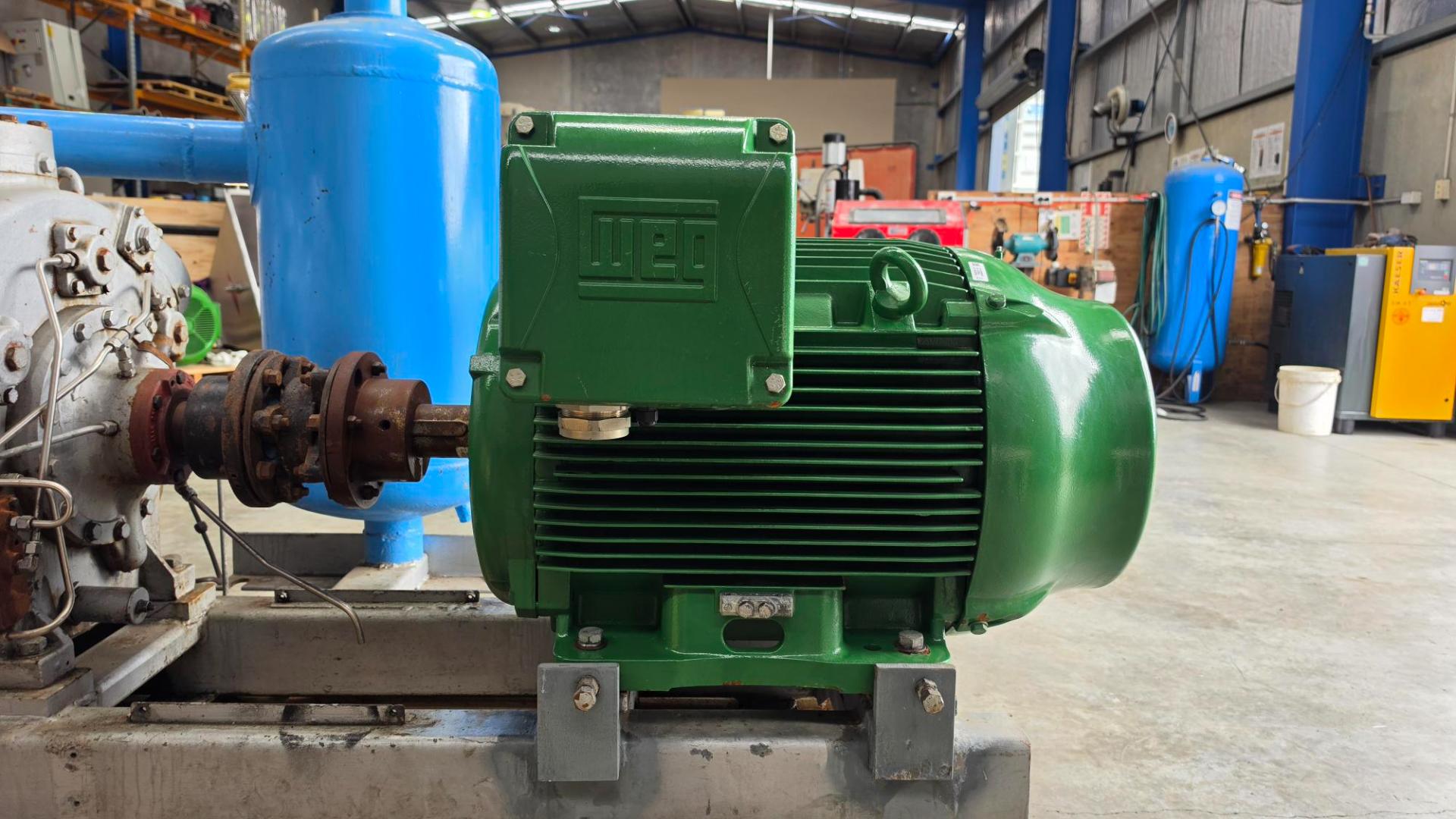

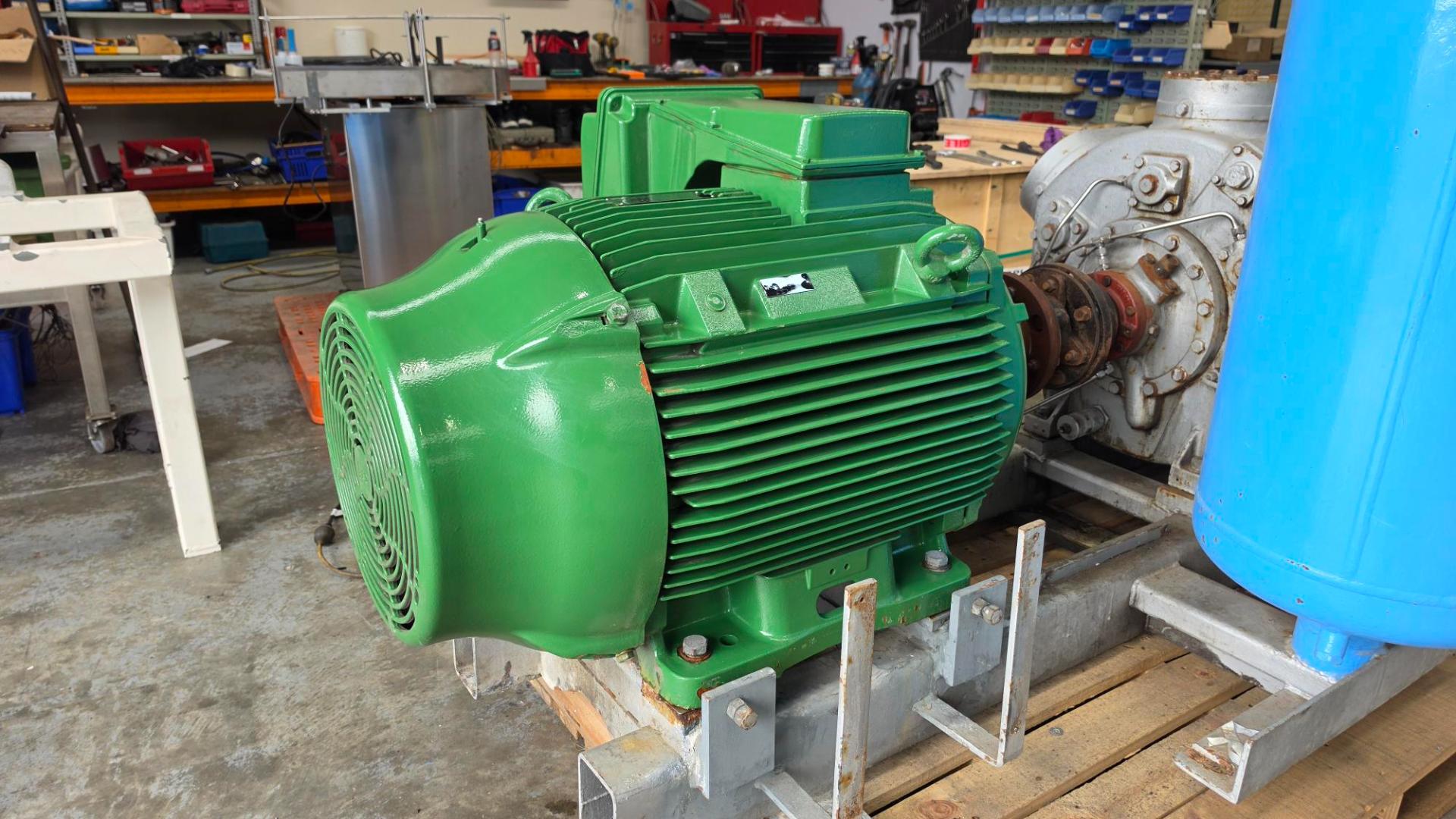

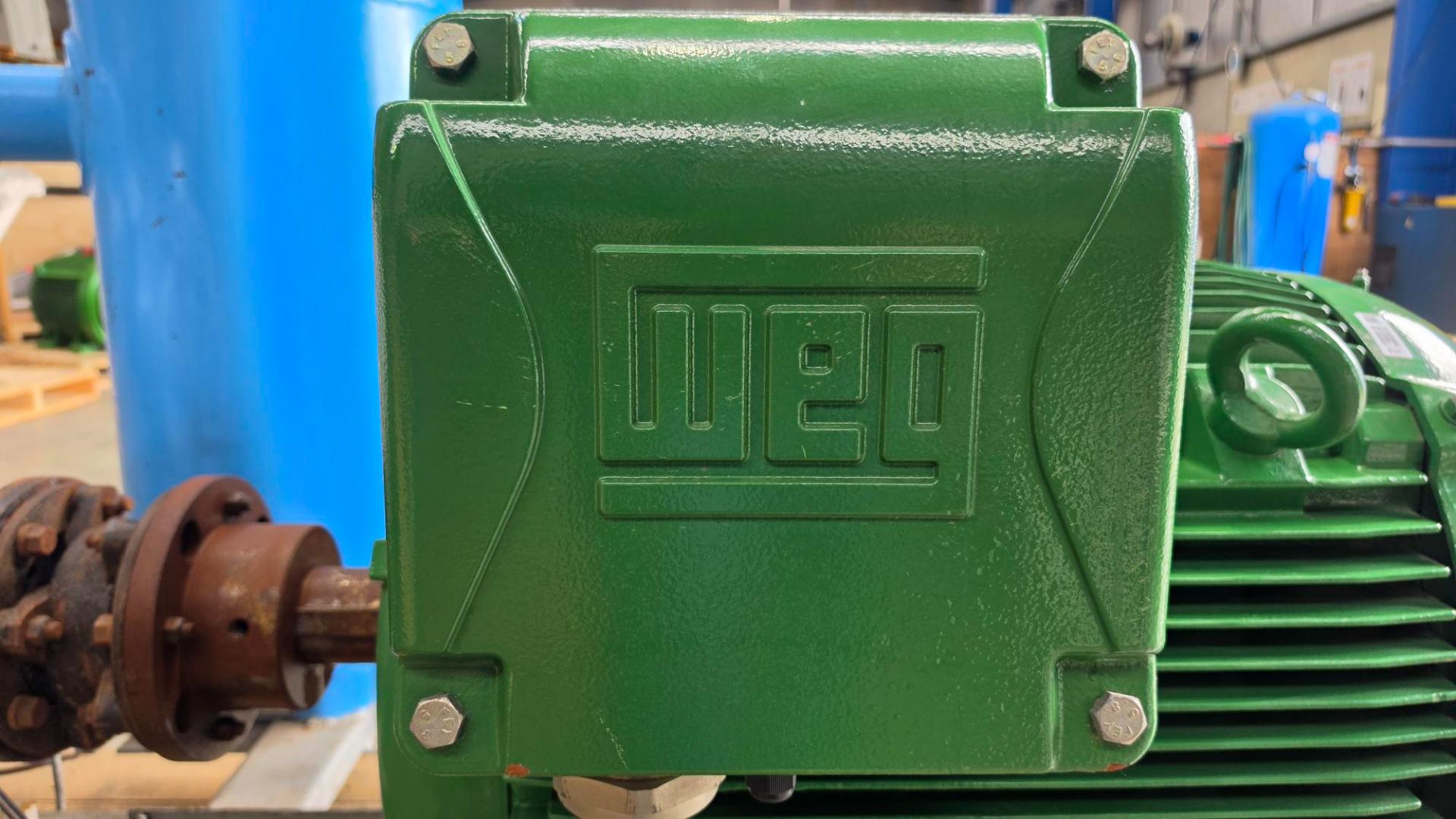

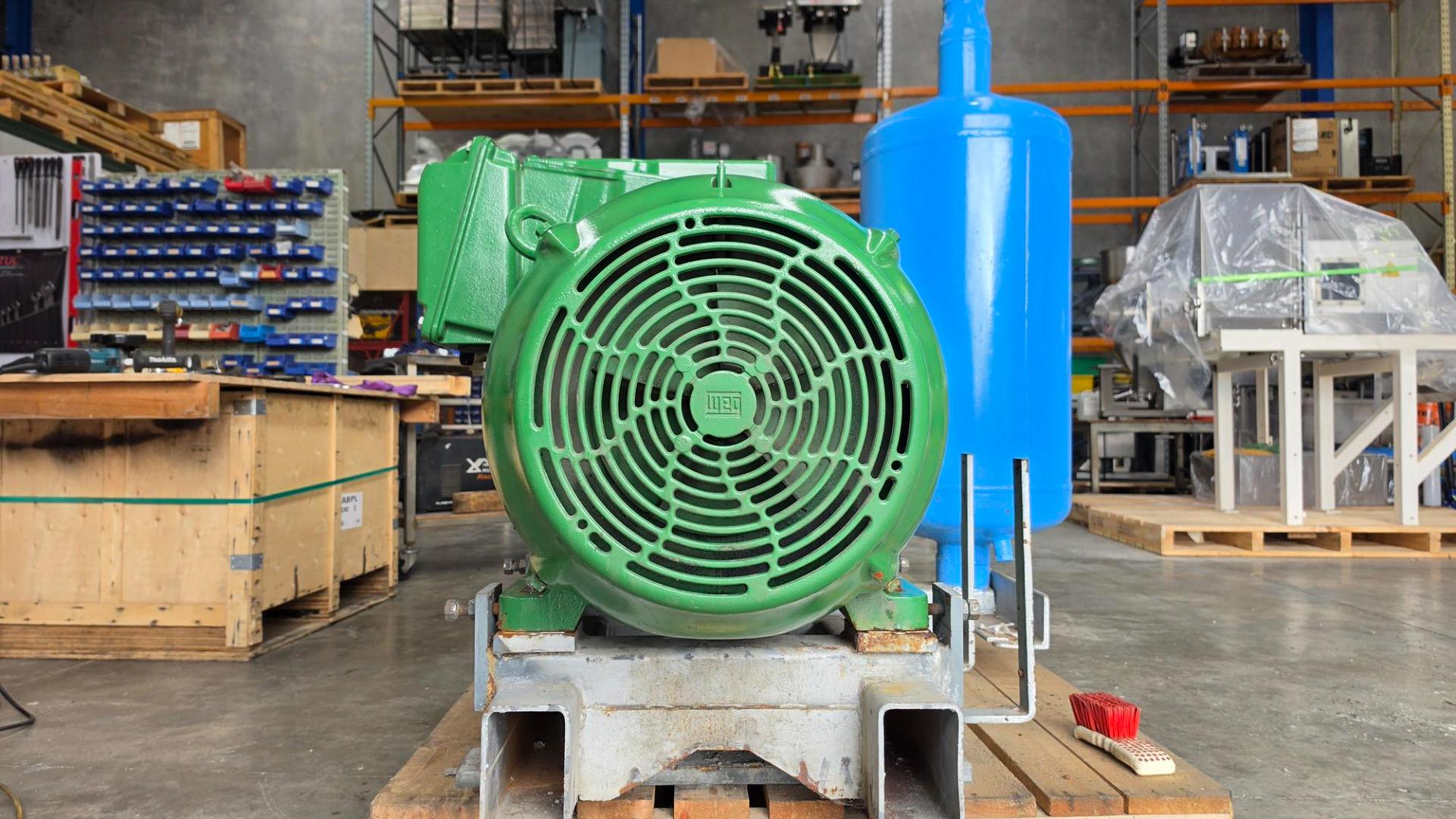

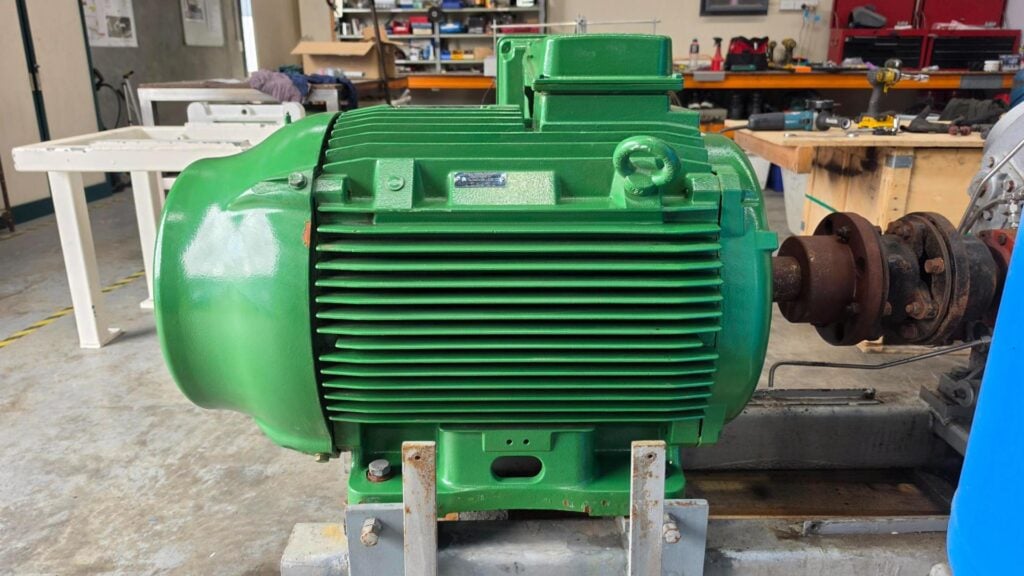

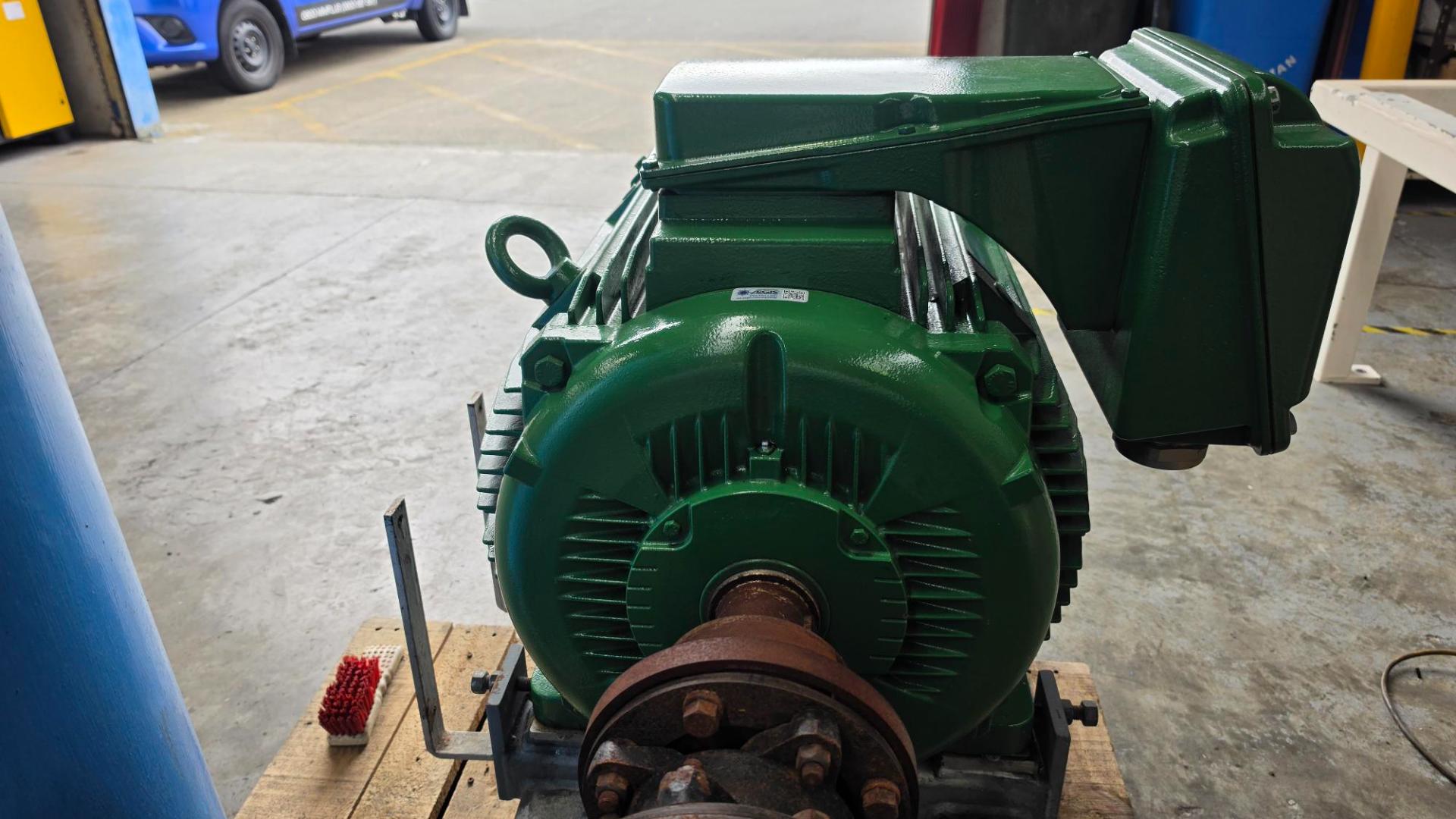

WEG W22 132 kW Premium Efficiency Electric Motor

195302 - 1

Request a Quote

Specifications

Description

Key Features

  • WEG W22 Premium Efficiency motor
  • Heavy-duty cast iron construction
  • 132 kW output
  • 4-pole design
  • Continuous duty (S1)
  • IP66 protection
  • Factory-fitted thermistor winding protection
  • AEGIS Shaft Grounding Ring installed
  • Suitable for inverter/VSD applications
  • Foot-mounted configuration
  • Excellent overall condition

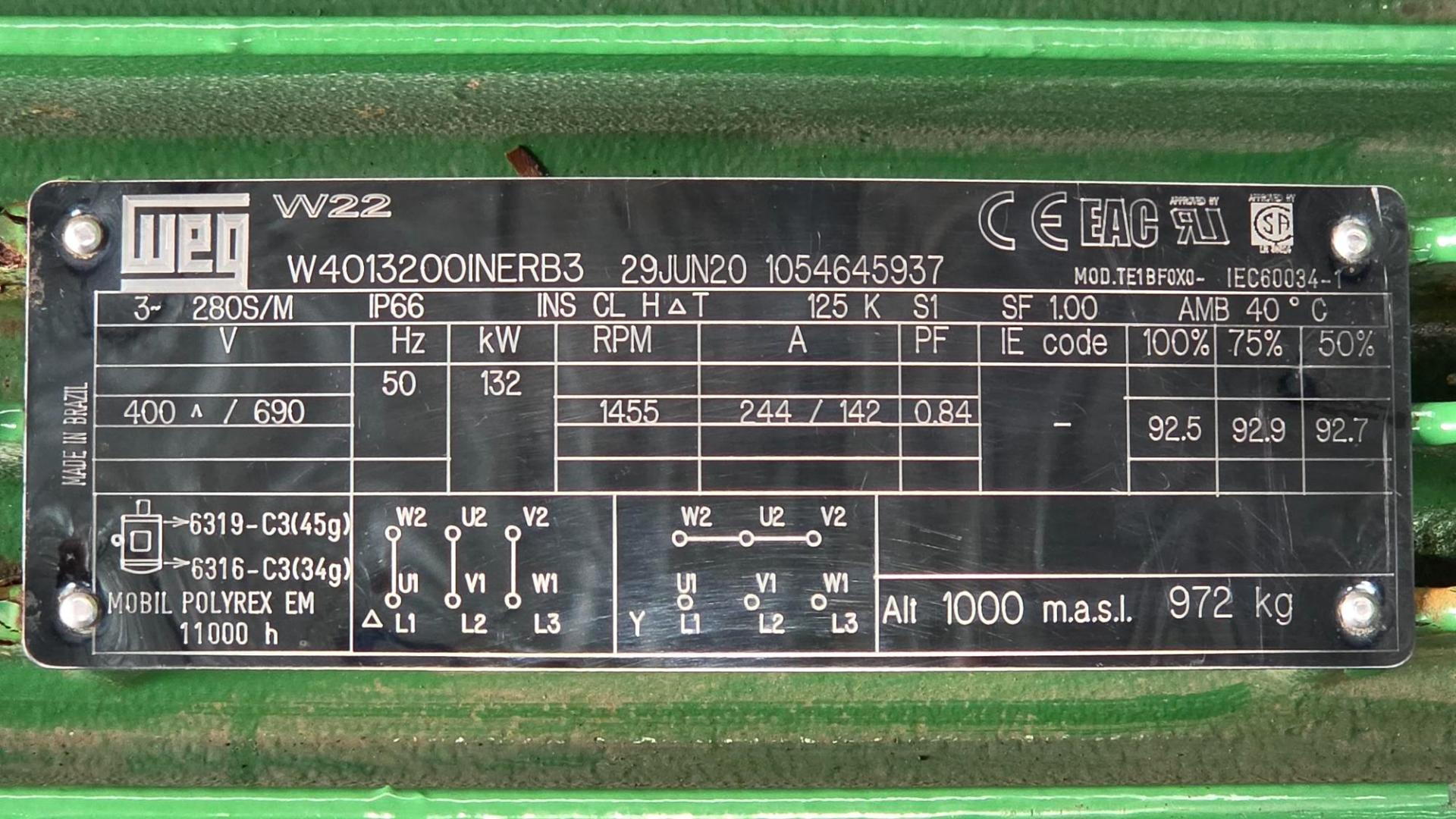

Technical Specifications

  • Manufacturer: WEG
  • Series: W22
  • Model: W4013200INERB3
  • Year of Manufacture: 2020
  • Serial Number: 1054645937
  • Motor Type: Three-phase induction motor
  • Power: 132 kW
  • Voltage: 400/690 V
  • Frequency: 50 Hz
  • Speed: 1,455 RPM
  • Current: 244 / 142 A
  • Power Factor: 0.84
  • Duty Rating: S1 (Continuous)
  • Insulation Class: Class H
  • Temperature Rise: 125 K
  • Protection Rating: IP66
  • Ambient Temperature: 40°C
  • Frame Size: 280S/M
  • Efficiency (100% Load): 92.5%
  • Weight: 972 kg
  • Mounting: Foot mounted (B3)
  • Bearing Lubrication: Mobil Polyrex EM

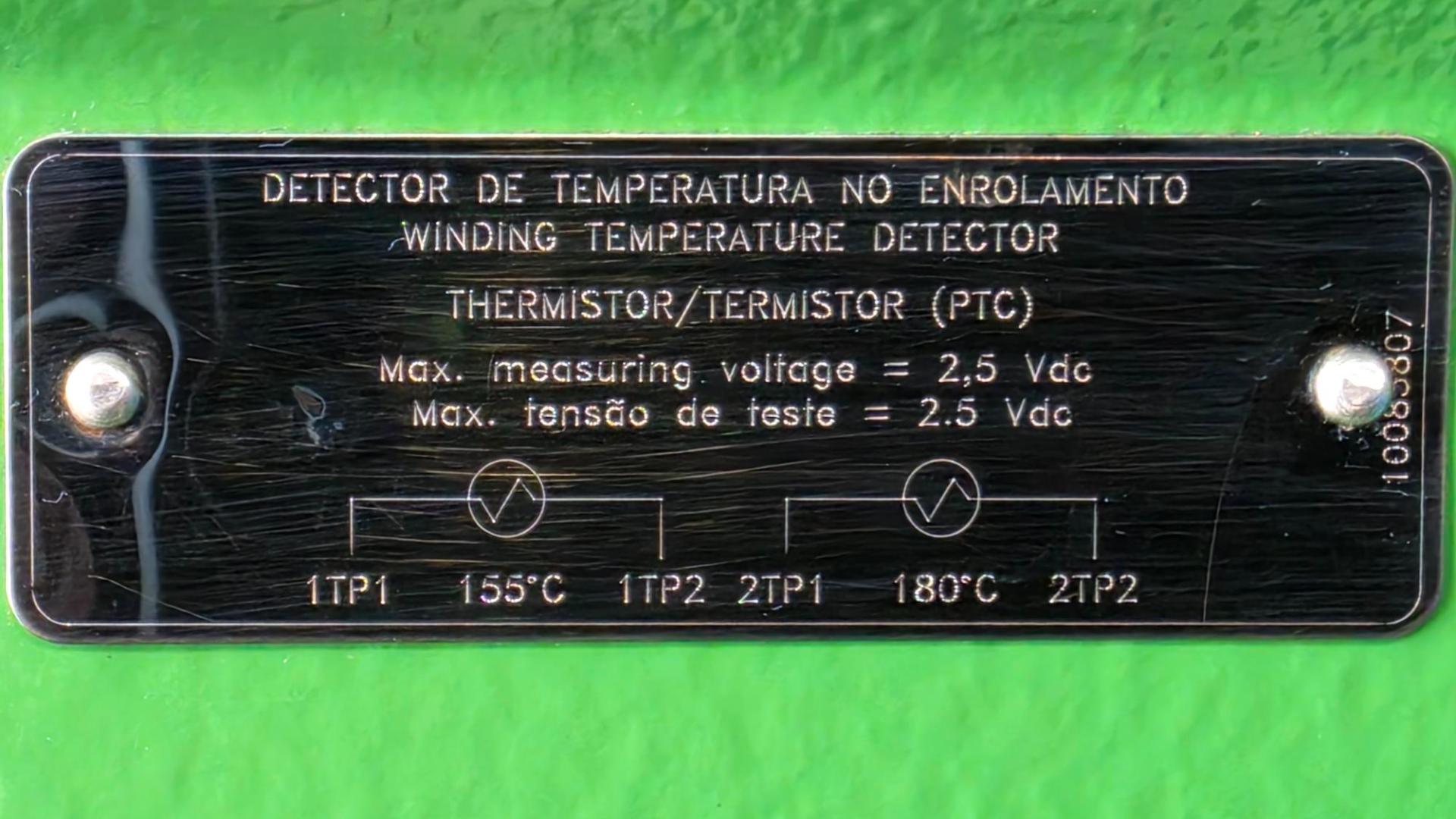

  • Winding Protection: PTC Thermistors
  • Additional Feature: AEGIS Shaft Grounding Ring
