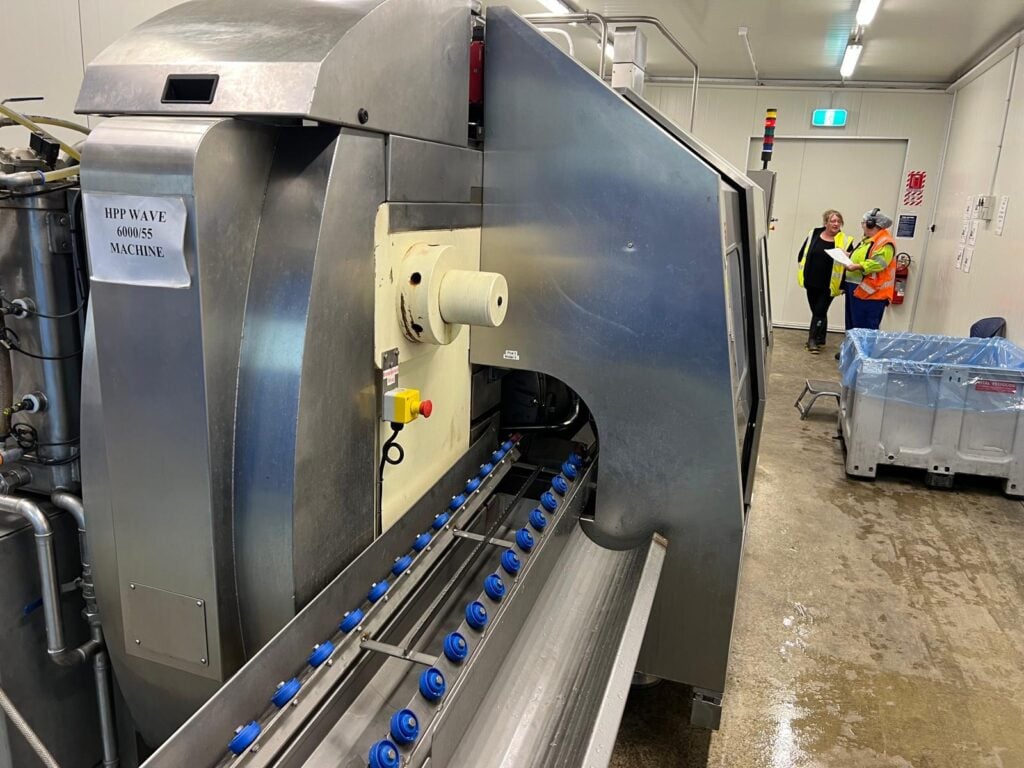

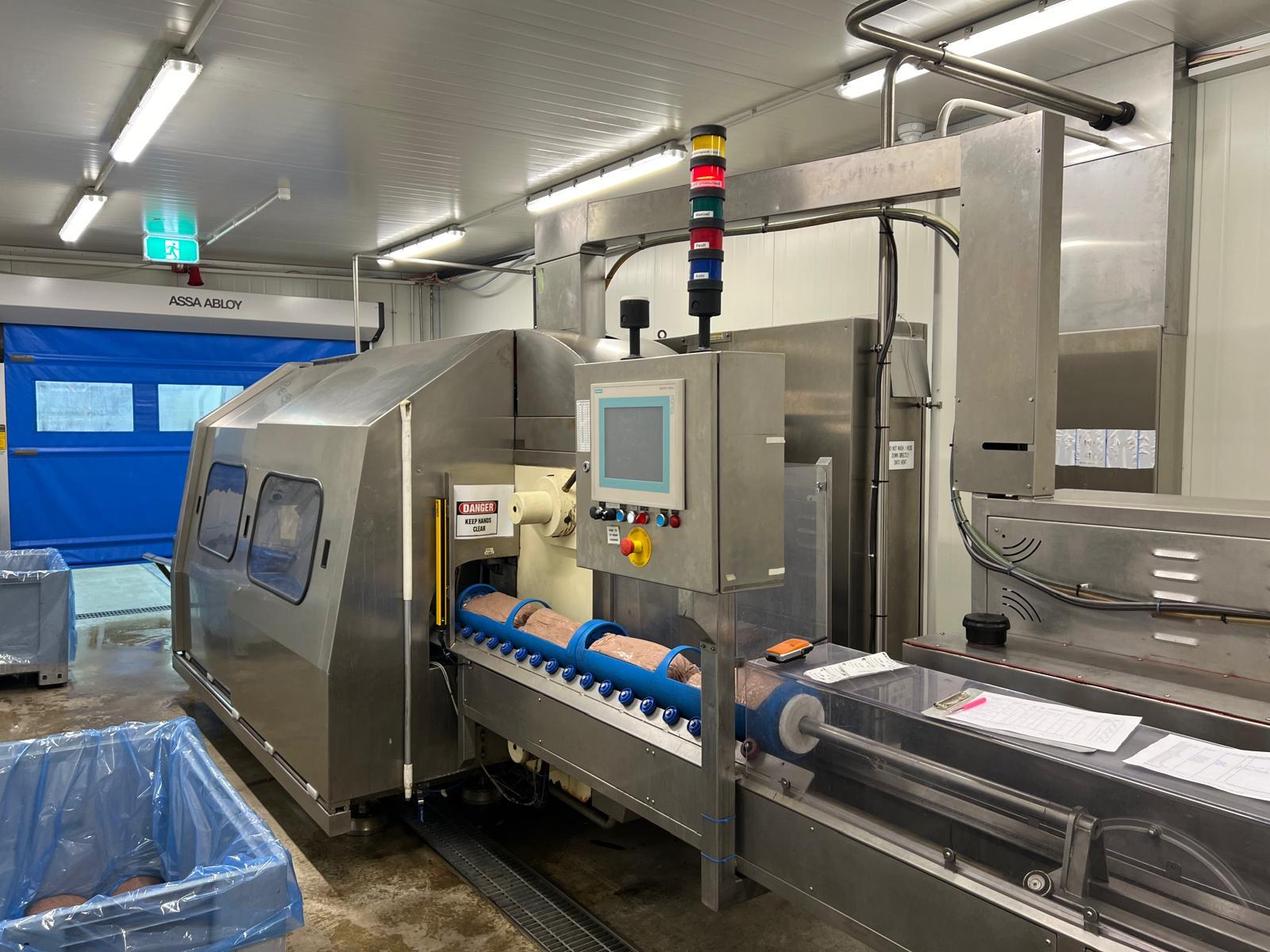

Wave 6000/55 High Pressure Processing (HPP) System – Hyperbaric (Hiperbaric)

194423 - 13

Request a Quote

Specifications

Description

Key Features

  • Non-thermal food preservation technology
  • Processes packaged products after sealing, reducing contamination risk
  • Extends refrigerated shelf life while preserving taste, texture and colour
  • Helps meet stringent food safety requirements
  • Suitable for clean-label food production
  • Heavy-duty stainless steel pressure vessel
  • Fully enclosed operating area with integrated safety systems
  • Dual intensifier hydraulic system for efficient pressure generation
  • Ideal for medium-volume commercial production
  • Proven industrial HPP technology used worldwide in food manufacturing

Technical Specifications

  • Manufacturer: Wave / NC Hyperbaric (Hiperbaric)
  • Model: Wave 6000/55
  • Year of Manufacture: 2000
  • Machine Type: High Pressure Processing (HPP) System
  • Process Type: Batch
  • Maximum Working Pressure: 6,000 Bar (600 MPa)
  • Pressure Medium: Water
  • Pressure Vessel Volume: 55 Litres
  • Internal Vessel Diameter: 200 mm
  • Chamber Length: Approx. 2,000 mm
  • Hydraulic System: Dual High Pressure Intensifiers
  • Pressure Build Time: Approx. 3–4 Minutes
  • Typical Throughput: Approx. 270 kg/hour (product dependent)
  • Electrical Supply: Approx. 47 kW
  • Power: 3 Phase, 50 Hz
  • Compressed Air: Required
  • Cooling Water: Required
  • Machine Length: Approx. 8,000 mm
  • Footprint: Approx. 22 m²
  • Machine Weight: Approx. 20,000 kg
