Line

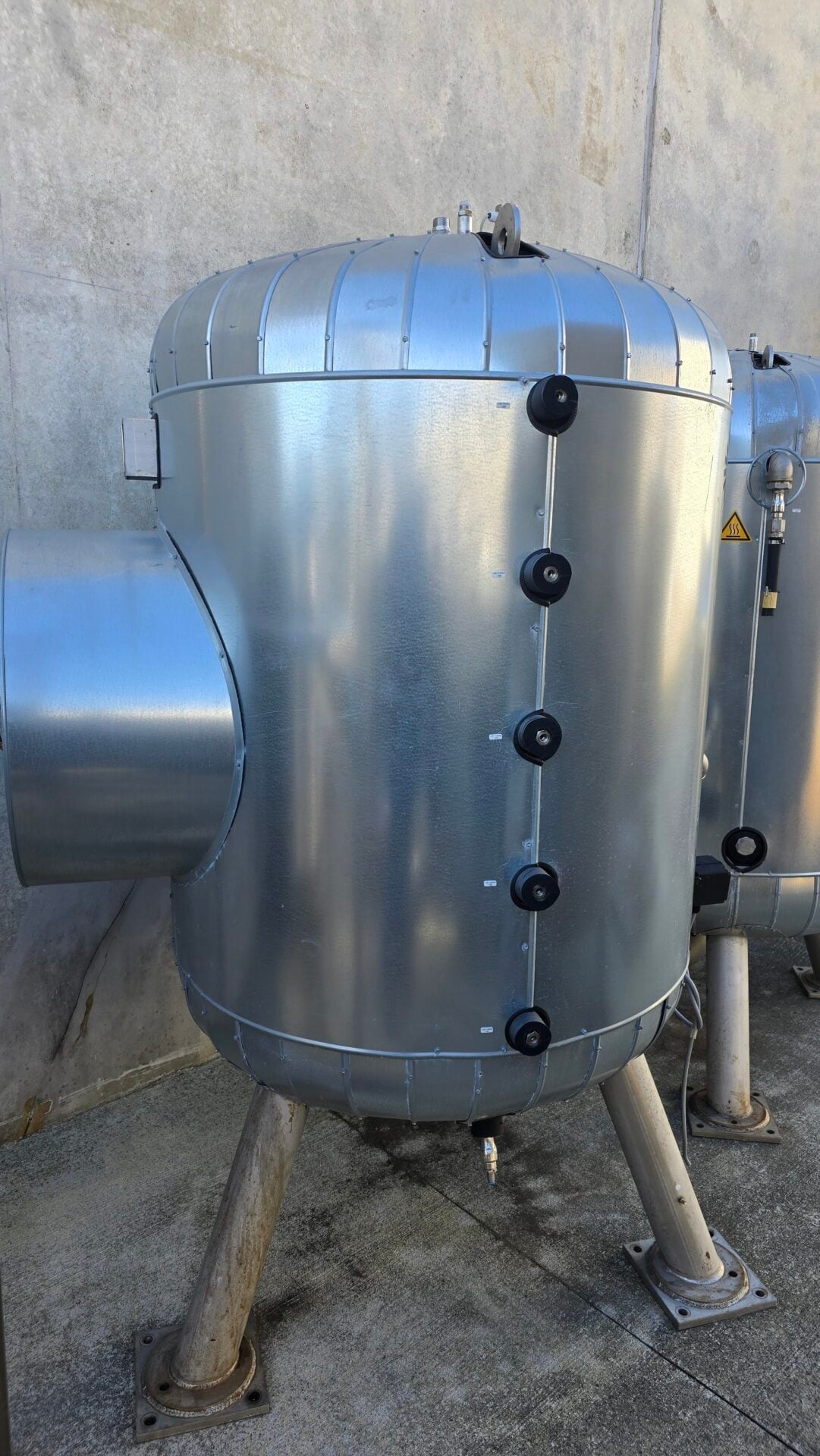

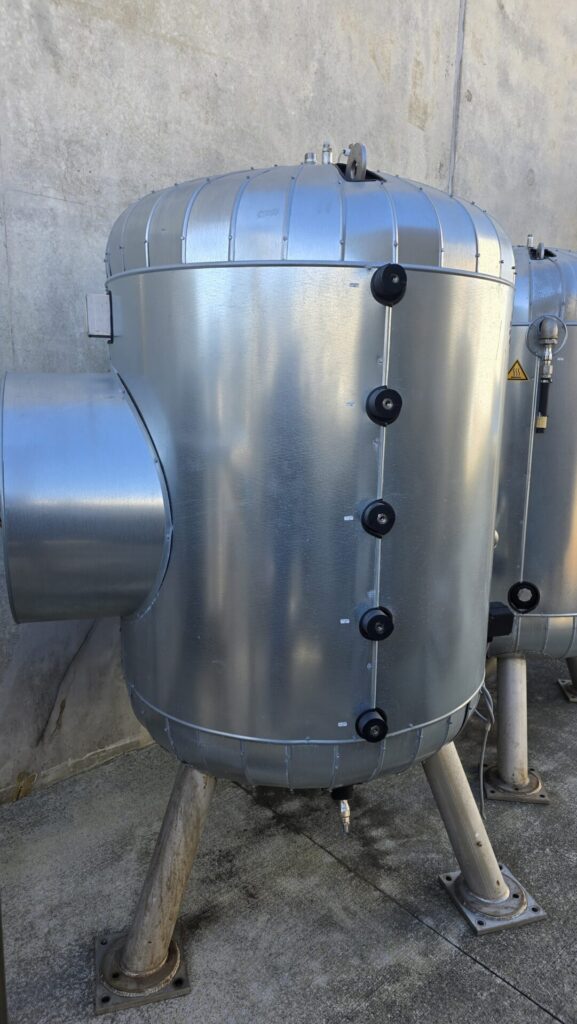

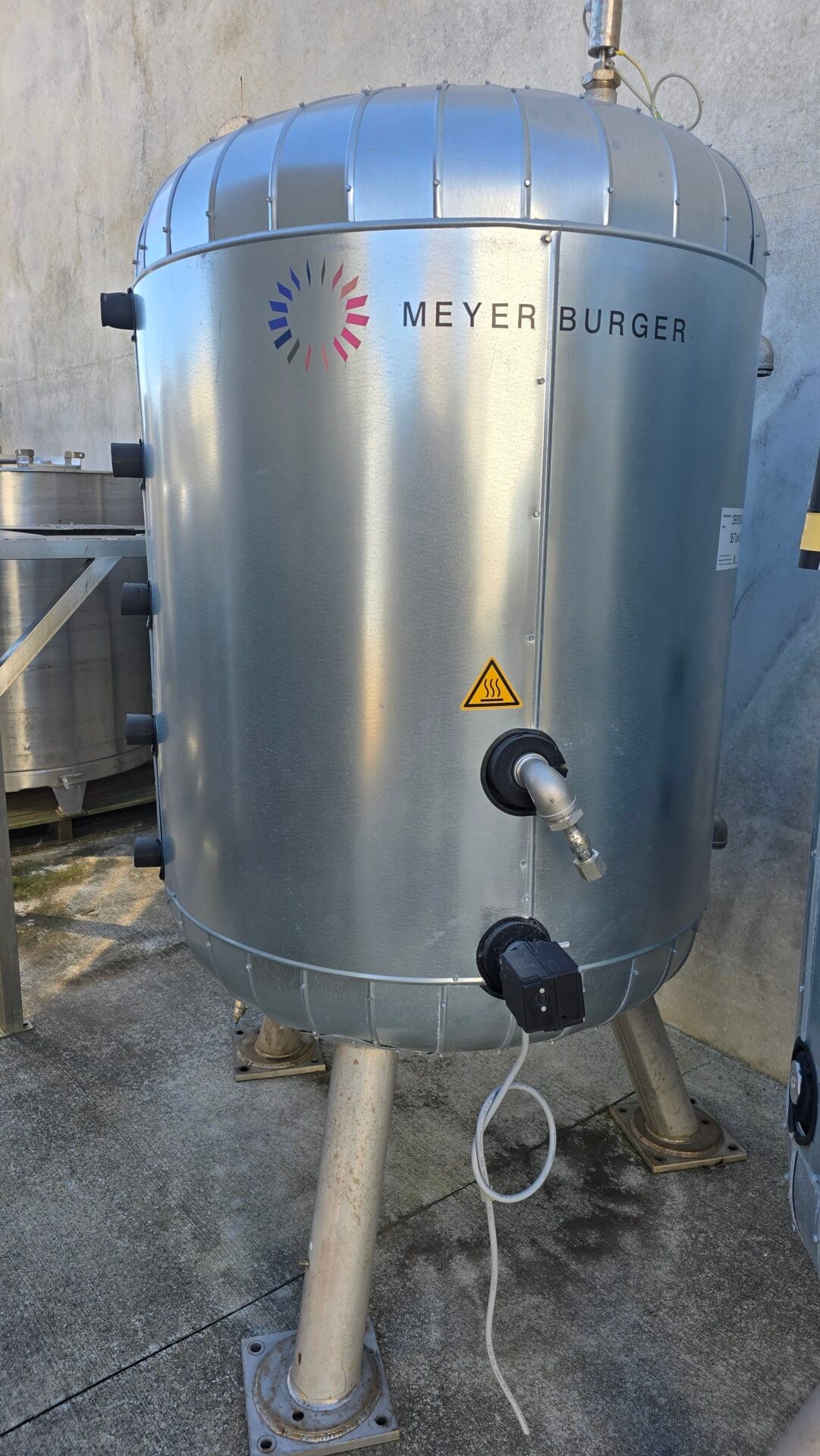

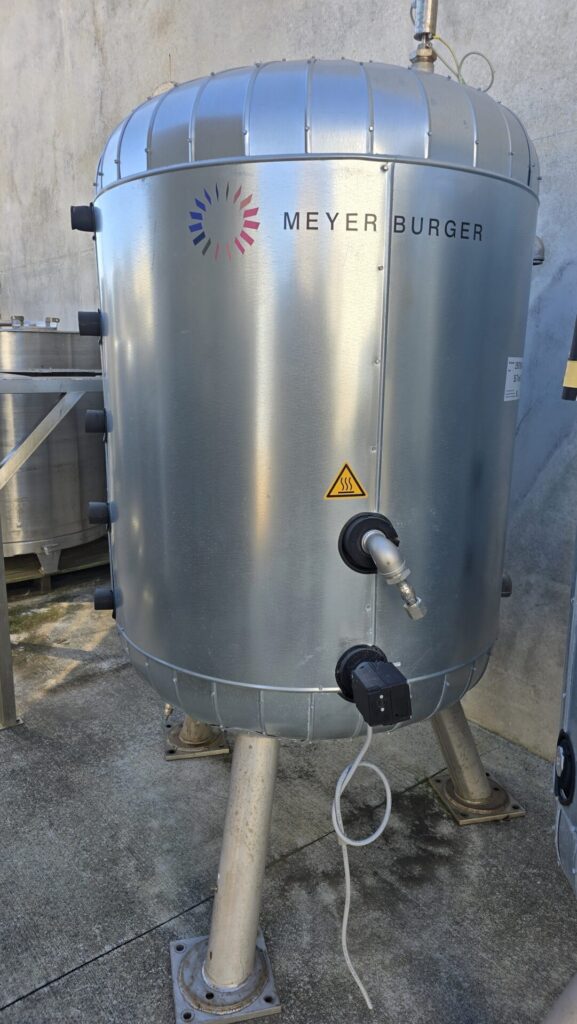

1,100 L Insulated Stainless Steel Process Vessel

193798 - 1

Request a Quote

Specifications

Description

Key Features

  • Approx. 1,100-litre capacity
  • Premium German-manufactured stainless steel vessel
  • Manufactured in 2018
  • Insulated construction for improved temperature retention
  • Built in accordance with EN 13445 design standards
  • Hygienic stainless steel construction
  • Suitable for food, dairy, beverage and pharmaceutical applications
  • Heavy-duty four-leg support frame

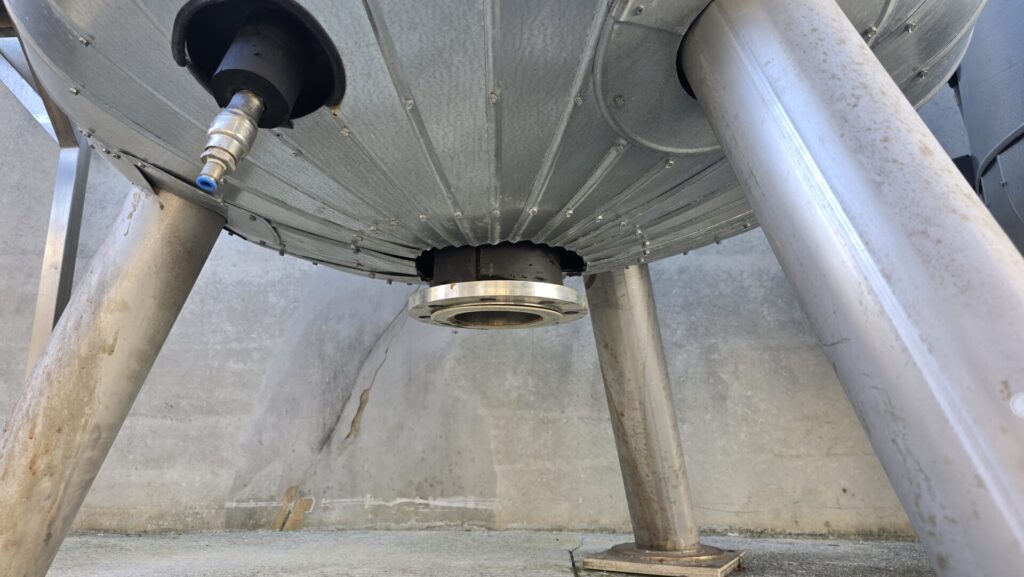

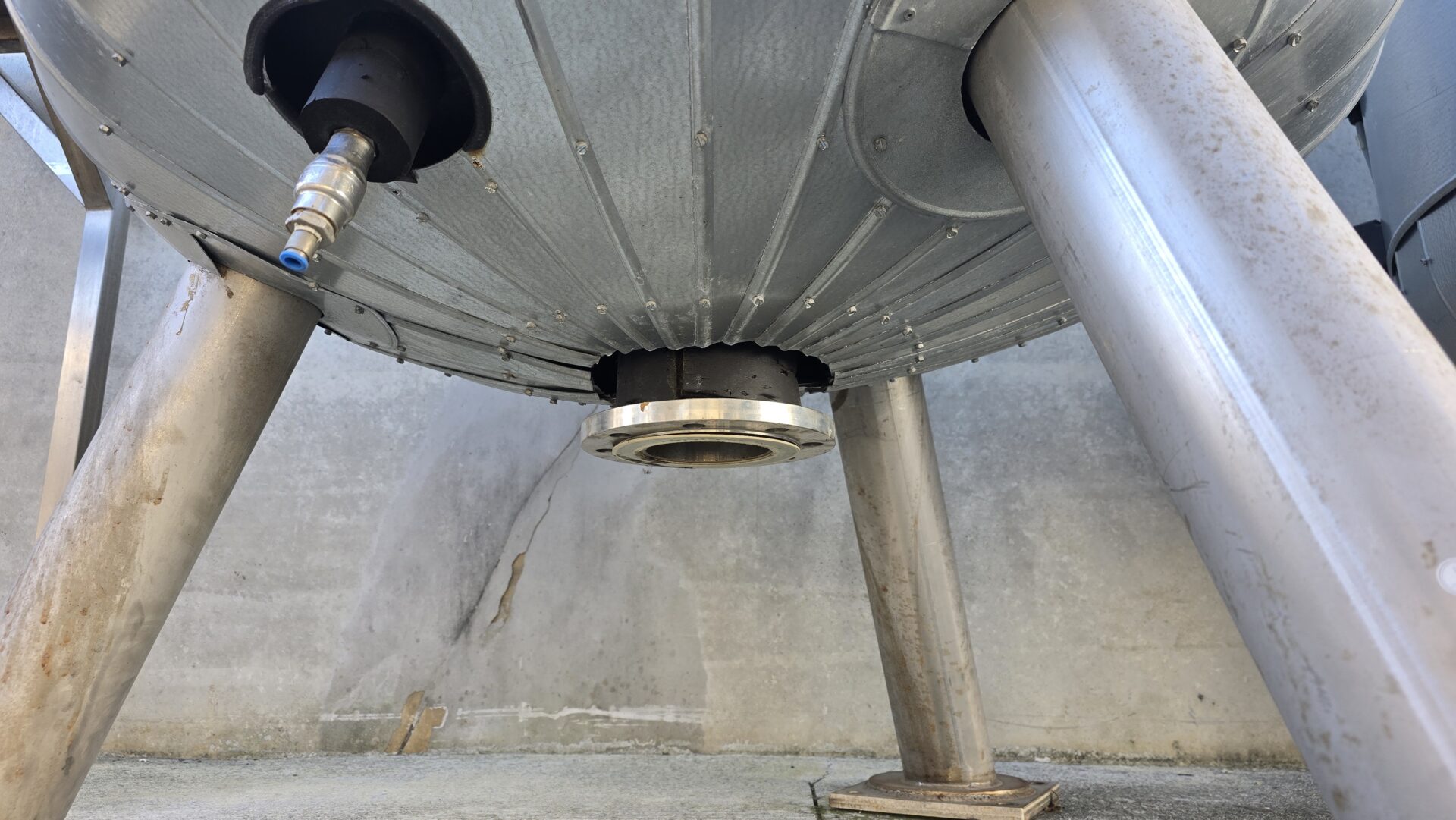

  • Bottom centre hygienic outlet for efficient product drainage

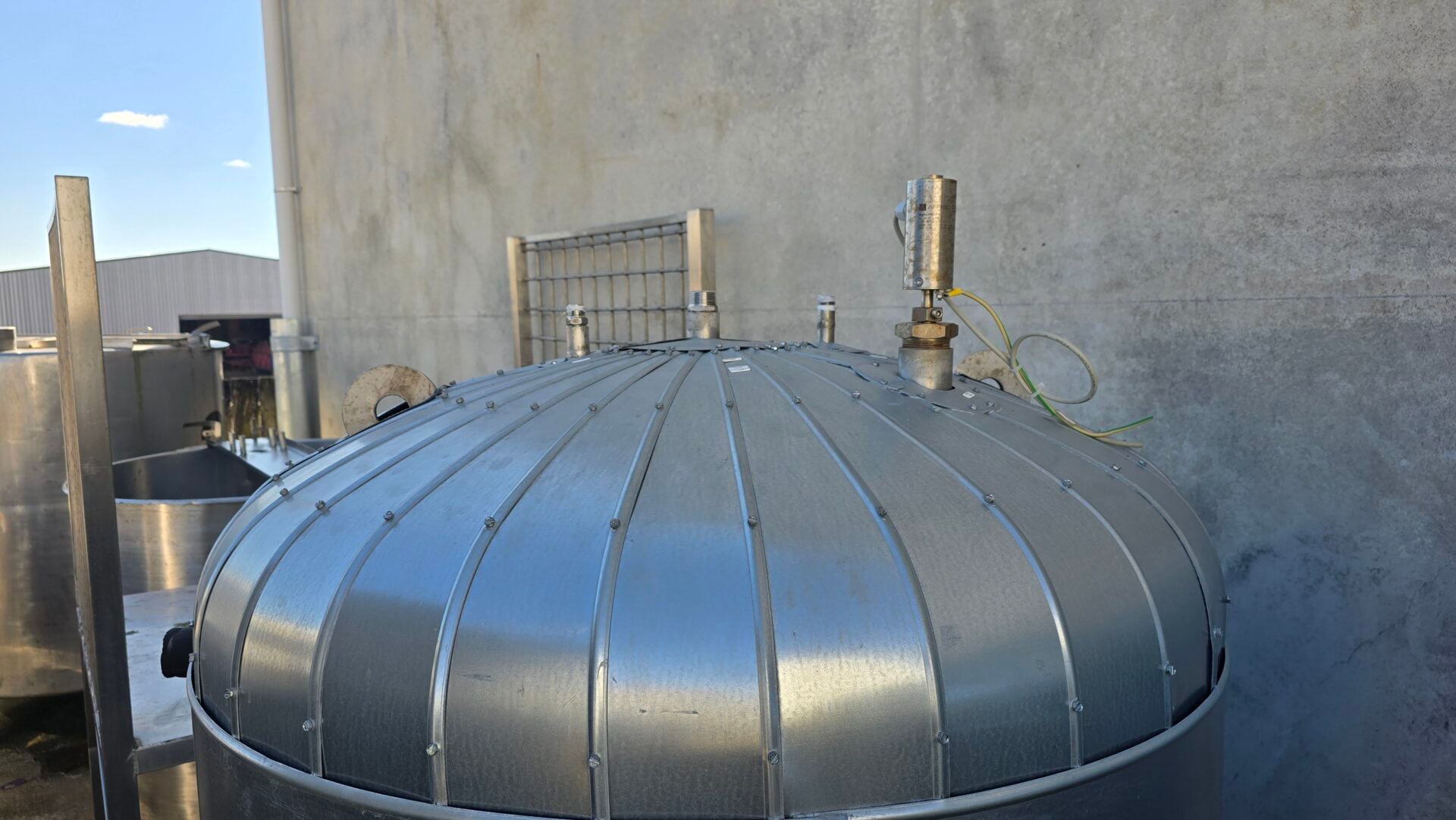

  • Multiple top-mounted process connections
  • Fitted with process instrumentation and safety components
  • Excellent overall condition
  • Ideal for integration into existing processing systems

Technical Specifications

  • Capacity: 1,100 litres (approx.)
  • Internal Diameter: 900 mm (approx.)
  • Overall Diameter: 1,300 mm (approx.)
  • Height: 2,200 mm (approx.)

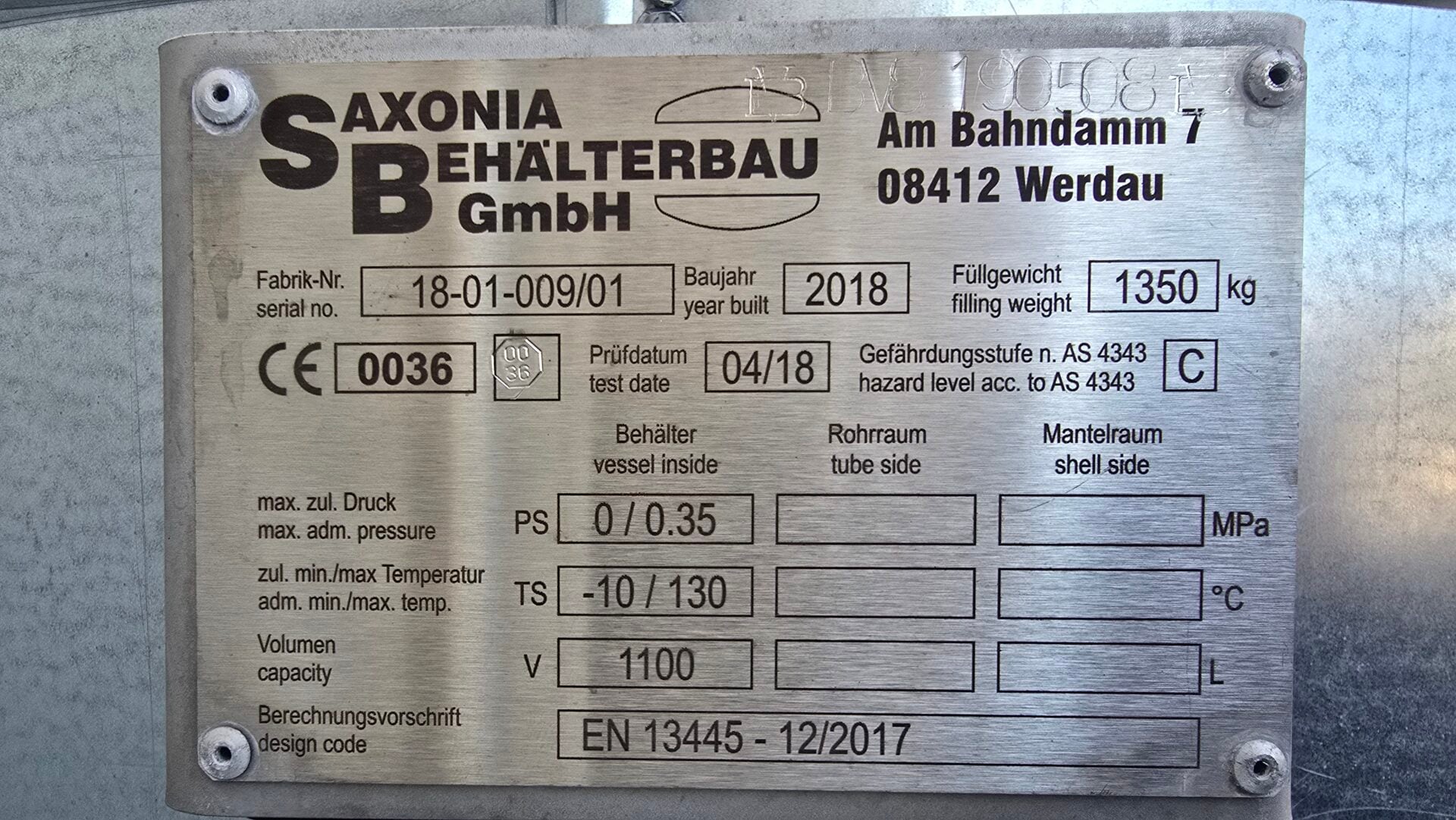

  • Manufacturer: Saxonia Behälterbau GmbH
  • Country of Manufacture: Germany
  • Year of Manufacture: 2018
  • Capacity: 1,100 Litres
  • Filling Weight: 1,350 kg
  • Maximum Internal Design Pressure: 0.35 MPa (3.5 Bar)
  • Operating Temperature Range: -10°C to +130°C
  • Design Standard: EN 13445 (12/2017)
  • Hazard Classification: AS 4343 Class C
  • Construction: Insulated stainless steel process vessel
  • Support: Four stainless steel legs
  • Outlet: Bottom flanged process outlet
  • Connections: Multiple top process connections
  • Large Insulated Side Enclosure: Yes
  • Condition: Used
