Steam Turbine Generator Set

4.2 MW AEG-KANIS Steam Turbine Generator Set – Complete Power Solution

This 4.2 MW steam turbine generator (STG) set offers a proven and cost-effective solution for industrial power generation and cogeneration applications. Designed for continuous base-load operation, it is ideal for facilities looking to generate their own power while utilising process steam efficiently.

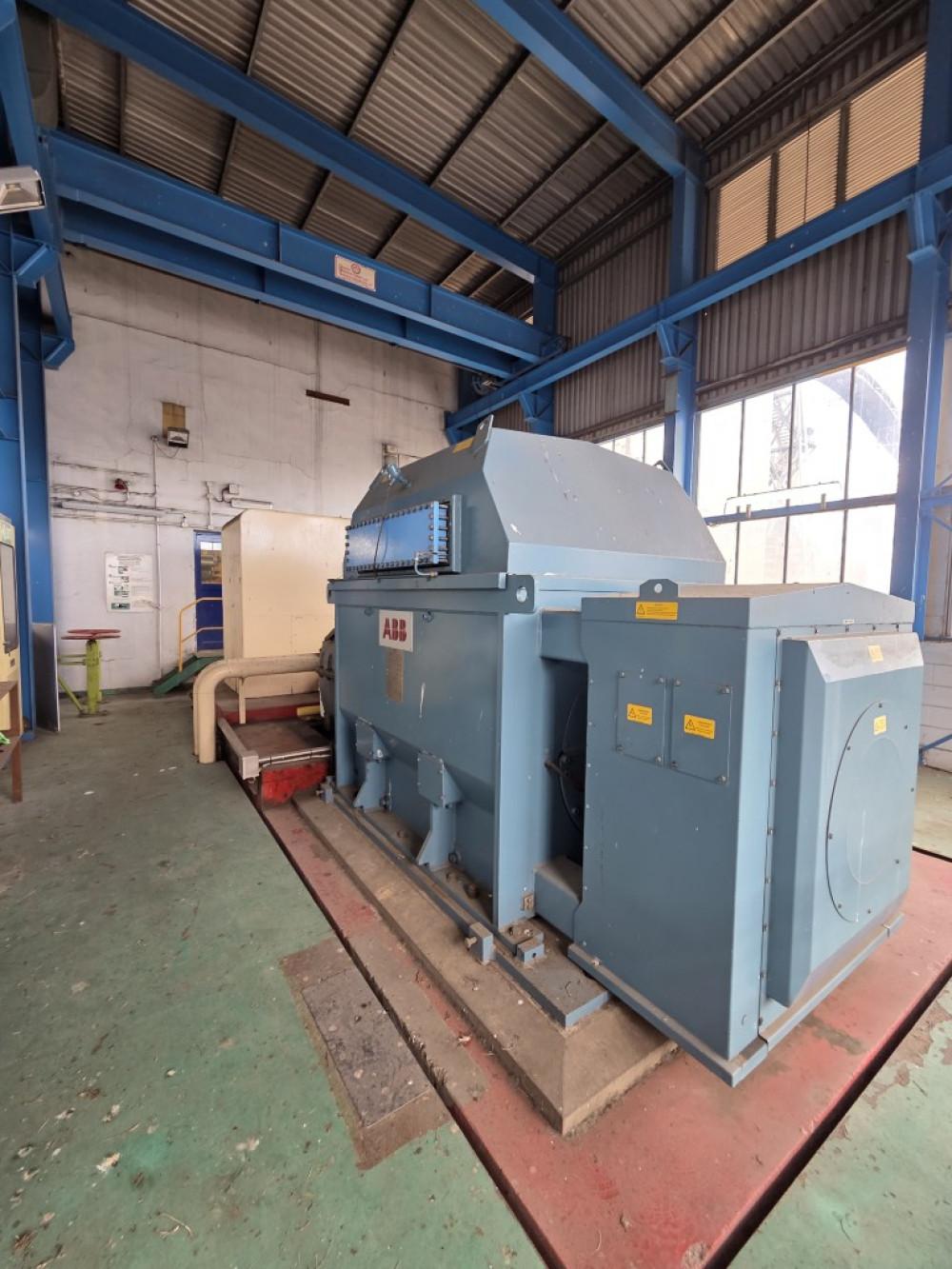

The package combines a reliable AEG-KANIS back-pressure steam turbine with a modern ABB synchronous generator, delivering a balanced solution for both performance and long-term operational value. Suitable for industries such as food processing, chemical plants, rendering, and manufacturing, this unit enables energy recovery and improved overall plant efficiency.

Offered as a complete, ready-for-relocation package, the system includes key auxiliary components—making it a practical option for integration into existing steam systems or new installations.

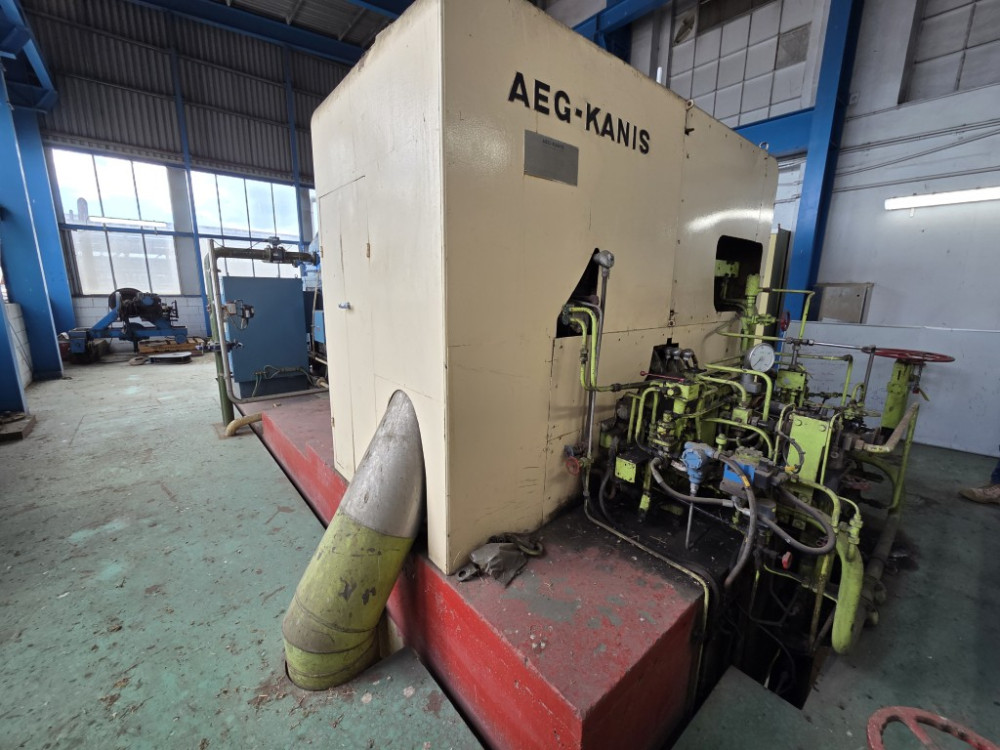

Turbine – AEG-KANIS G25 (1979)

• Output: 4.2 MW mechanical
• Type: Back-pressure industrial steam turbine
• Inlet Pressure: ~31 bar (450 psig)
• Inlet Temperature: 400–450°C (superheated)
• Speed: 1500 rpm
• Exhaust: Suitable for process steam systems

Included Systems

• Turbine governor
• Throttle and control valve
• Lube oil system (pumps & coolers)
• Overspeed trip protection
• Coupling and baseframe
