Specifications

  • Manufacturer: Thimonnier
  • Model: SF RANGE FOOD
  • Condition: New
1 / 8

Description

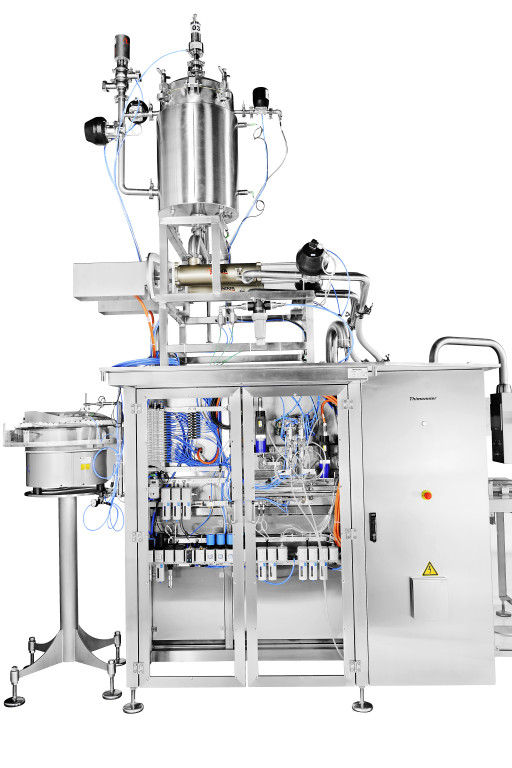

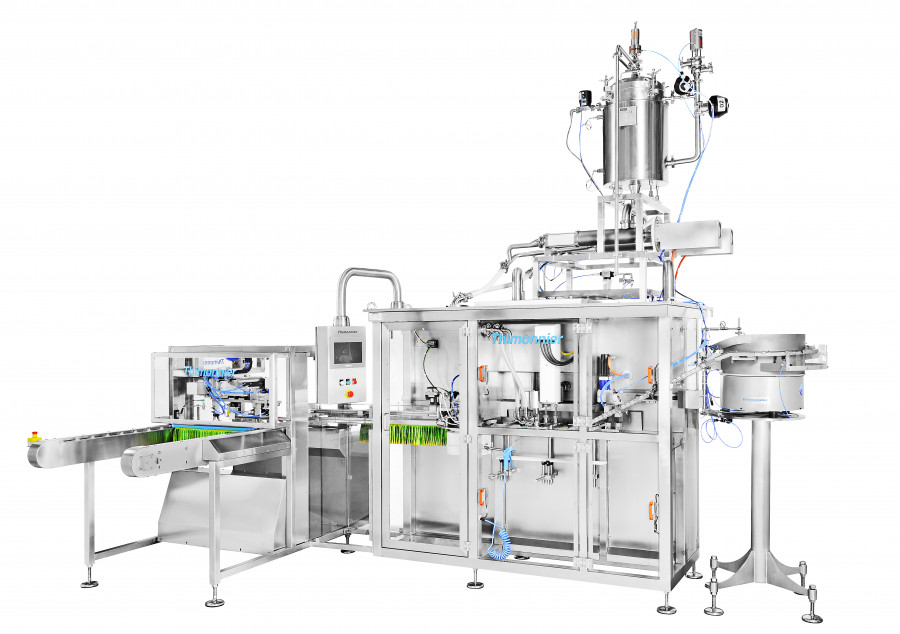

The Thimonnier SF102 is a new-generation, high-speed spout filling and capping machine engineered specifically for spouted Doypack® and inverted stand-up pouch formats.

Designed for high-volume automated lines, the SF102 operates under ultra-clean, sterile-air conditions to process both fresh and pasteurized products safely.By integrating inline spout and cap decontamination tech, this system significantly extends product shelf life and reduces waste. Its compact, open-frame design optimizes space on the factory floor while allowing operators full visual control and streamlined washdown access for maximum hygiene compliance.

Product Application Capabilities
The SF102 is highly flexible across varying liquid, hot-fill, and high-viscosity food and beverage categories:

  • Baby Food & Purées: fruit purées, baby foods, and chestnut creams.
  • Dairy & Cultured Products: Smooth yoghurts, liquid cheeses, and dairy liquids.
  • Viscous Liquids & Condiments: Honey, edible oils, structural soups, and culinary sauces
  • Beverages: High-acid fruit juices, fruit nectars, and pasteurized liquid bases.

Key Features

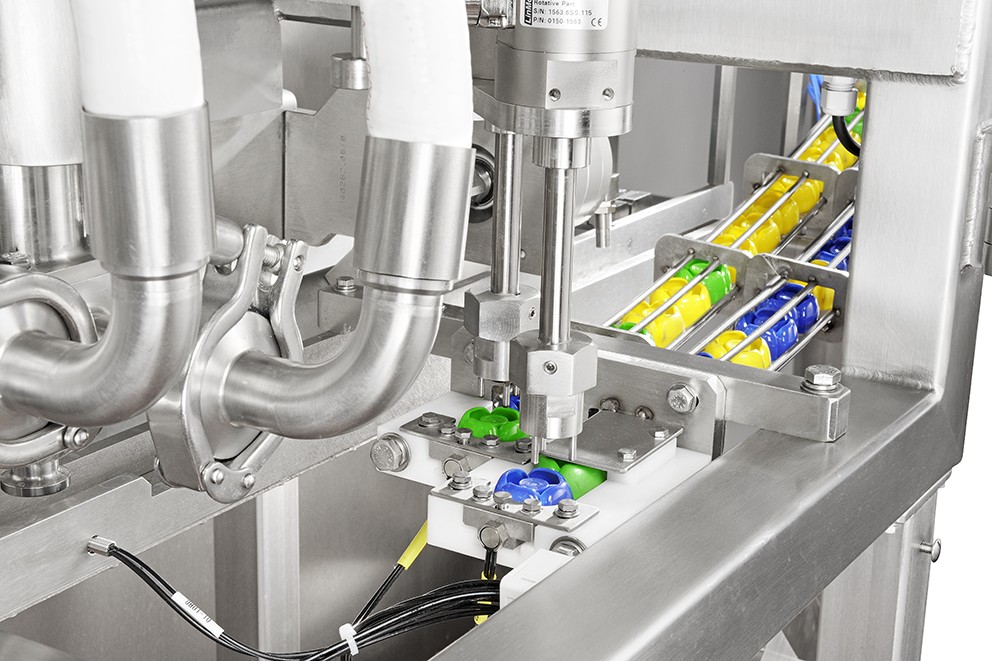

  • Ultra-Clean Micro-Environment: Features a localized, enclosed sterile-air chamber combined with pulsed-light or chemical decontamination for both the pouch spout and the cap before sealing.
  • Double-Capacity Throughput: Built with a twin-line concurrent filling system that handles two pouches simultaneously, delivering line speeds up to double the capacity of previous generations.
  • Advanced QA Capping Integrity: Integrated camera and laser inspection systems automatically assess the seal quality of every single cap before ejection, removing the need for manual inspection lines.
  • Modular Floor Footprint: Scalable frame design allows manufacturers to run 2, 4, or 6 line configurations in parallel as factory production demands grow.
  • Sanitary Engineering: Built with an accessible, high-washdown stainless steel frame to prevent cross-contamination and dramatically cut down clean-in-place (CIP) turnaround times.

Technical Specifications

  • OUTPUT: UP TO 240 POUCHES/ MIN (40 POUCHES/ LINE)
  • POUCHES VOLUME: FROM 50 ML TO 2 L
  • Frame in stainless steel

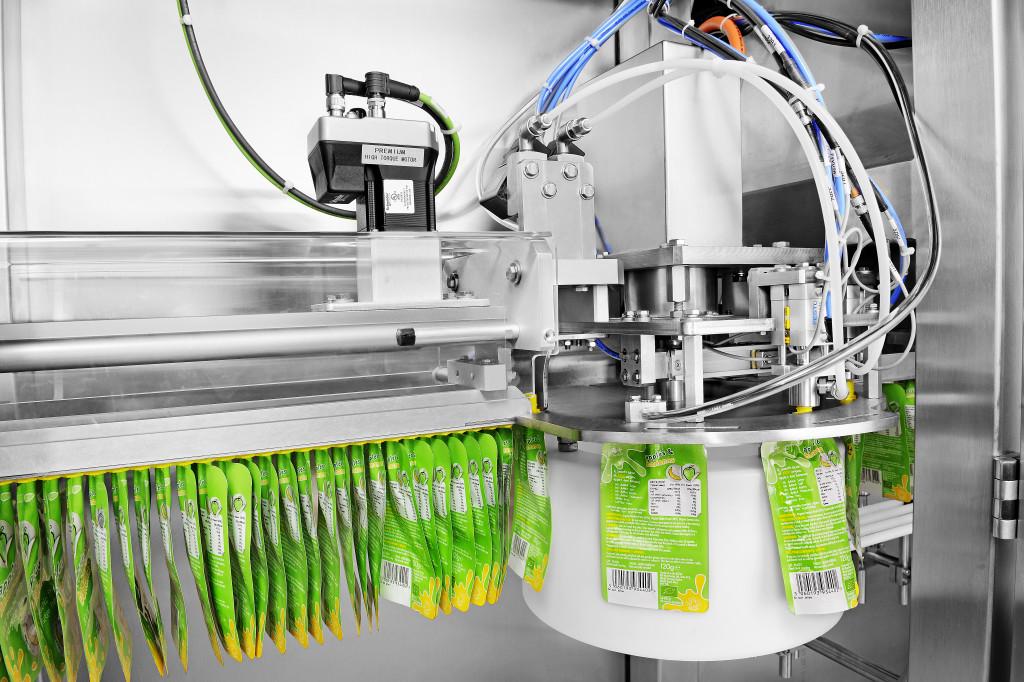

  • Pouches transfer, dosing and screwing controlled by servo motors
  • Easy cleaning of production enclosure: No contact between delicate parts and the filled product
  • FLEXIBILITY (MODE IN 2, 4 OU 6 LINES)
  • Control by PLC Recording and storage of 100 programs
