Meat Mixer / Grinder

193616 - 2

or Call +64 (0) 9 263 0578

Specifications

1 / 3

Description

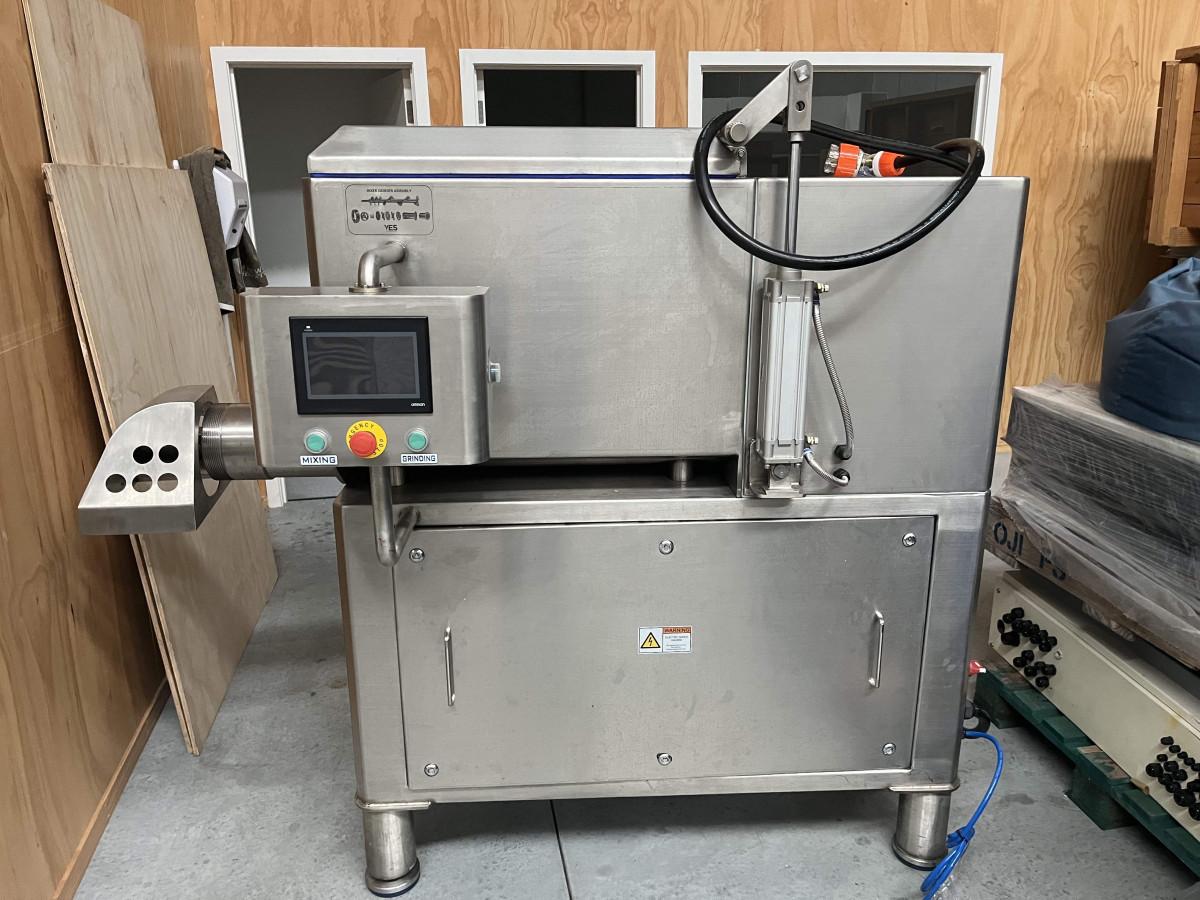

Meat Mixer / Grinder

300 Litre Capacity / 100 to 240 kg per Batch
Mixer Motor Power 2 x 1.5kW
Grinder Motor Power 1 x 15kW c/w VSD
Three Phase 415V, 50 Hz Supply

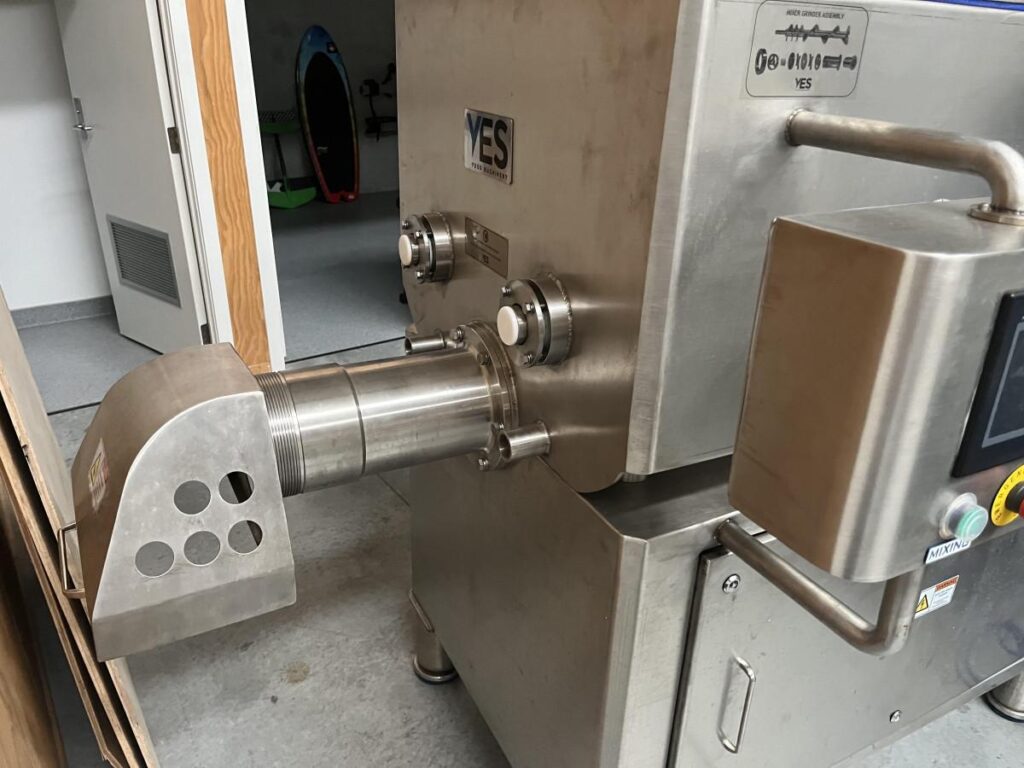

Outlet Diameter: 160mm
Dimensions: 1.5m Long x 1.0m Wide x 1.5m High
Main Body, Shell & Hopper from 3mm Thick Gr304 SS
U Trough Base from 4mm Thick Gr304 SS
Machine Base / Supports from 10mm Thick Gr304 SS
Standard SPA & SPB Drive Pulley System
Schneider Electrical Contactors, Relays & Push Buttons
Omron PLC & HMI
Outlet Safety Cover / Grille & Top Hopper Safety Device

Key Features

Outlet Safety Cover / Grille & Top Hopper Safety Device
Omron PLC & HMI
Schneider Electrical Contactors, Relays & Push Buttons
Standard SPA & SPB Drive Pulley System
Machine Base / Supports from 10mm Thick Gr304 SS

Technical Specifications

300 Litre Capacity / 100 to 240 kg per Batch
Mixer Motor Power 2 x 1.5kW
Grinder Motor Power 1 x 15kW c/w VSD
Three Phase 415V, 50 Hz Supply
Outlet Diameter: 160mm
Dimensions: 1.5m Long x 1.0m Wide x 1.5m High
