Automatic L-Bar Shrink Wrapper with Heat Tunnel

194957 - 8

Request a Quote

Specifications

Description

Key Features

  • Automatic L-type film sealing machine
  • Matching heat shrink tunnel included
  • Pneumatic sealing operation
  • Adjustable sealing temperature and sealing time
  • Variable conveyor speed
  • Automatic film feed and waste film collection
  • Digital temperature controller
  • Compact footprint for easy integration into existing production lines
  • Suitable for POF shrink film and similar packaging films
  • Safety guarding around sealing mechanism

Technical Specifications

L-Type Sealer
  • Model: FQL450A
  • Machine Type: Automatic L-Type Film Sealing Machine
  • Approximate Year: 2023 (based on serial number)
  • Power: 1.35 kW
  • Maximum Sealing Size: 500 × 450 mm
  • Maximum Product Size: Approximately 500 × 350 × 110 mm
  • Production Capacity: Up to 1,200–1,600 packs/hour (approximately 20–25 packs/minute, depending on product size and operator)
  • Recommended Air Pressure: 0.5–0.6 MPa
  • Sealing Temperature: Adjustable (typically around 170–175°C)
  • Film Type: POF shrink film (and compatible shrink films)
  • Automatic film feeding system
  • Digital temperature control

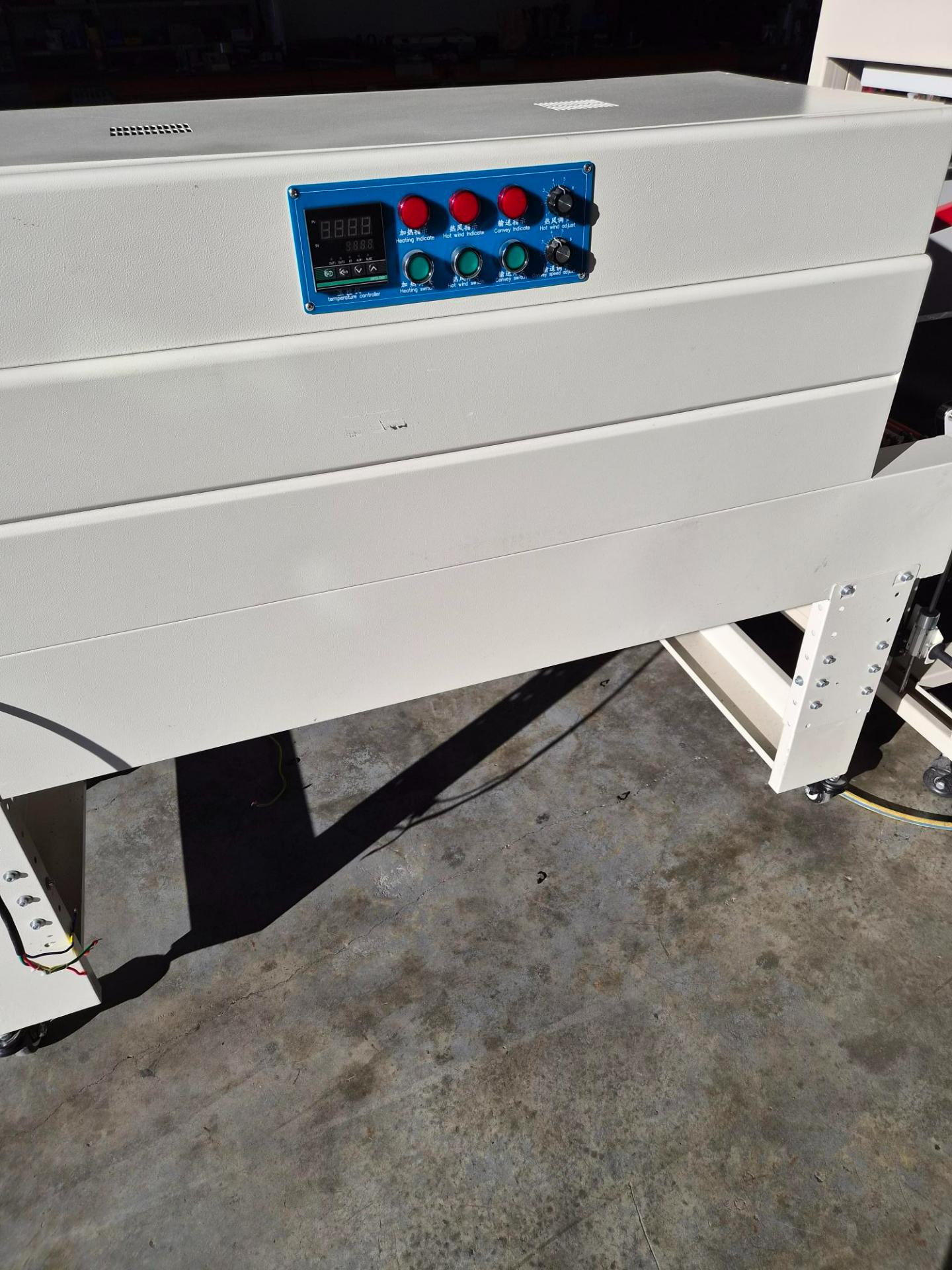

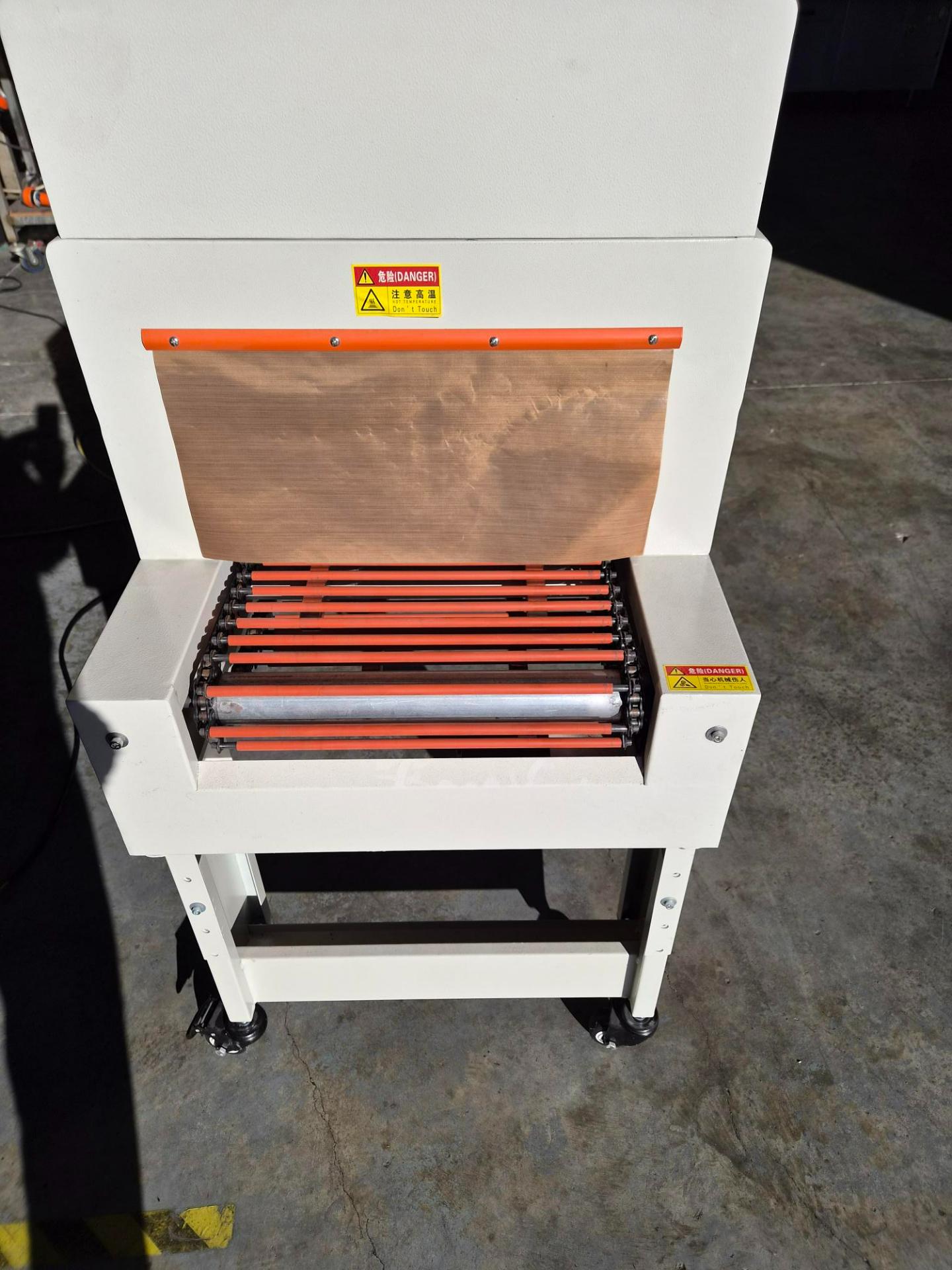

  Heat Shrink Tunnel
  • Matching conveyorised shrink tunnel
  • Adjustable temperature controller
  • Variable conveyor speed
  • Forced hot-air circulation for even shrink performance
