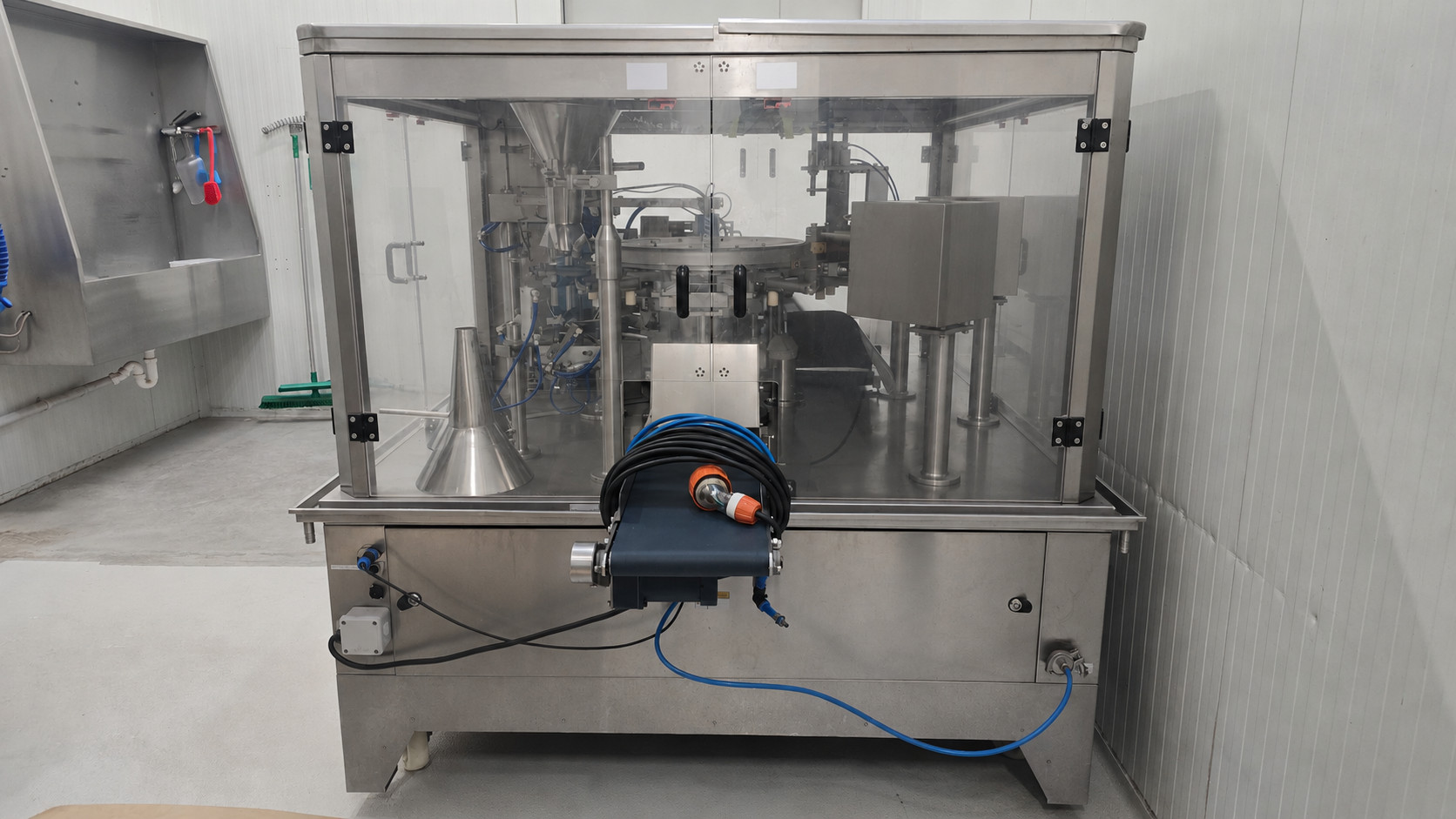

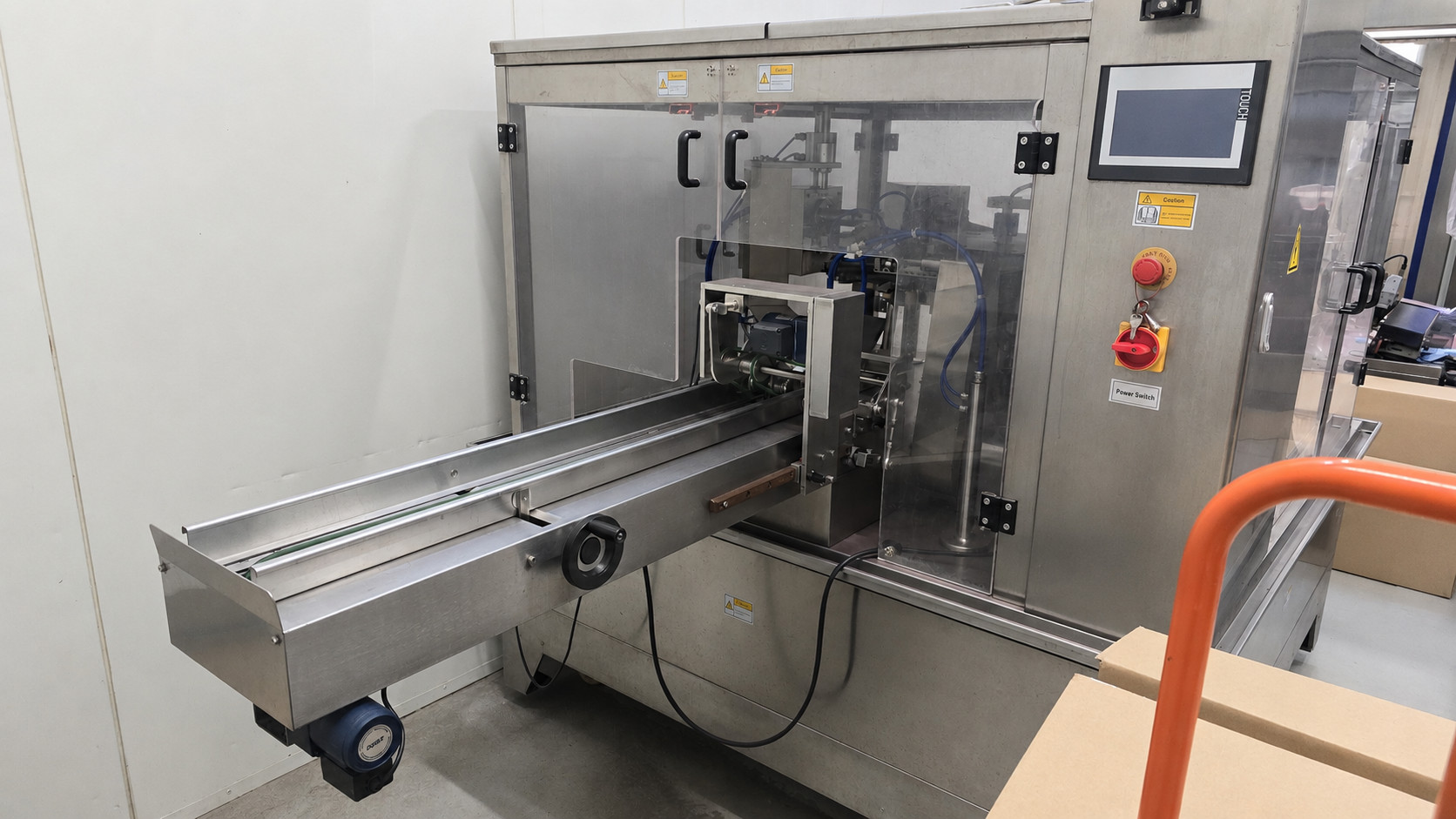

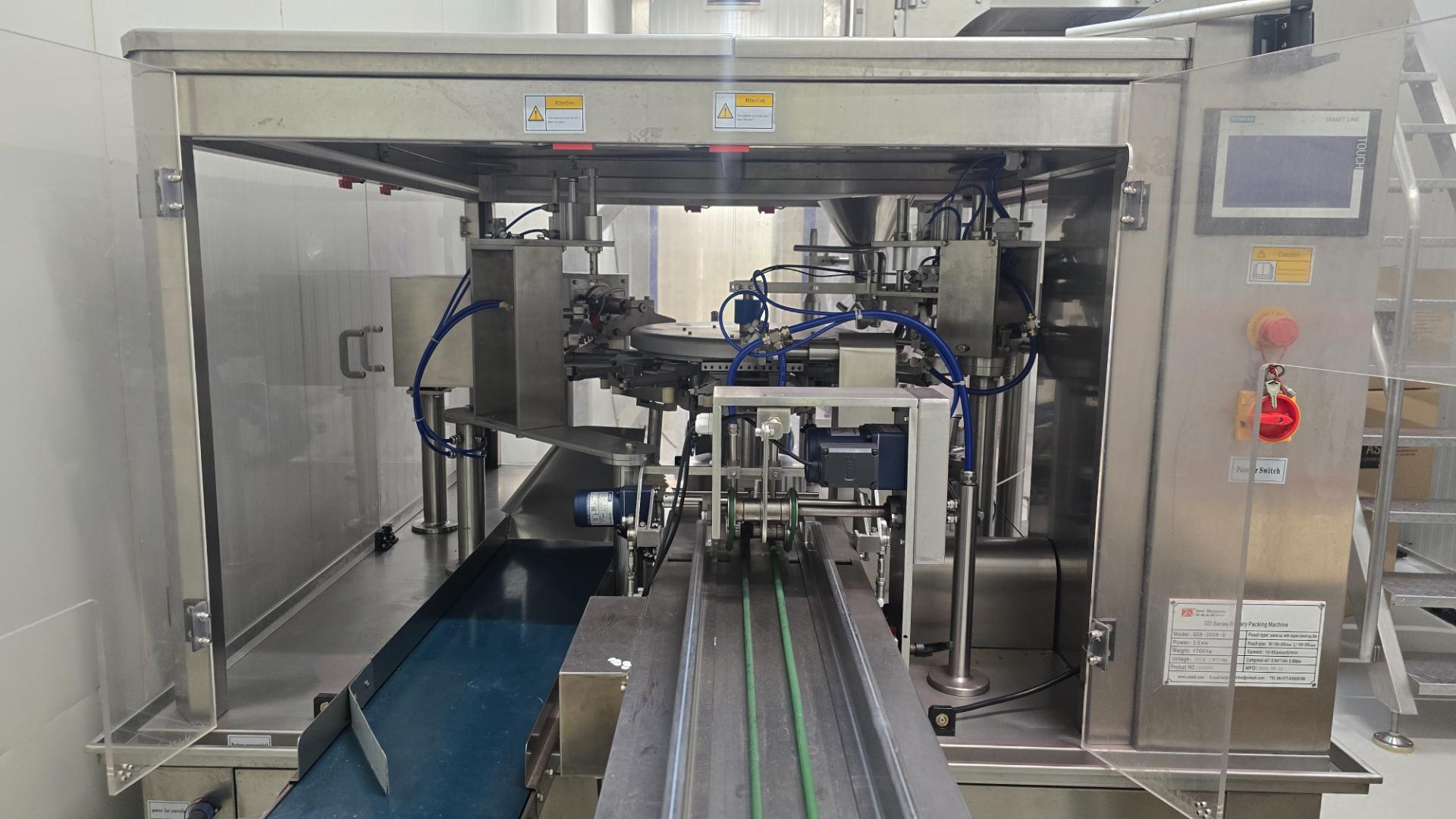

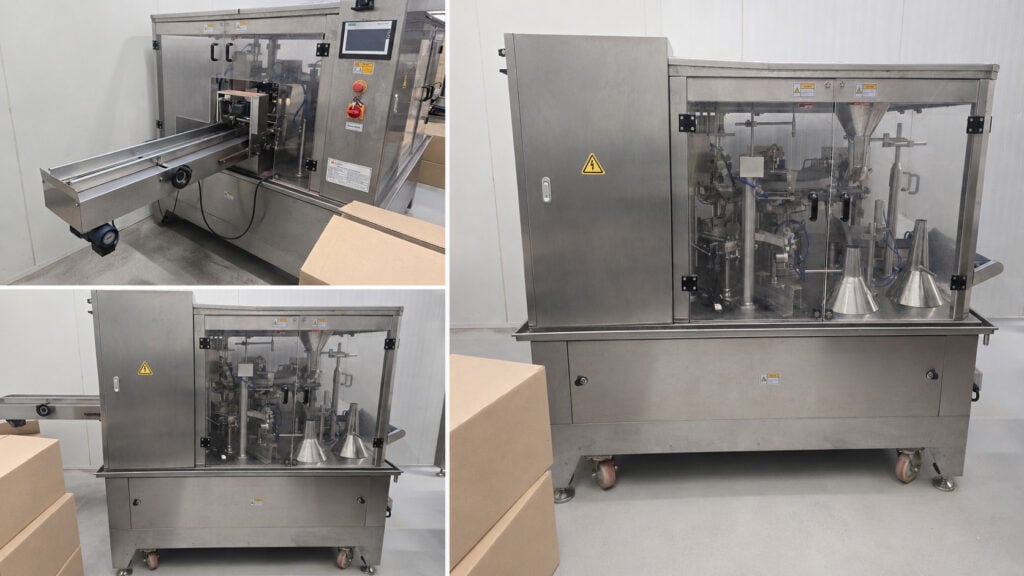

Kedi GD8-200B-II Rotary Premade Pouch Packing Machine

195266 - 1

Request a Quote

Specifications

Description

Key Features

  • Fully automatic 8-station rotary pouch handling system
  • Siemens S7-200 SMART PLC

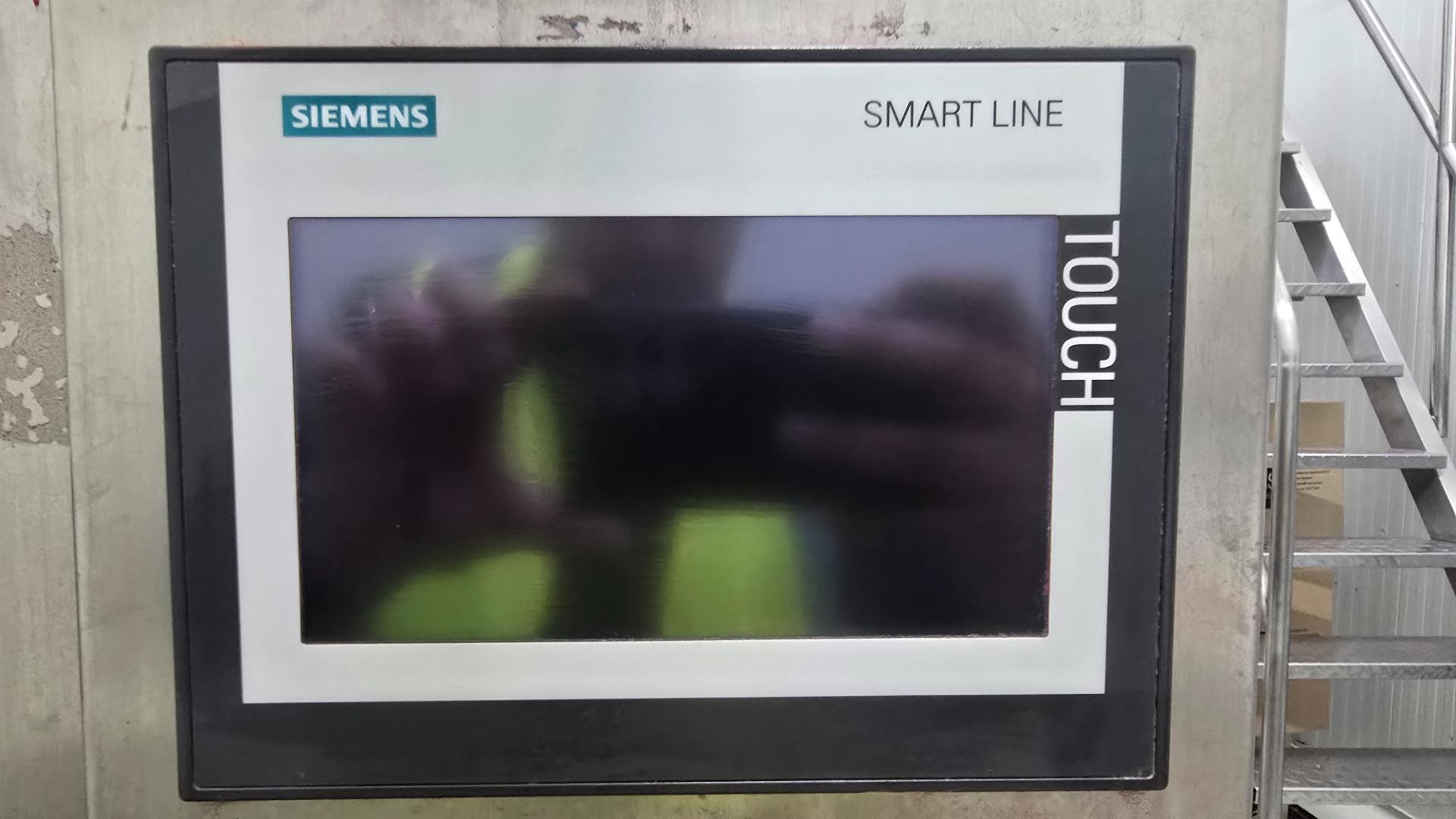

  • Siemens SMART LINE touchscreen HMI
  • Stainless steel hygienic construction
  • Automatic pouch pick-up and opening

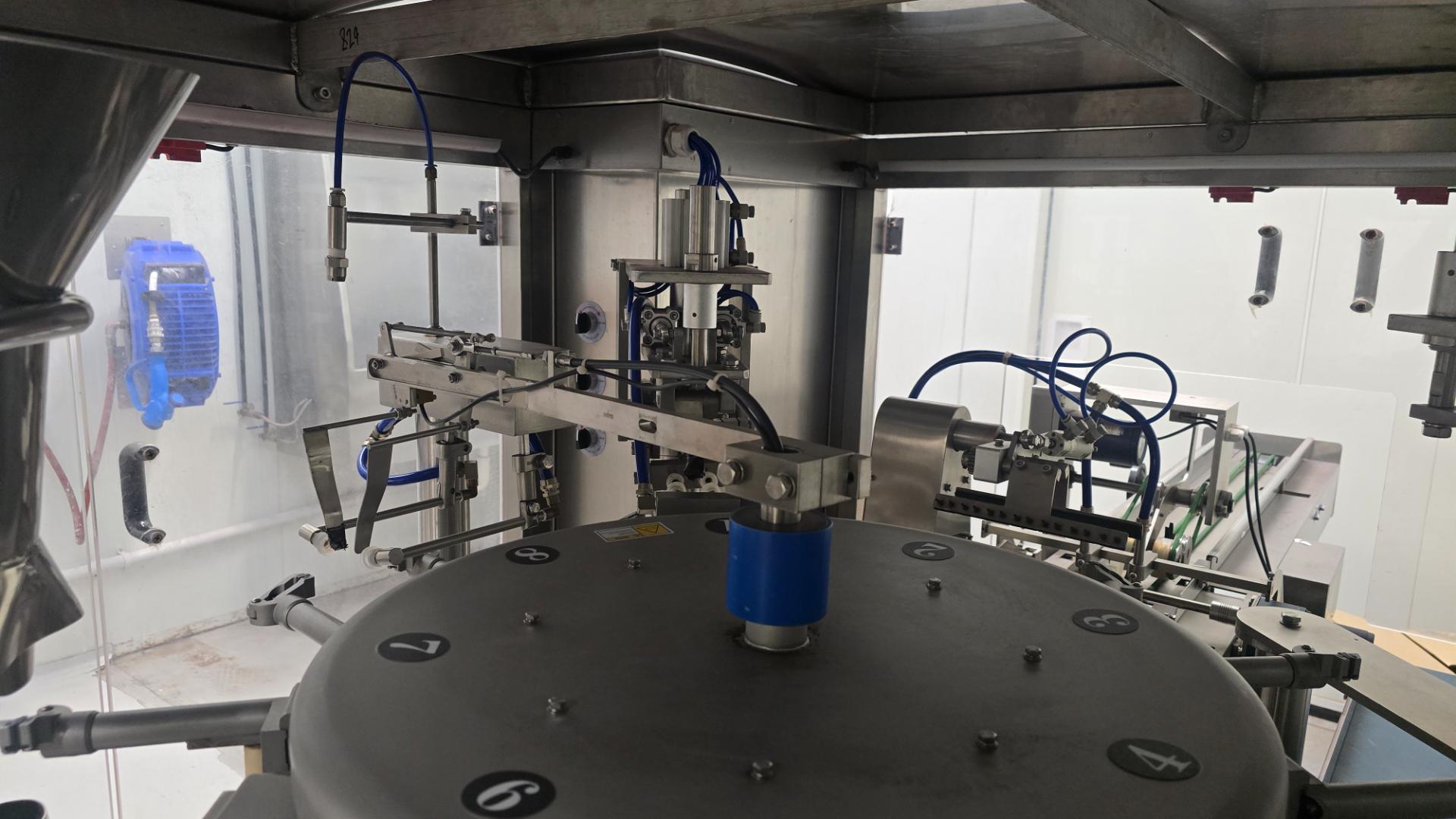

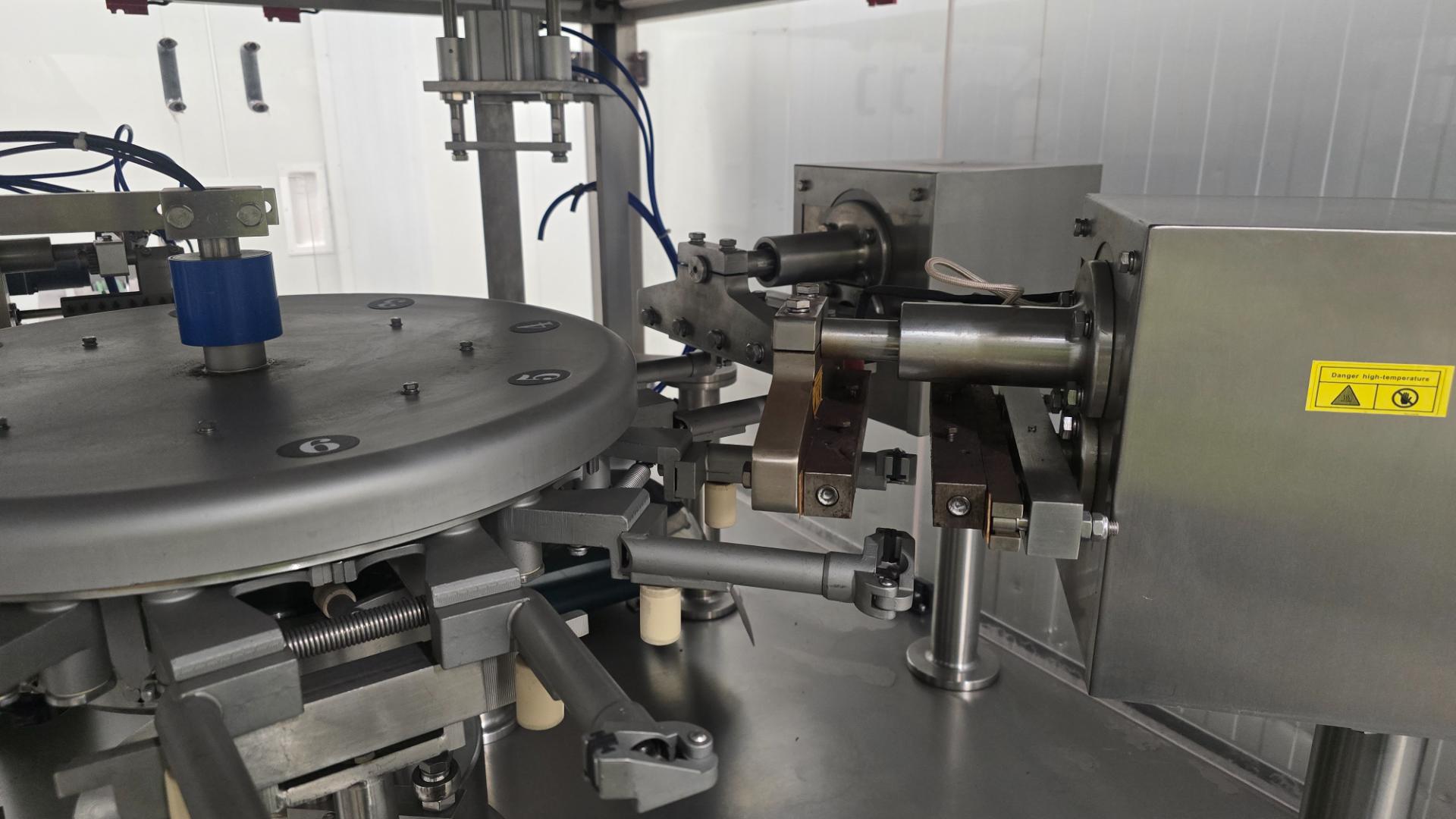

  • Rotary indexing table

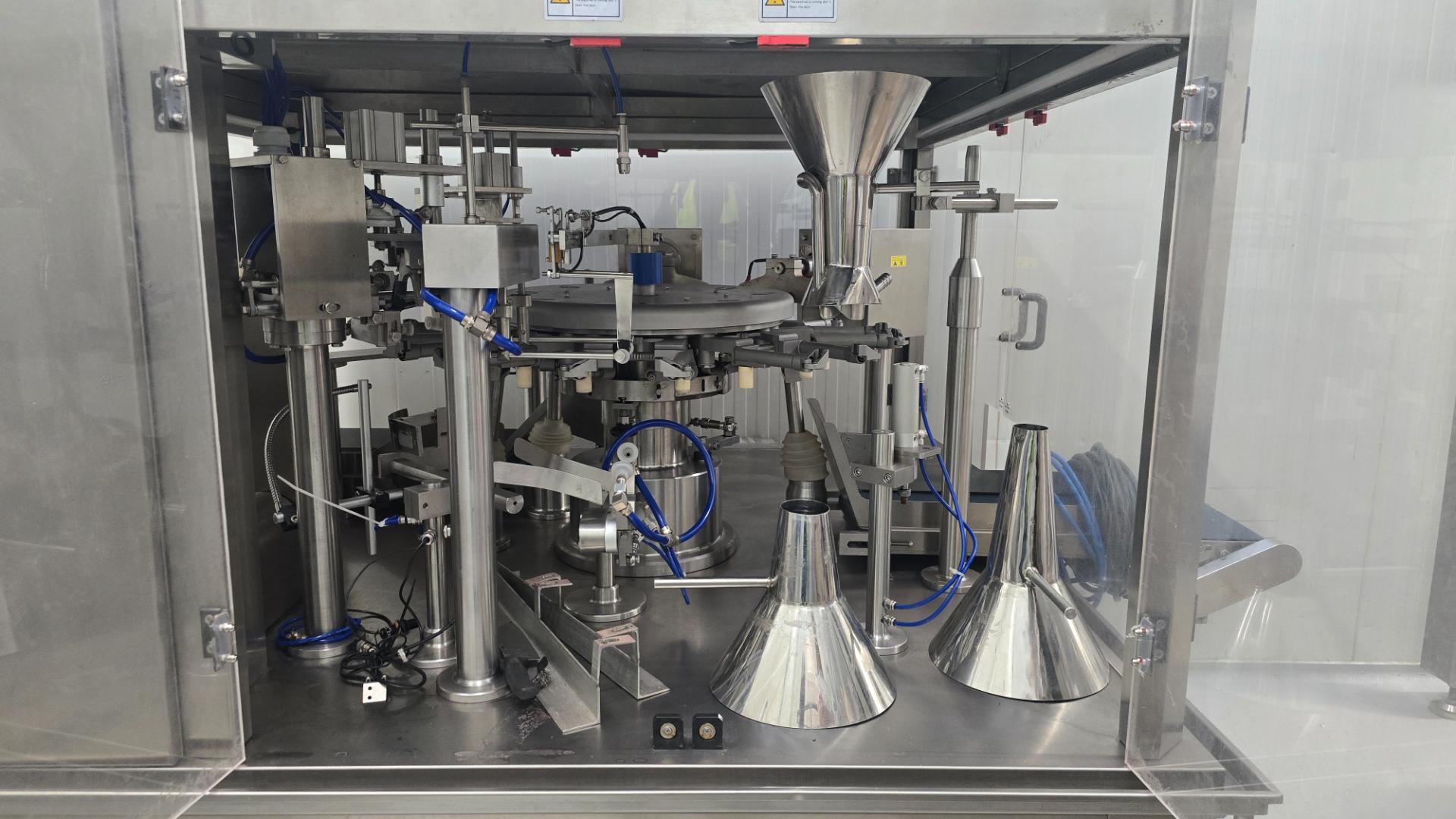

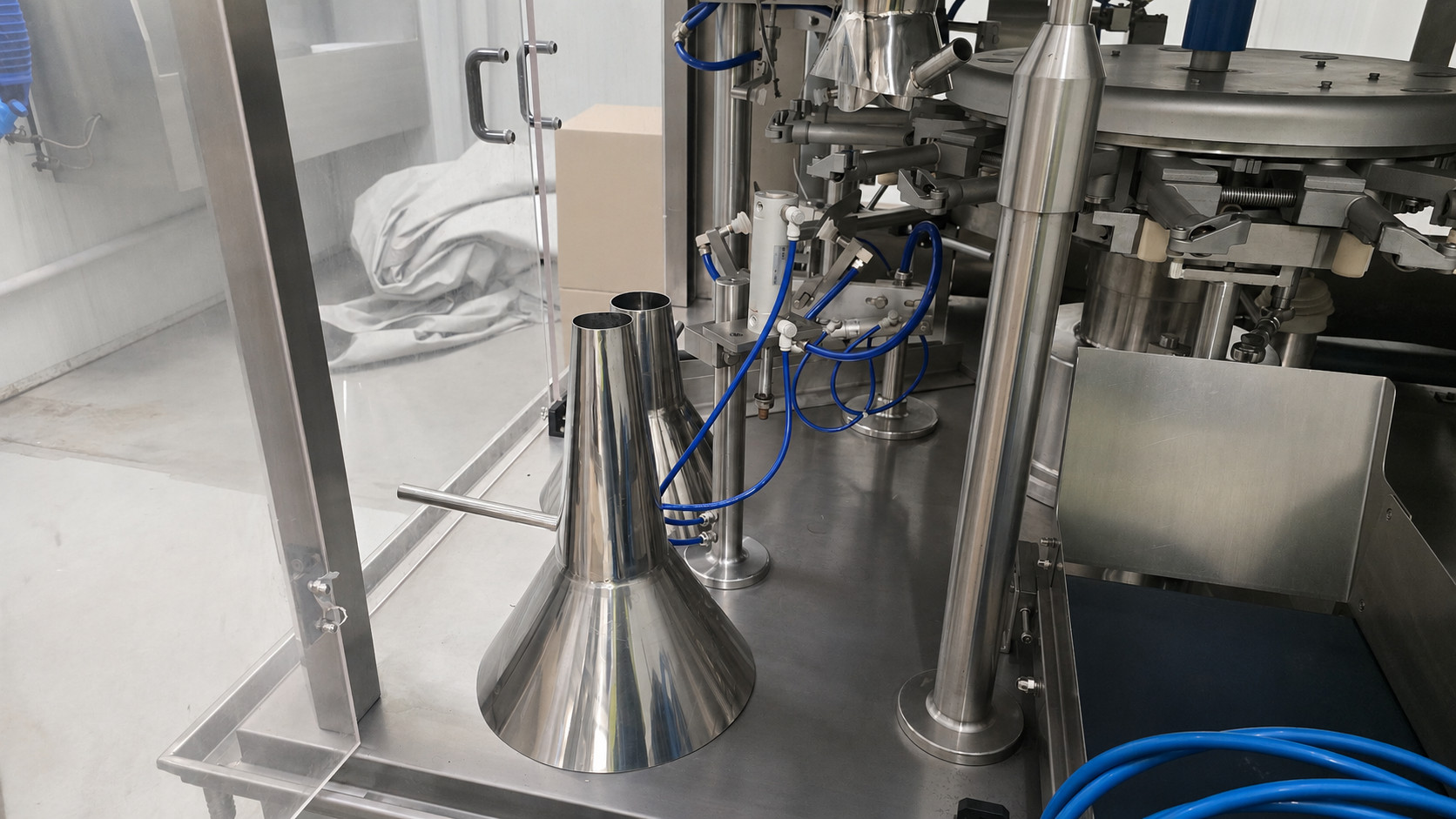

  • Integrated pouch filling station
  • Dual heat sealing stations

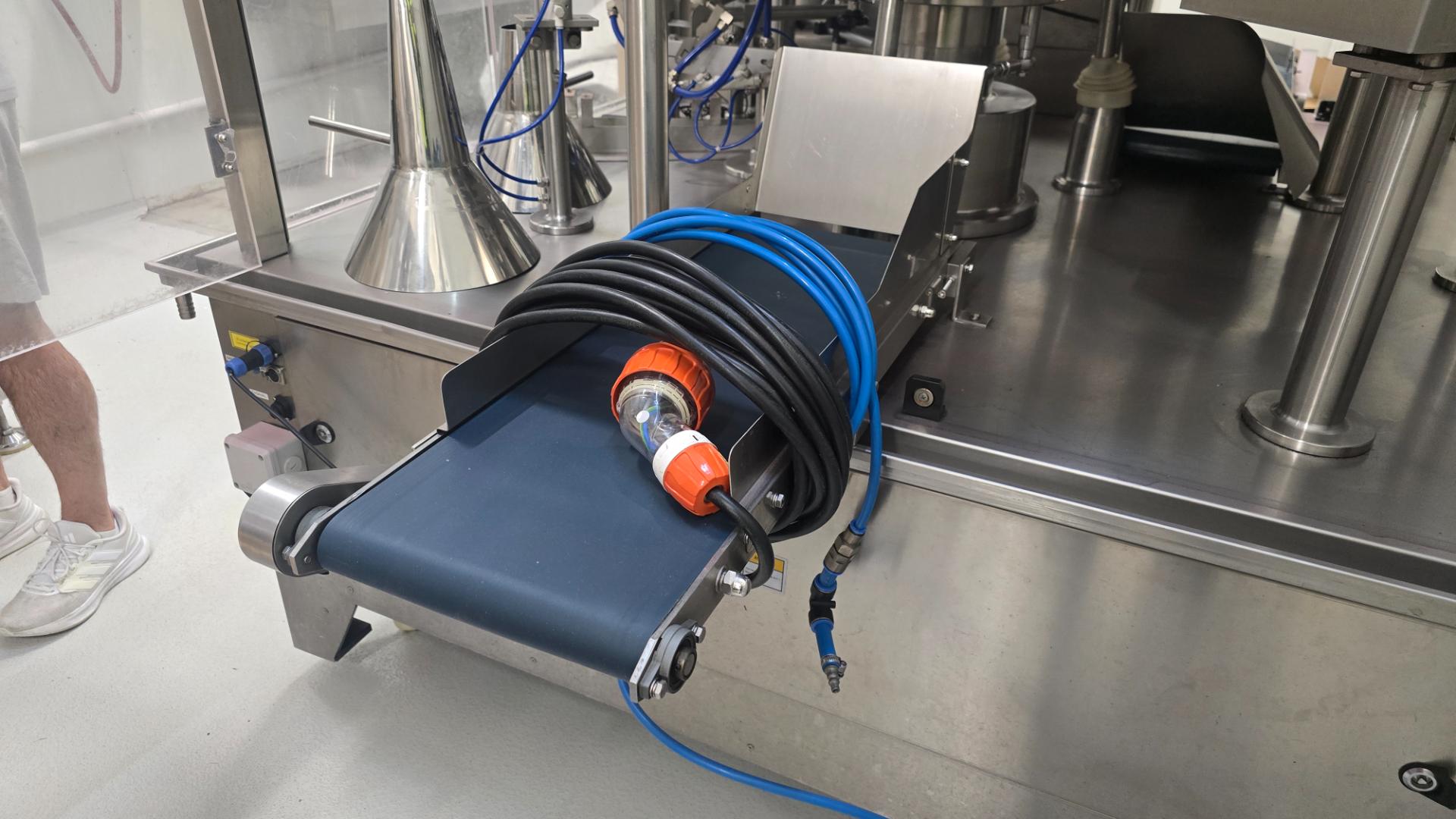

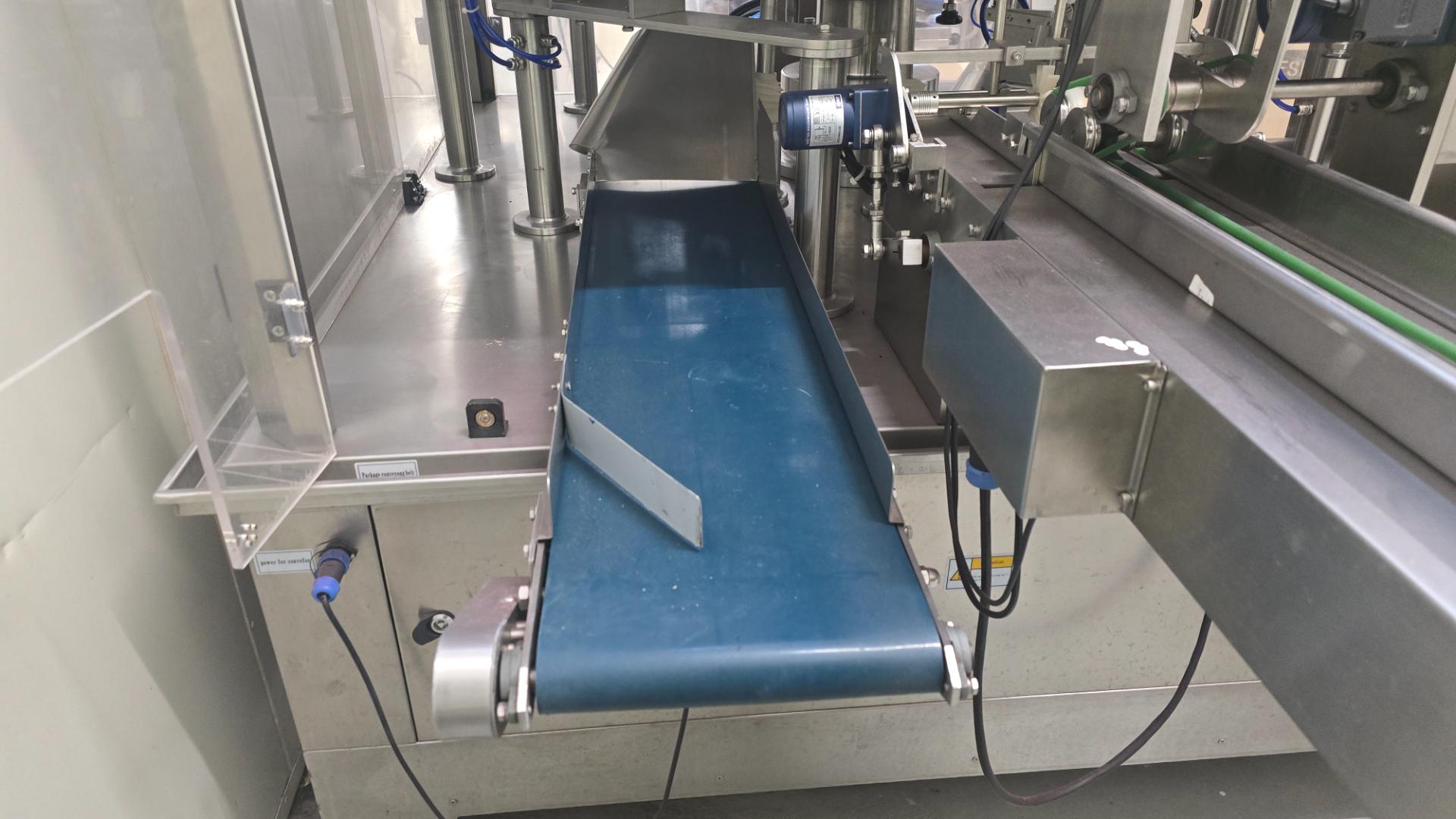

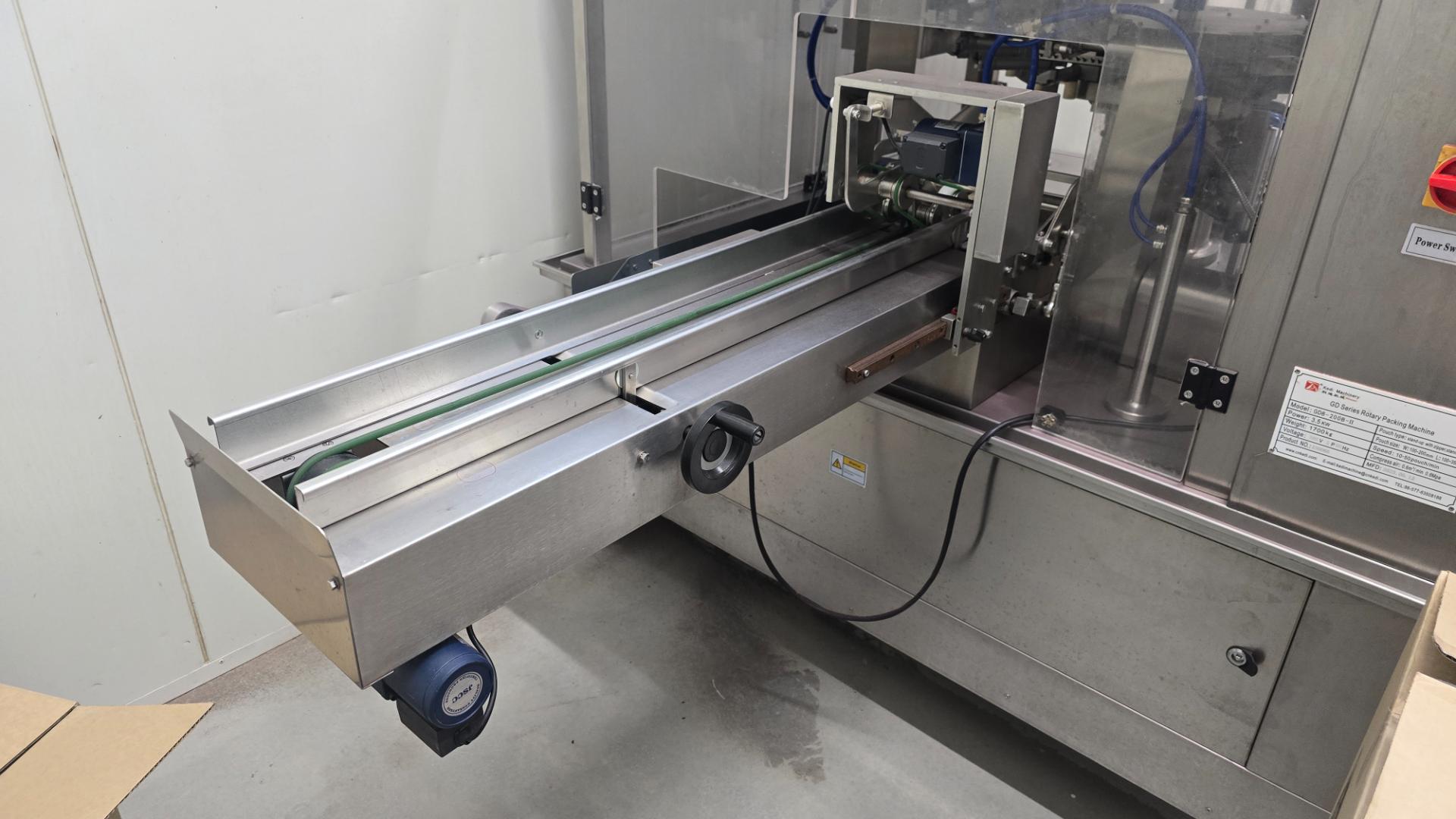

  • Automatic discharge conveyor
  • Safety interlocked guarding
  • Variable speed operation

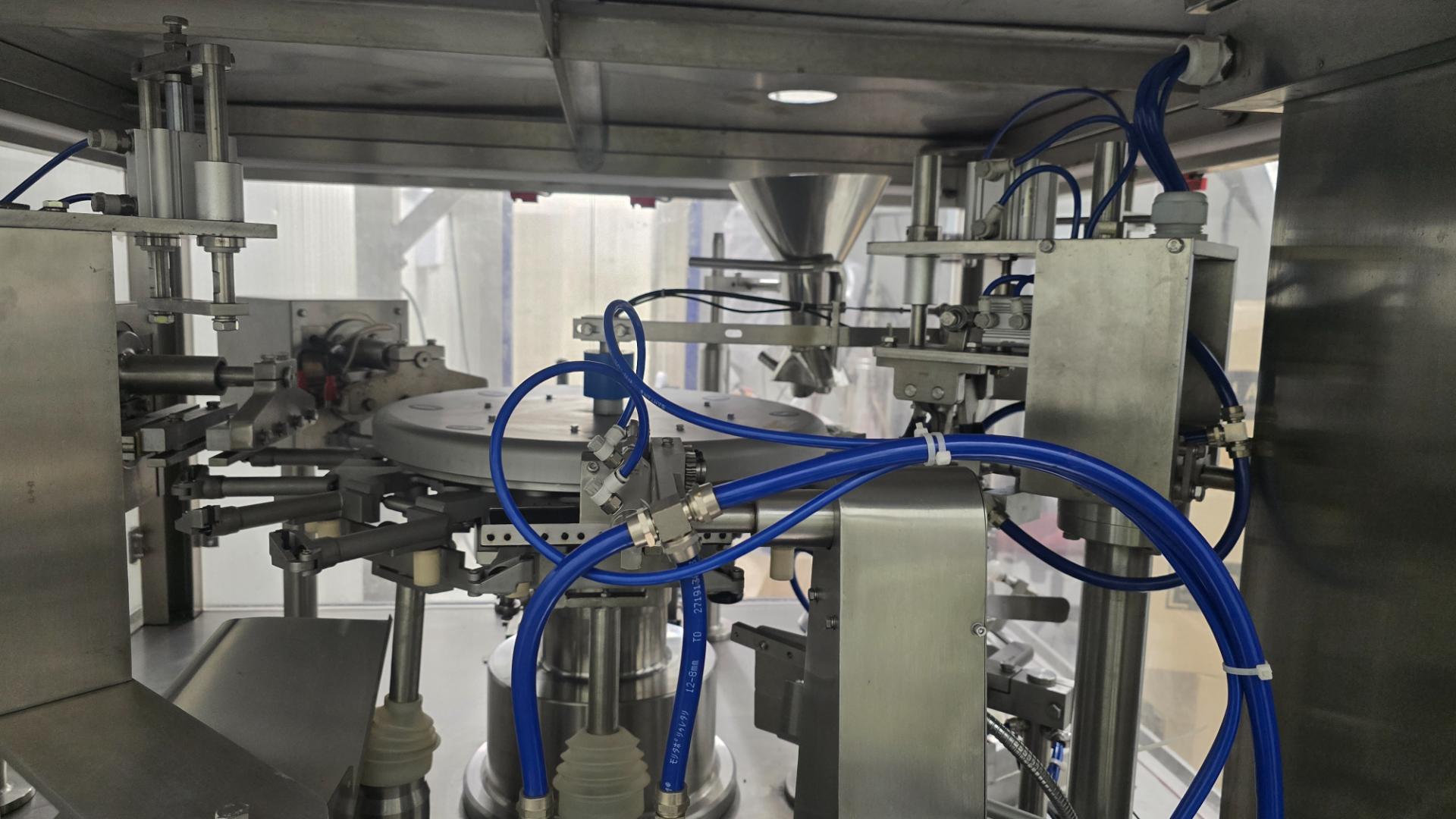

  • Pneumatic actuation throughout
  • Compact footprint with excellent operator access

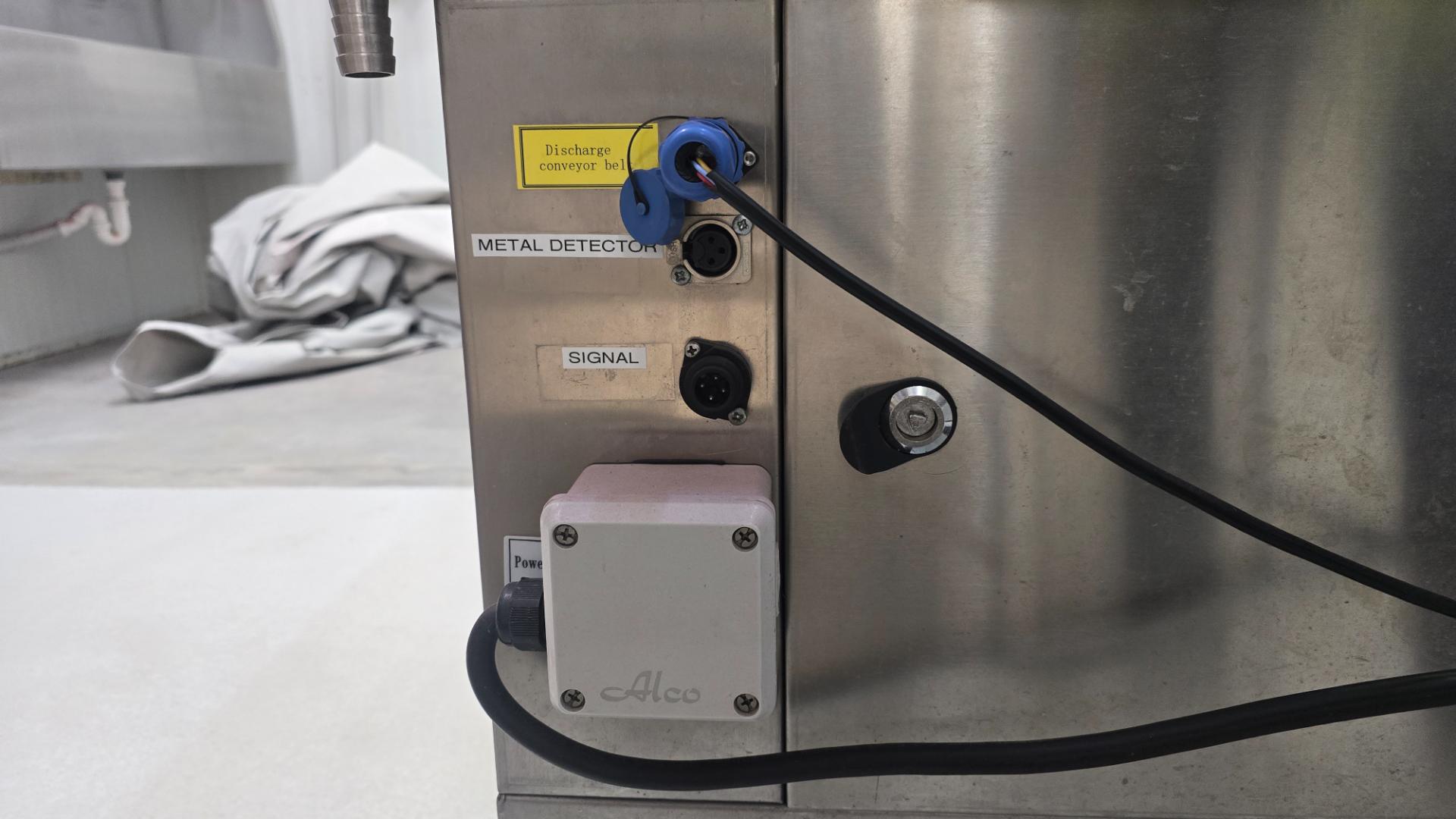

  • Suitable for integration with metal detectors, checkweighers and coding systems

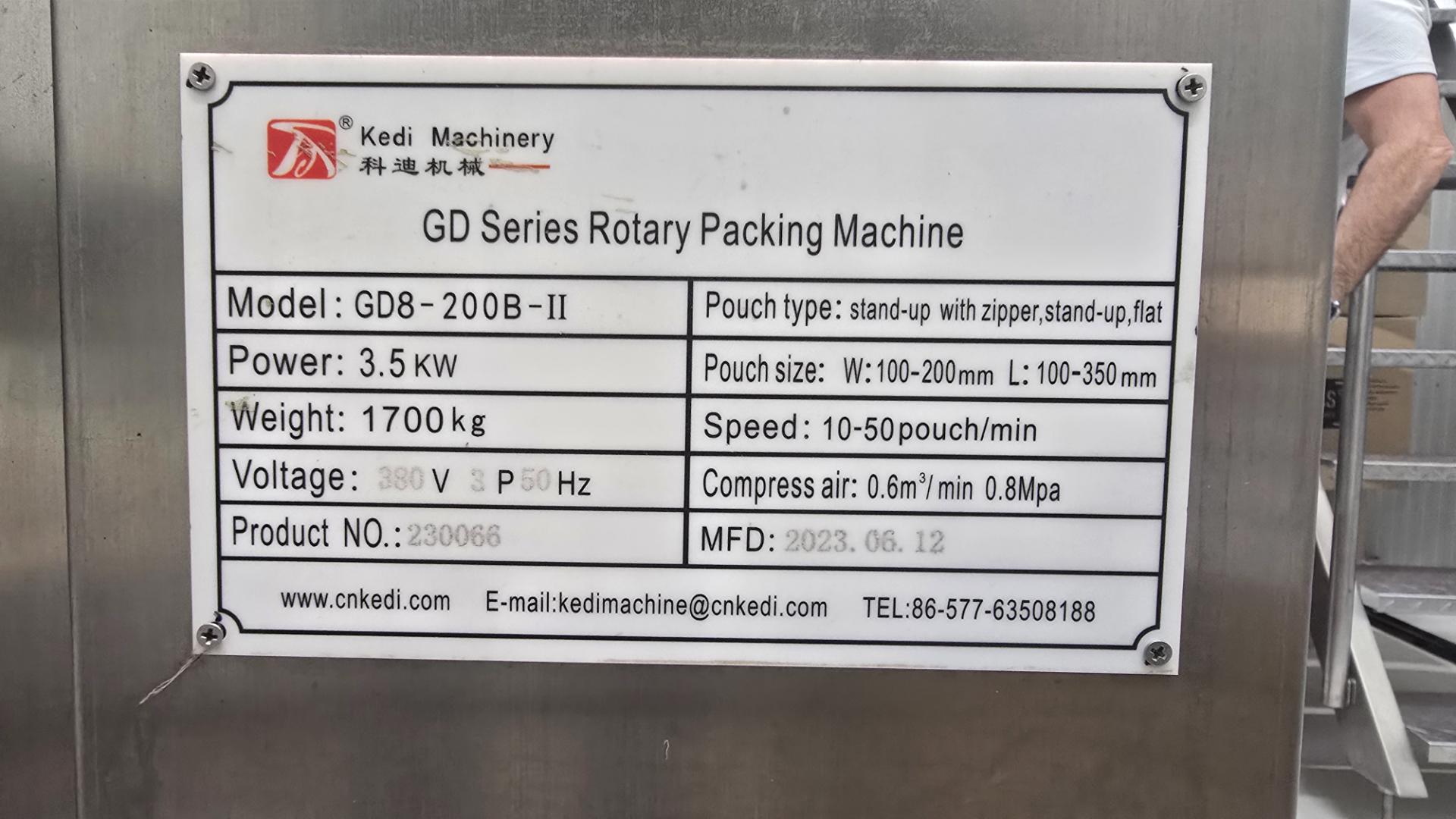

Technical Specifications

  • Manufacturer: Kedi Machinery
  • Model: GD8-200B-II
  • Machine Type: Automatic Rotary Premade Pouch Packing Machine
  • Year of Manufacture: 2023
  • Product No.: 230066
  • Power: 3.5 kW
  • Electrical Supply: 380 V, 3 Phase, 50 Hz
  • Compressed Air: 0.6 m³/min @ 0.8 MPa
  • Machine Weight: Approx. 1,700 kg
  • Packing Speed: 10–50 pouches per minute (product dependent)
  • Pouch Width: 100–200 mm
  • ouch Length: 100–350 mm
  • Pouch Types:
  - Stand-up pouches - Stand-up zipper pouches - Flat pouches
