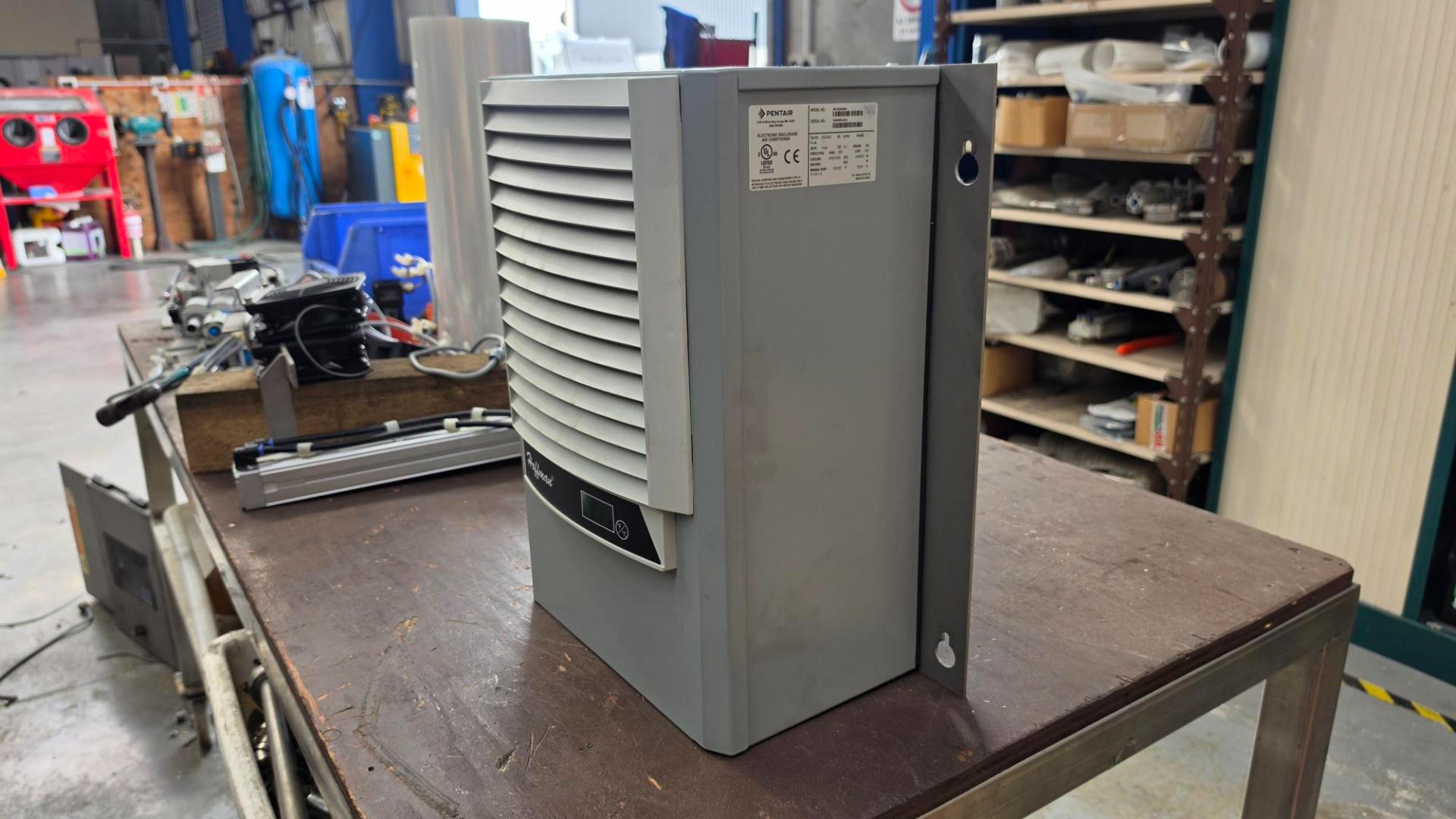

Electronic Enclosure Air Conditioner – 230V

195352 - 1

Request a Quote

Specifications

Description

Key Features

  • Pentair / Hoffman industrial enclosure air conditioner
  • Closed-loop enclosure cooling
  • Compact panel-mount design

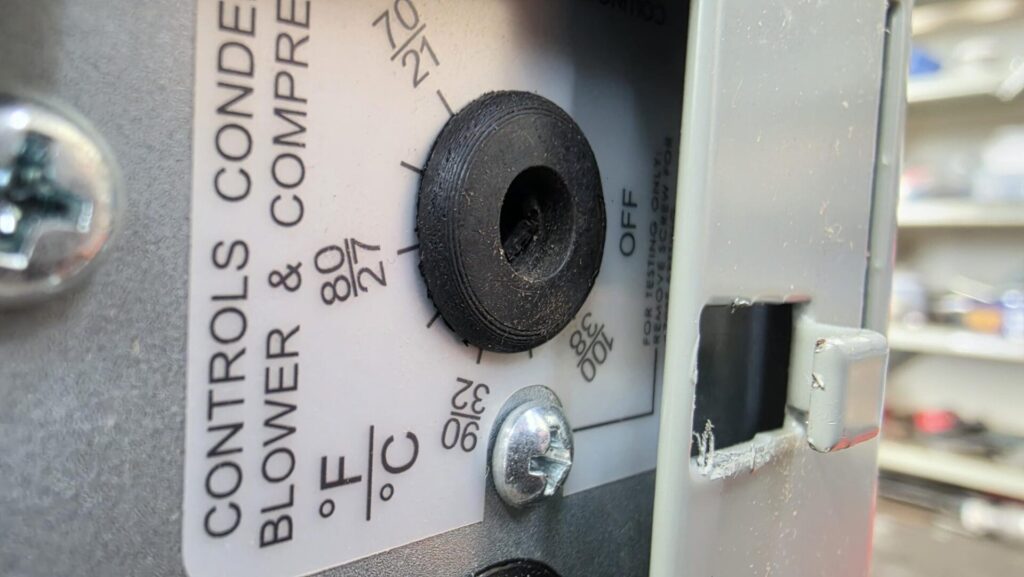

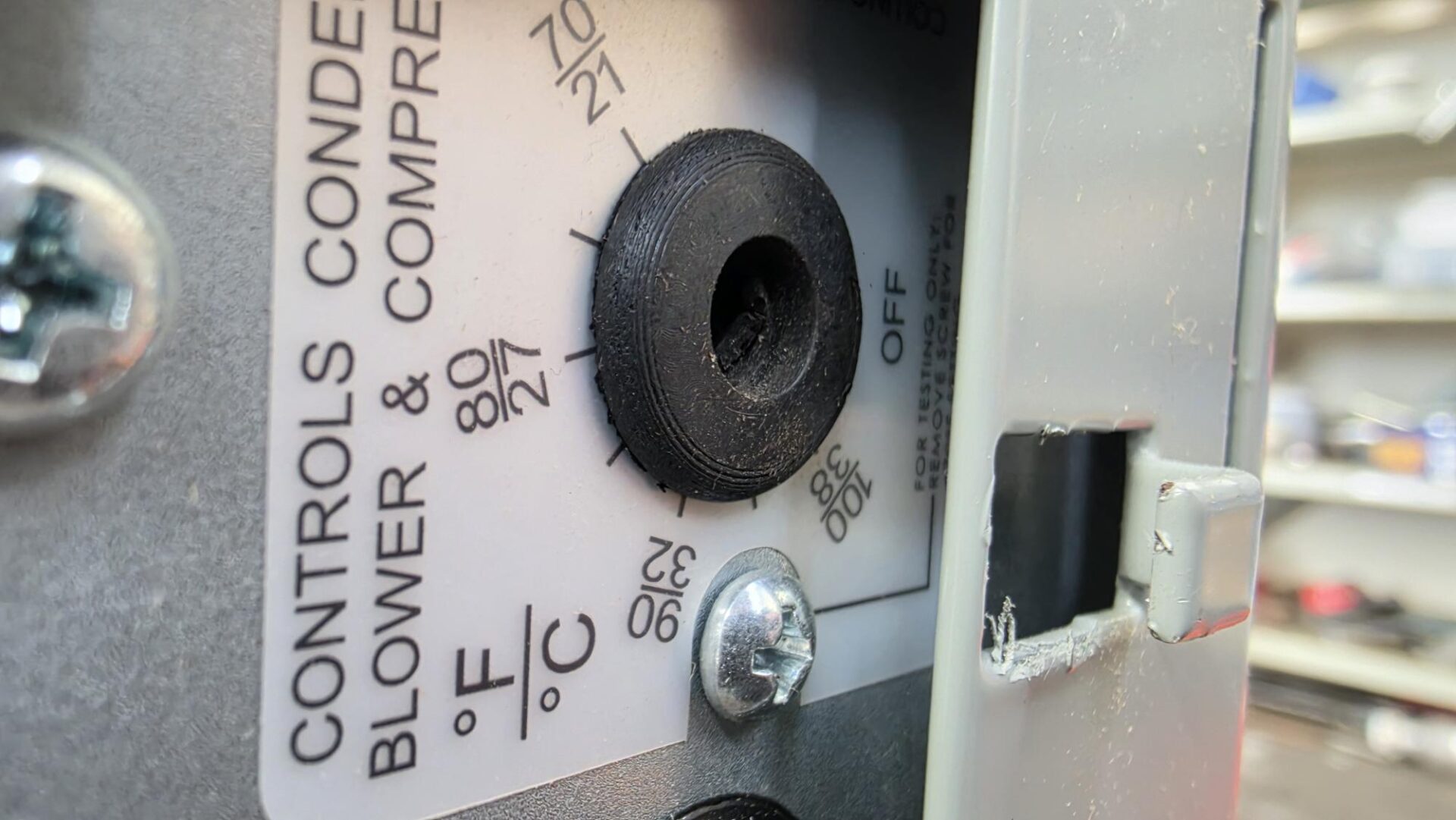

  • Adjustable temperature control

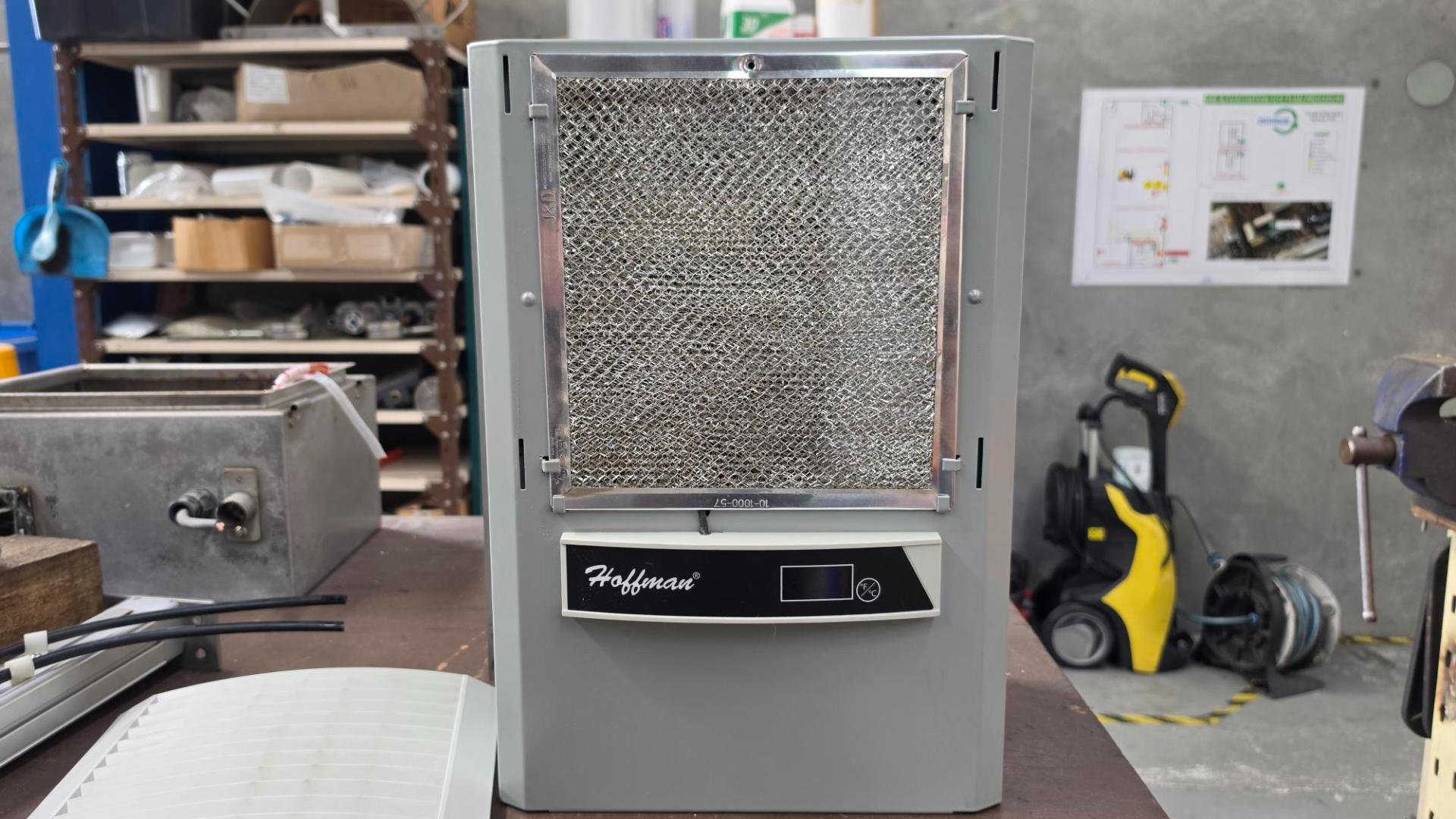

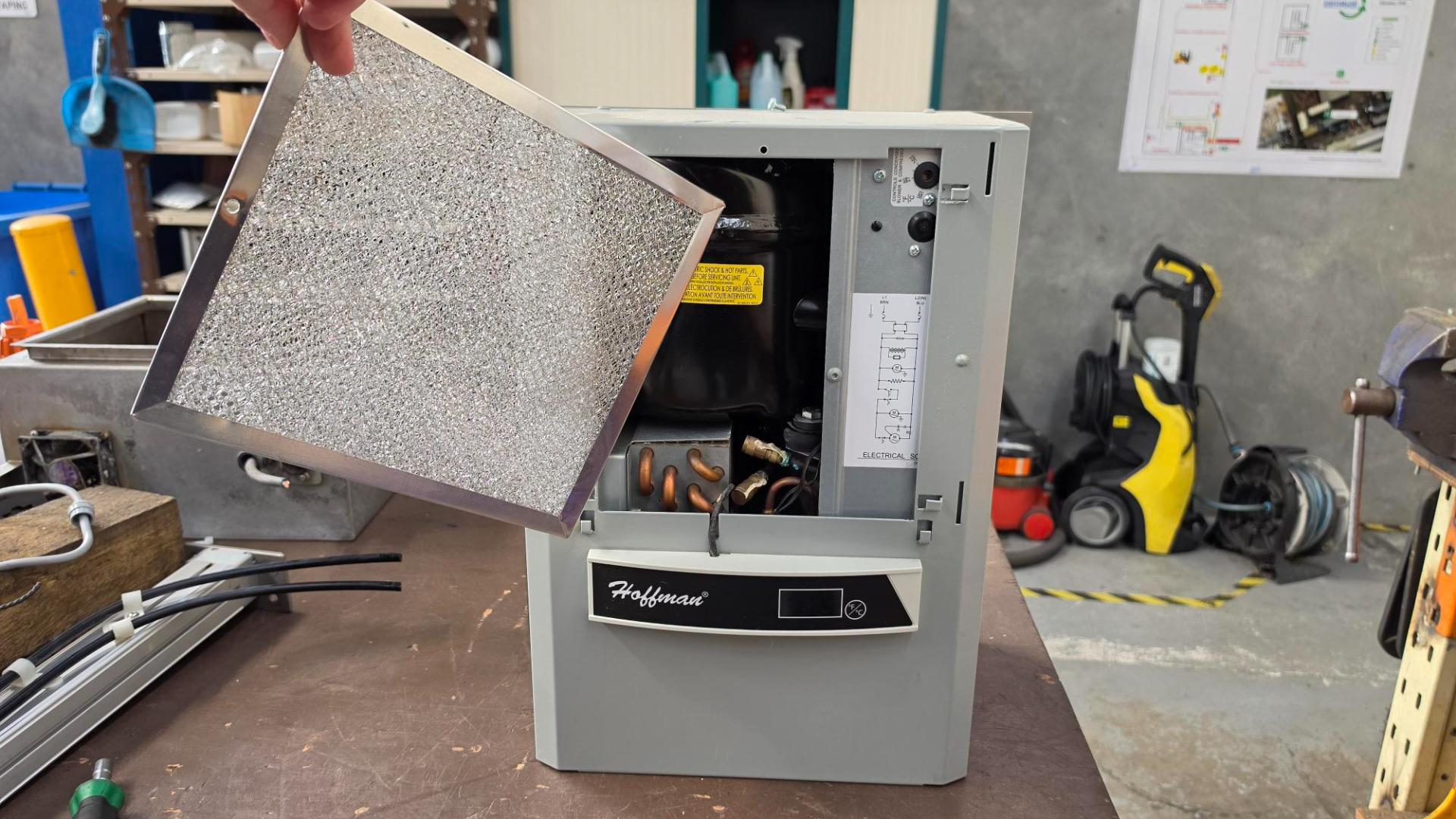

  • Removable and serviceable air filter

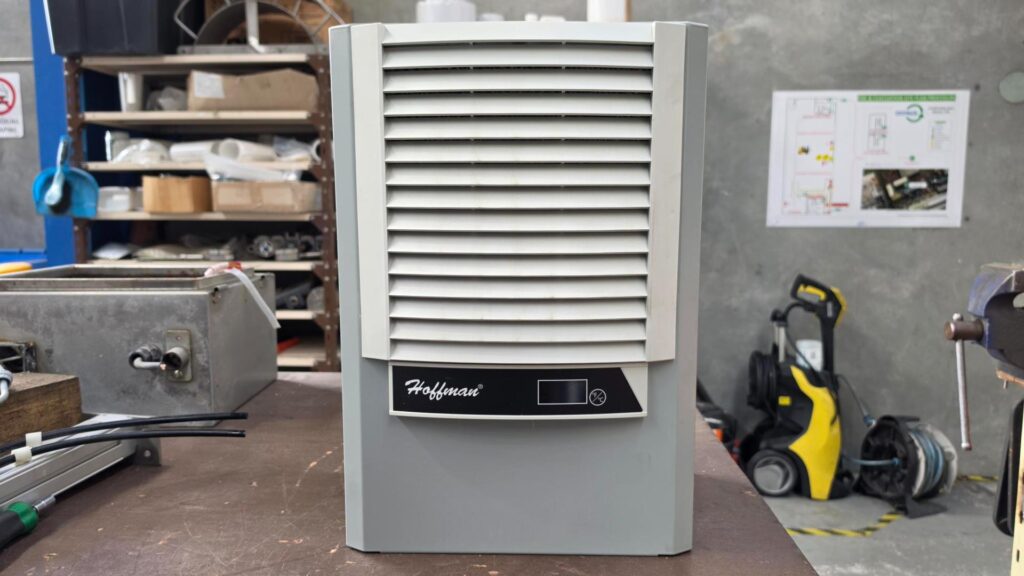

  • Front ventilation grille
  • Integrated condenser and evaporator fans
  • Single-phase 220/230 V operation
  • Type 12 special-purpose air conditioner
  • UL Listed and CE marked
  • Designed specifically for electronic enclosure cooling

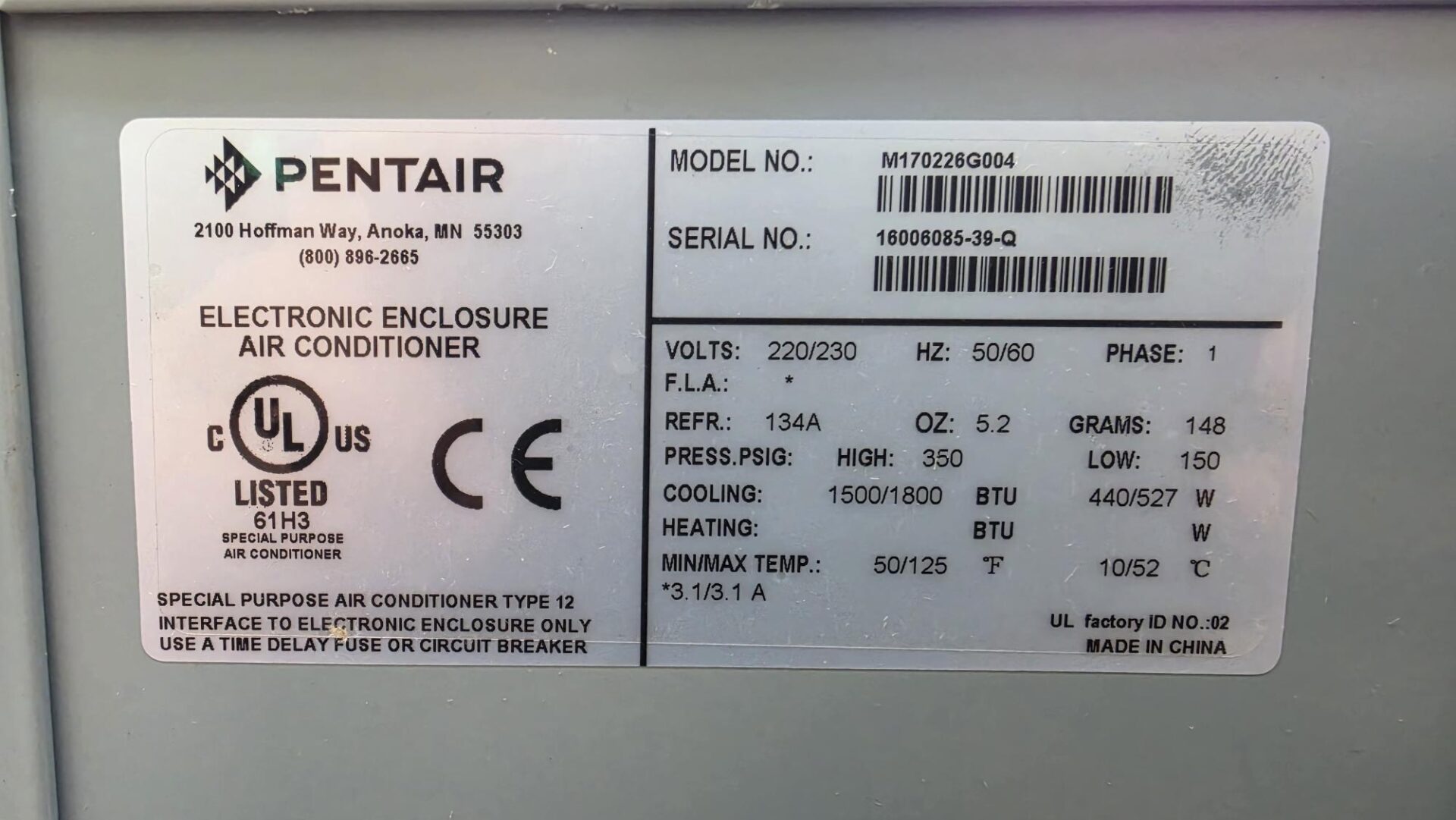

Technical Specifications

  • Manufacturer: Pentair / Hoffman
  • Model: M170226G004
  • Serial number: 16006085-39-Q
  • Equipment type: Electronic enclosure air conditioner
  • Supply voltage: 220/230 V AC
  • Frequency: 50/60 Hz
  • Phase: Single phase
  • Cooling capacity: 1500 BTU/hr at 50 Hz / 1800 BTU/hr at 60 Hz
  • Cooling capacity: 440 W at 50 Hz / 527 W at 60 Hz
  • Refrigerant: R134a
  • Refrigerant charge: 5.2 oz / 148 g
  • Maximum high-side pressure: 350 PSIG
  • Maximum low-side pressure: 150 PSIG
  • Operating temperature range: 10–52°C (50–125°F)
  • Enclosure rating: Type 12
  • Approvals: UL Listed / CE marked

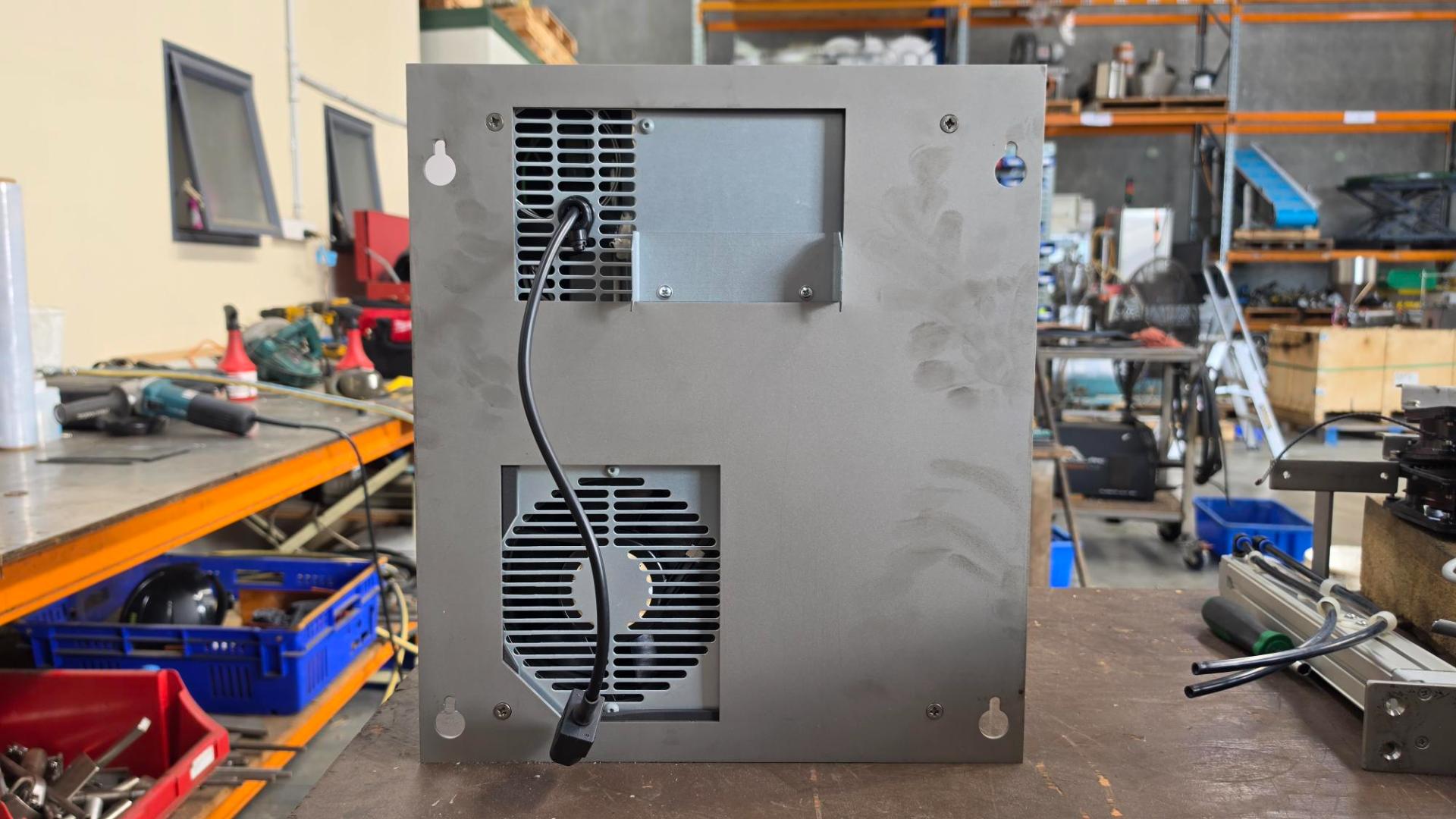

  • Mounting: Electronic enclosure interface / panel mount
