Doypack / Standup Pouch – 360

Velteko - 3

Request a Quote

Contact Us

or Call +64 (0) 9 263 0578

Specifications

  • Condition: New
1 / 1

Description

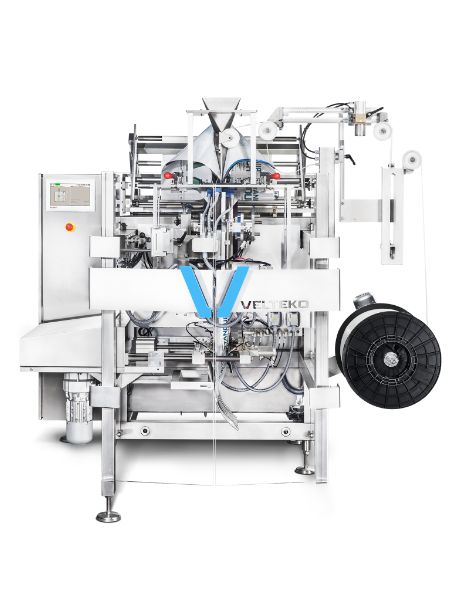

VELTEKO engineered the DOYPACK-360 to achieve the leading price-performance ratio and compact machine footprint.

This economical VFFS packaging machine is specially designed for doypack bags from roll stock, including the creation of a zipper and other variants of stand-up pouch bags.

Documents

Download Manual PDF

Key Features

  • 16 variants of DOYPACK bags
  • Up to 60 bags/min.
  • Max. cross seal width of 360 mm

Technical Specifications

  • Operating mode Intermittent
  • Speed 60 bags/min.
  • Max. width of cross seal 360 mm
  • Max. width of packaging material 800 mm
  • Electricity 3 x 400 V / 50 Hz
  • Protection IP54
  • Air pressure 0.6 MPa
  • Dimensions (W x H x D) 2 155 x 2 165 x 2 790 mm
  • Construction material Stainless steel
