Line

Decore & Floretting – Single & Twin Line

HiTec - 1

Request a Quote

Contact Us

or Call +64 (0) 9 263 0578

Specifications

  • Manufacturer: HiTec Foodsystems
  • Model: DCM Series
  • Condition: New
1 / 14

Description

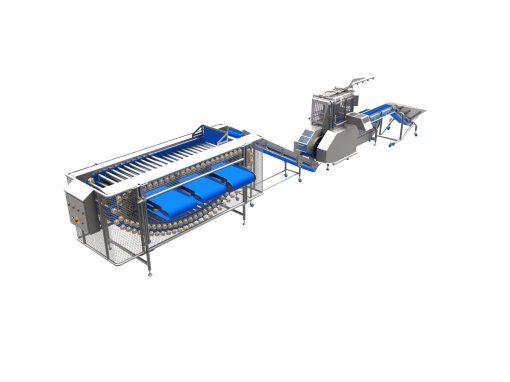

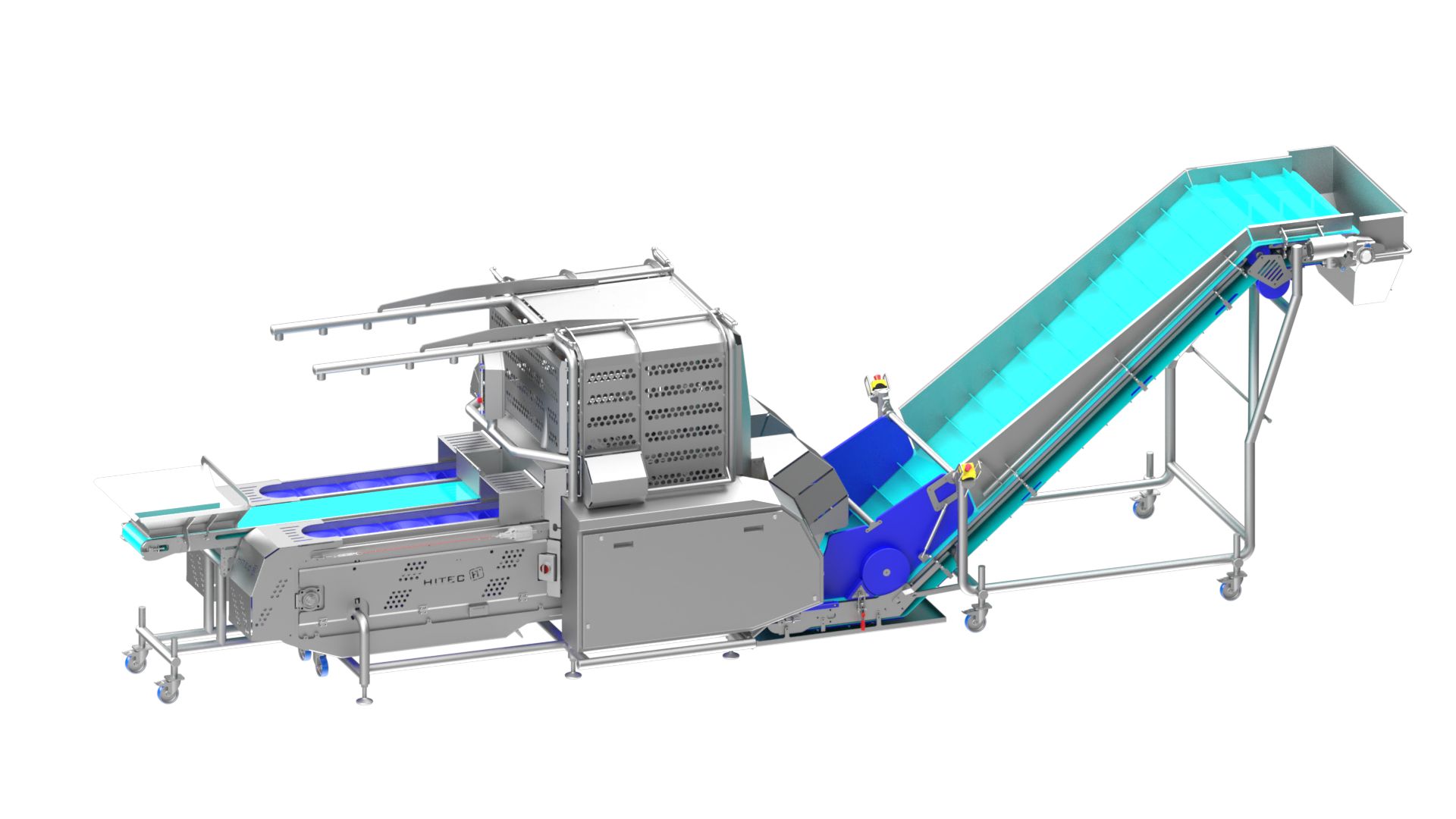

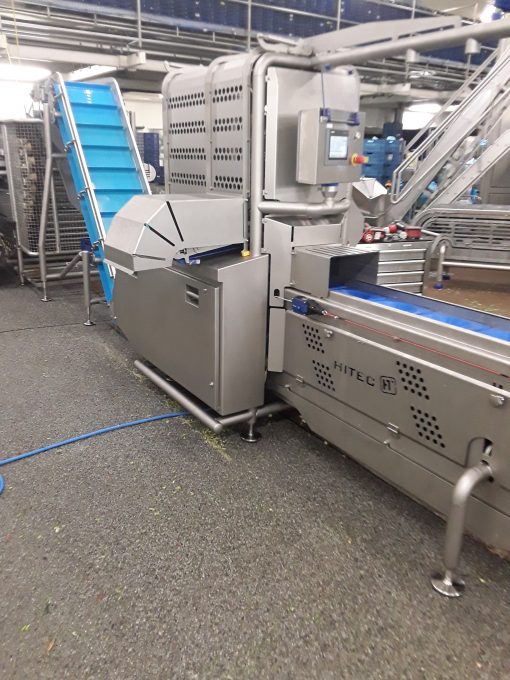

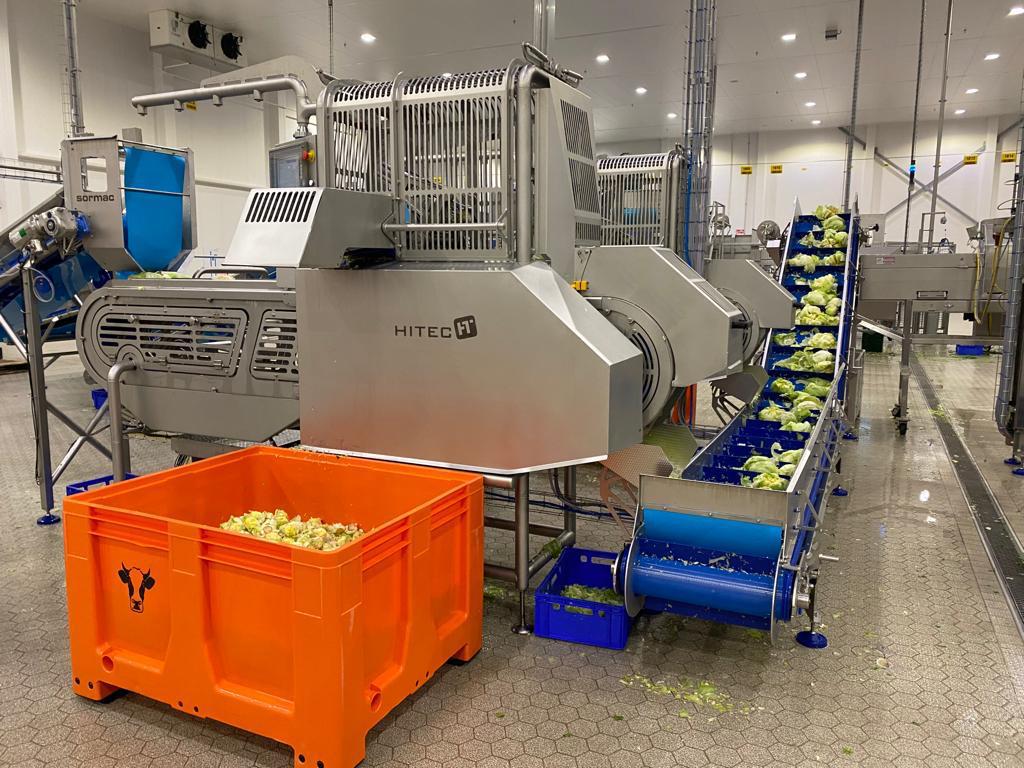

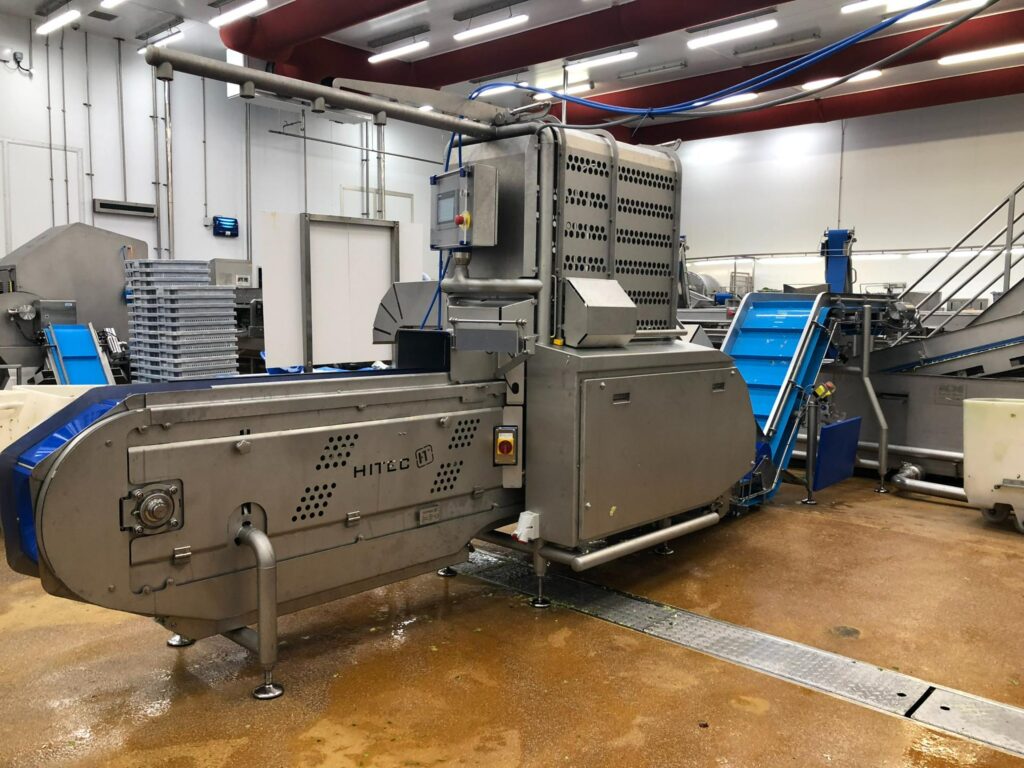

The NEW DESIGN! DCM (Decore & Cutting Machine) 6th Generation Machine series ensures a fast, efficient but gently removal of the core of the product in an automated way. ((Before known as Cabro) up to 120  crops per minute!  (Single Lane 60 cpM)

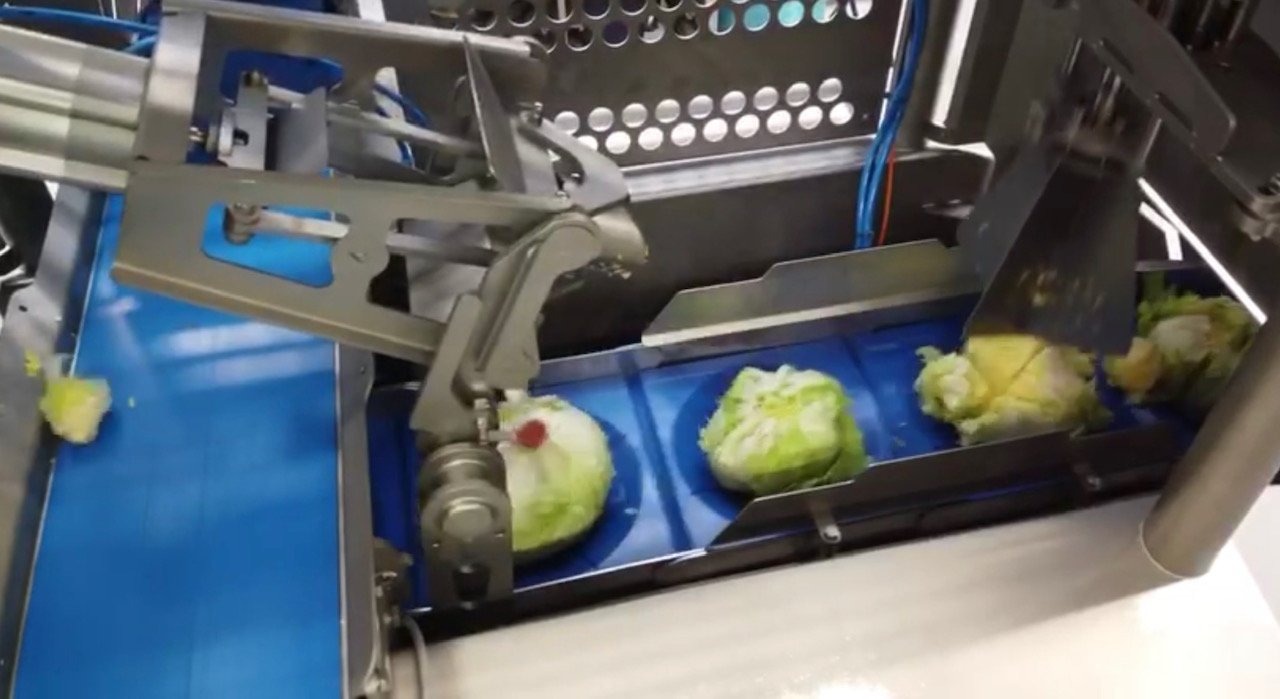

  • Easy de-core products such as Iceberg salad, butterhead salad e.tc, lettuce and leafy vegetables, as well as making florets from Broccoli, Cauliflower.
  • The machine is entirely constructed of stainless steel  and food-grade products,
  • Switching to different products is easily achieved by quick-release systems and program selection at the  Siemens HMI touch screen. The cutting heads are also equipped with a quick-release for easy product switch. Switching heads takes approximately 1 minute.

Key Features

  • The Machine is controlled by Siemens PLC and via intuitive HMI touch-screen which gives clear instructions to the operator to help them with the program changes necessary when switching to other products.
  • The DCM series are easy to clean and easily accessible for maintenance.
  • An additional cutting / dividing unit is placed behind the cutting / de-coring head. This allows the prod uct to be divided into 2,4,6,8 pieces depending on which dividing knife is used
  • This cutting unit is equipped with quick release, allowing different units to be changed quickly and easily when required.
  • Control of the cutting heads and the lane actuator are driven by a dual servo control.

Technical Specifications

  • Adjustable feet.
  • Waste-belt integrated in the machine.
  • Stainless steel control cabinet with HMI touch screen and emergencystop.
  • 2 Cutting heads with quick release for easy product change.
  • 2 Dividing knifes with quick release for easy product change.
  • Round materials are used whenever possibl
